Partiron

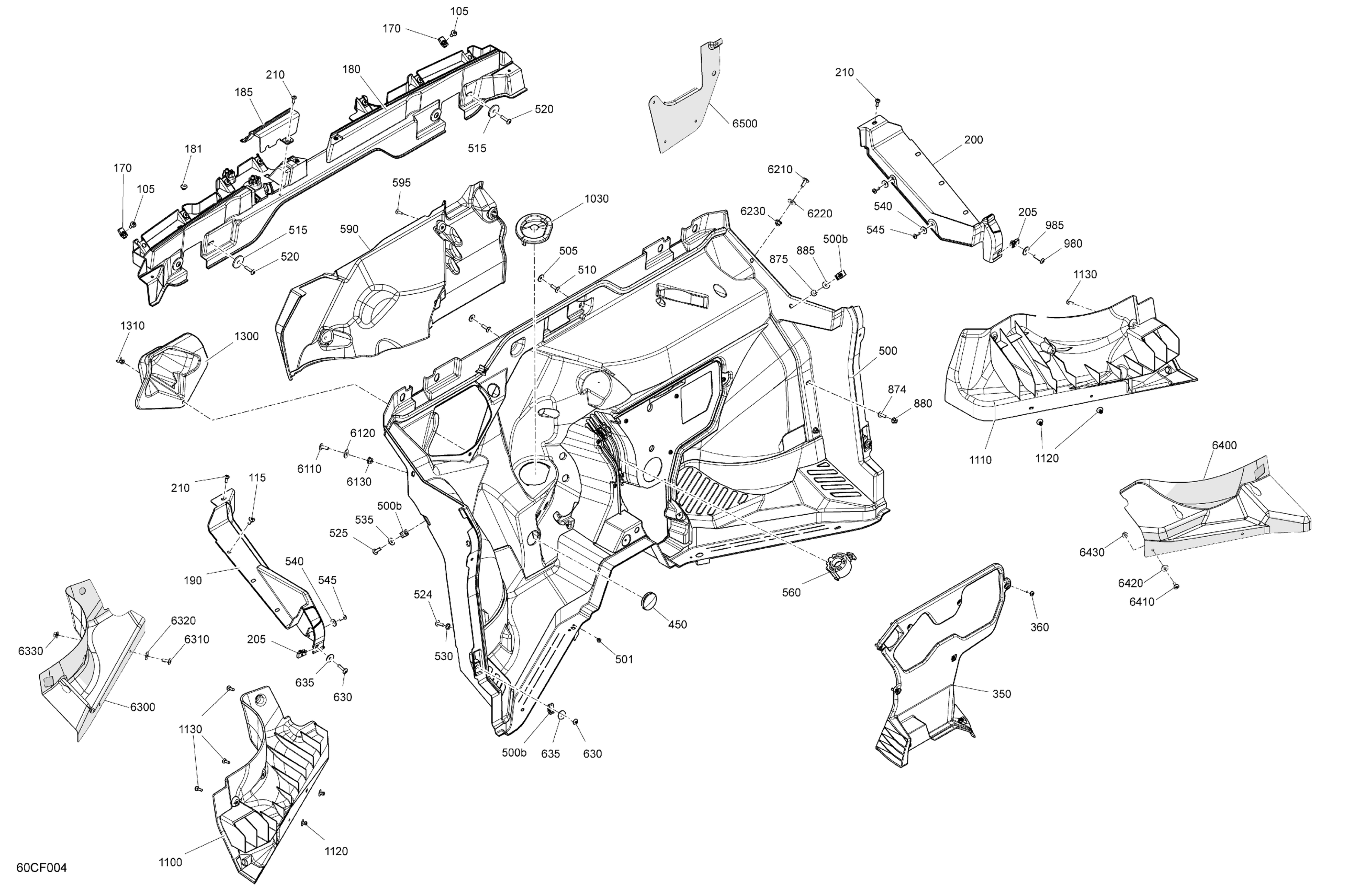

Can-Am Defender 6X6 - HD10 - LTD CAB - 9STA - Dusty Navy Satin - 65" Width, 2026 Cab Interior - Firewall Diagram

#

Description
Price

105

Torx Screw M6 X 20

250000722

$1.54

115

Torx Screw M6 X 20

250000722

$1.54

170

Panel Nut M6 X 1.0

250100198

$1.99

180

Front Upper Deflector

707901082

$49.22

181

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

185

Front Upper Deflector

707900747

$10.37

190

LH Upper Deflector

707900738

$49.22

200

RH Upper Deflector

707900739

$49.22

205

Panel Nut M6 X 1.0

250100198

$1.99

210

Torx Screw K50 X 16

250000720

$1.60

350

Front Panel Trim

707900741

$40.27

360

Torx Screw K50 X 16

250000720

$1.60

450

Rubber Cover

293250242

$5.18

500

Front Seperation Panel Ass'y | Includes 500 to 500b

707901352

$196.99

500b

Panel Nut M6 X 1.0

250100198

$1.99

501

Pop Rivet 3/16 X ,425

293150293

$0.30

505

Stainless Steel Flat Washer

234062670

$2.00

510

Torx Screw M6 X 20

250000722

$1.54

515

Flat Washer M8

250200158

$2.00

520

Torx Truss Screw M6 X 25

250000807

$2.00

524

Torx Truss Screw M6 X 25

250000807

$2.00

525

Torx Screw M6 X 20

250000722

$1.54

530

Hex. Flange Elastic Nut M6

233261494

$1.45

535

Stainless Steel Flat Washer

234062670

$2.00

540

Stainless Steel Flat Washer

234062670

$2.00

545

Torx Screw K50 X 16

250000720

$1.60

560

Split Grommet

707900719

$3.93

590

Front Air Deflector

707900749

$49.22

595

Torx Screw K50 X 16

250000720

$1.60

630

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

635

Flat Washer M6.6 X 22

250200162

$2.19

874

Torx Truss Screw M6 X 25

250000807

$2.00

875

Torx Screw M6 X 20

250000722

$1.54

880

Hex. Flange Elastic Nut M6

233261494

$1.45

885

Stainless Steel Flat Washer

234062670

$2.00

980

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

985

Flat Washer M6.6 X 22

250200162

$2.19

1030

Sterring Column Trim

707900851

$5.40

1100

LH Front Deflector

707900750

$49.22

1110

RH Front Deflector

707900751

$49.22

1120

Black, Pop Rivet 3/16 X ,550

293150292

$0.99

1130

Torx Screw K50 X 16

250000720

$1.60

1300

Exterior Cover

707900389

$10.67

1310

Tuflok Plastic Rivet

293150230

$1.39

6110

Torx Truss Screw M6 X 16

250000721

$1.60

6120

Stainless Steel Flat Washer

234062670

$2.00

6130

Hex. Flange Elastic Nut M6

233261466

$1.91

6210

Torx Truss Screw M6 X 16

250000721

$1.60

6220

Stainless Steel Flat Washer

234062670

$2.00

6230

Hex. Flange Elastic Nut M6

233261466

$1.91

6300

Body Panel Deflector

707901275

$49.22

6310

Torx Truss Screw M6 X 16

250000721

$1.60

6320

Stainless Steel Flat Washer

234062670

$2.00

6330

Hex. Flange Elastic Nut M6

233261466

$1.91

6400

Body Panel Deflector

707901274

$49.22

6410

Torx Truss Screw M6 X 16

250000721

$1.60

6420

Stainless Steel Flat Washer

234062670

$2.00

6430

Hex. Flange Elastic Nut M6

233261466

$1.91

6500

Body Panel Deflector

707901476

$47.73
