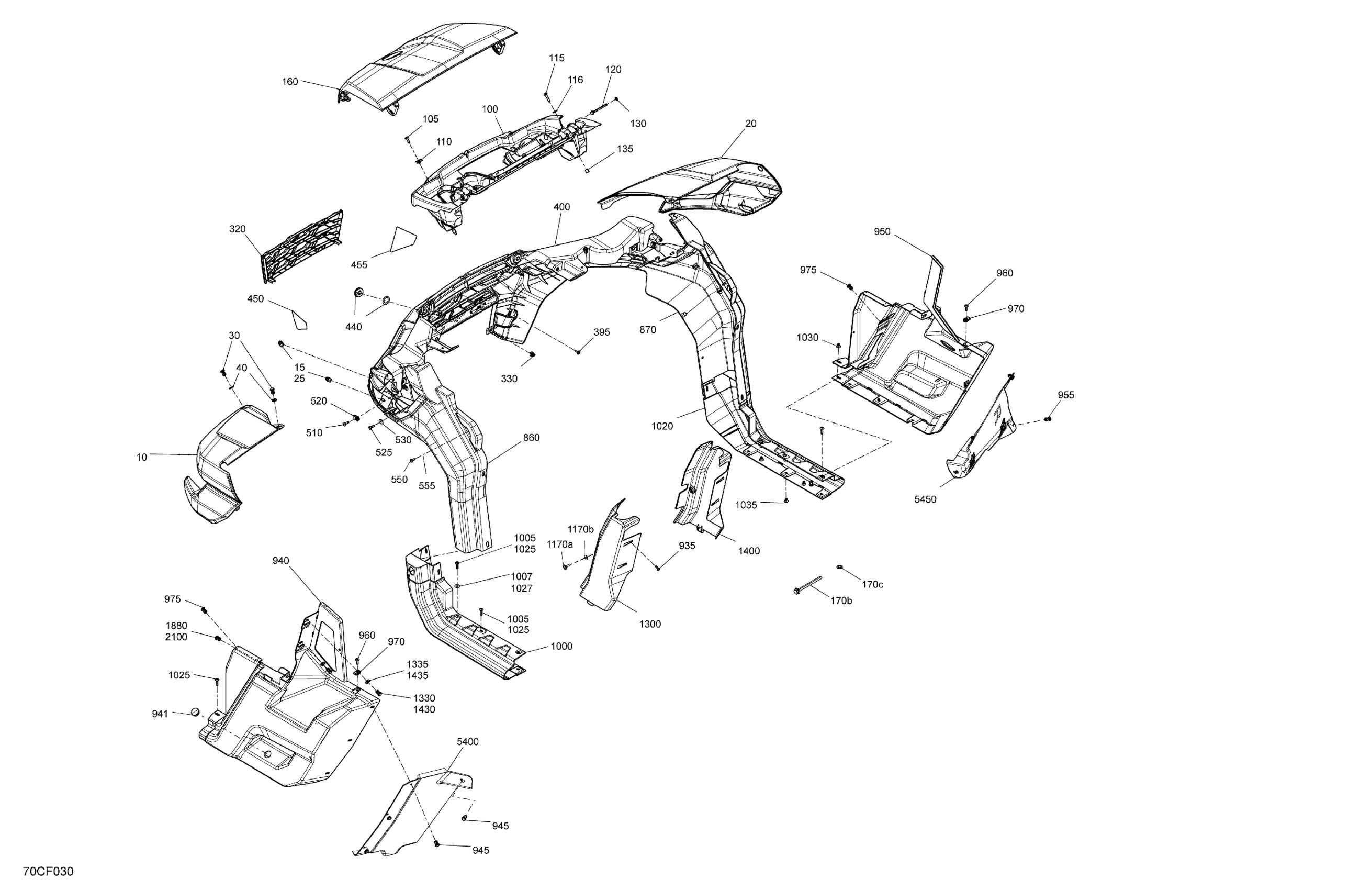

Can-Am Defender 6X6 - HD10 - DPS - 9VTB - Compass Green - 64" Width, 2026 Body - System Diagram

#

Description
Price

10

Compass Green, LH Front Fender

705018836

$184.30

15

Panel Nut M6 X 1.0

250100198

$1.99

20

Compass Green, RH Front Fender

705018837

$184.30

25

Panel Nut M6 X 1.0

250100198

$1.99

30

Tuflok Plastic Rivet

293150230

$1.39

40

Washer

503192494

$3.01

100

Multi Purpose Support

705013766

$39.52

105

Torx Screw M6 X 20

250000722

$1.54

110

Panel Nut M6 X 1.0

250100198

$1.99

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.87

116

Stainless Steel Flat Washer

234062670

$2.00

120

Hex. Flange Screw M6 X 75

207667554

$4.15

130

Push Nut

732610072

$1.97

135

Bushing

293900125

$2.69

160

Compass Green, Front Hood

705018838

$123.85

170b

Hex. Flange Screw M6 X 75

207667554

$4.15

170c

Push Nut

732610072

$1.97

320

Grille

705013590

$23.85

330

Clip

517306478

$1.03

395

Screw M4 X 16

250000725

$3.30

400

Deep Black, Front Fascia

705013591

$206.69

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$10.82

455

RH Front Reflector

704905073

$10.82

510

Torx Screw M6 X 20

250000722

$1.54

520

Panel Nut M6 X 1.0

250100198

$1.99

525

Torx Screw M6 X 20

250000722

$1.54

530

Stainless Steel Flat Washer

234062670

$2.00

550

Torx Screw K50 X 16

250000720

$1.60

555

Flat Washer M5

234051670

$2.00

860

LH Front Lateral Panel

705008152

$55.94

870

RH Front Lateral Panel

705008153

$55.94

935

Torx Screw K50 X 16

250000720

$1.60

940

Deep Black, LH Rear Body Panel

705013658

$99.22

941

Black, Nylon Cap

414916600

$4.19

945

Tuflok Plastic Rivet

293150230

$1.39

950

Deep Black, RH Rear Body Panel

705013659

$99.22

955

Tuflok Plastic Rivet

293150230

$1.39

960

Torx Screw M6 X 20

250000722

$1.54

970

Panel Nut M6 X 1.0

250100198

$1.99

975

Tuflok Plastic Rivet

293150230

$1.39

1000

Deep Black, LH Central Panel

705019037

$64.15

1005

Torx Truss Screw M6 X 25

250000807

$2.00

1007

Stainless Steel Flat Washer

234062670

$2.00

1020

Deep Black, RH Central Panel

705019038

$67.13

1025

Torx Truss Screw M6 X 25

250000807

$2.00

1027

Stainless Steel Flat Washer

234062670

$2.00

1030

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

1035

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

1300

LH Rear Cage Cover Kit

715003564

$73.85

1330

Tuflok Plastic Rivet

293150230

$1.39

1335

Washer

503192494

$3.01

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$73.85

1430

Tuflok Plastic Rivet

293150230

$1.39

1435

Washer

503192494

$3.01

1880

Tuflok Plastic Rivet

293150230

$1.39

2100

Tuflok Plastic Rivet

293150230

$1.39

5400

LH Rear Deflector

705016336

$46.24

5450

RH Rear Deflector

705016337

$46.24

1170a

Torx Truss Screw M6 X 25

250000807

$2.00

1170b

Stainless Steel Flat Washer

234062670

$2.00
