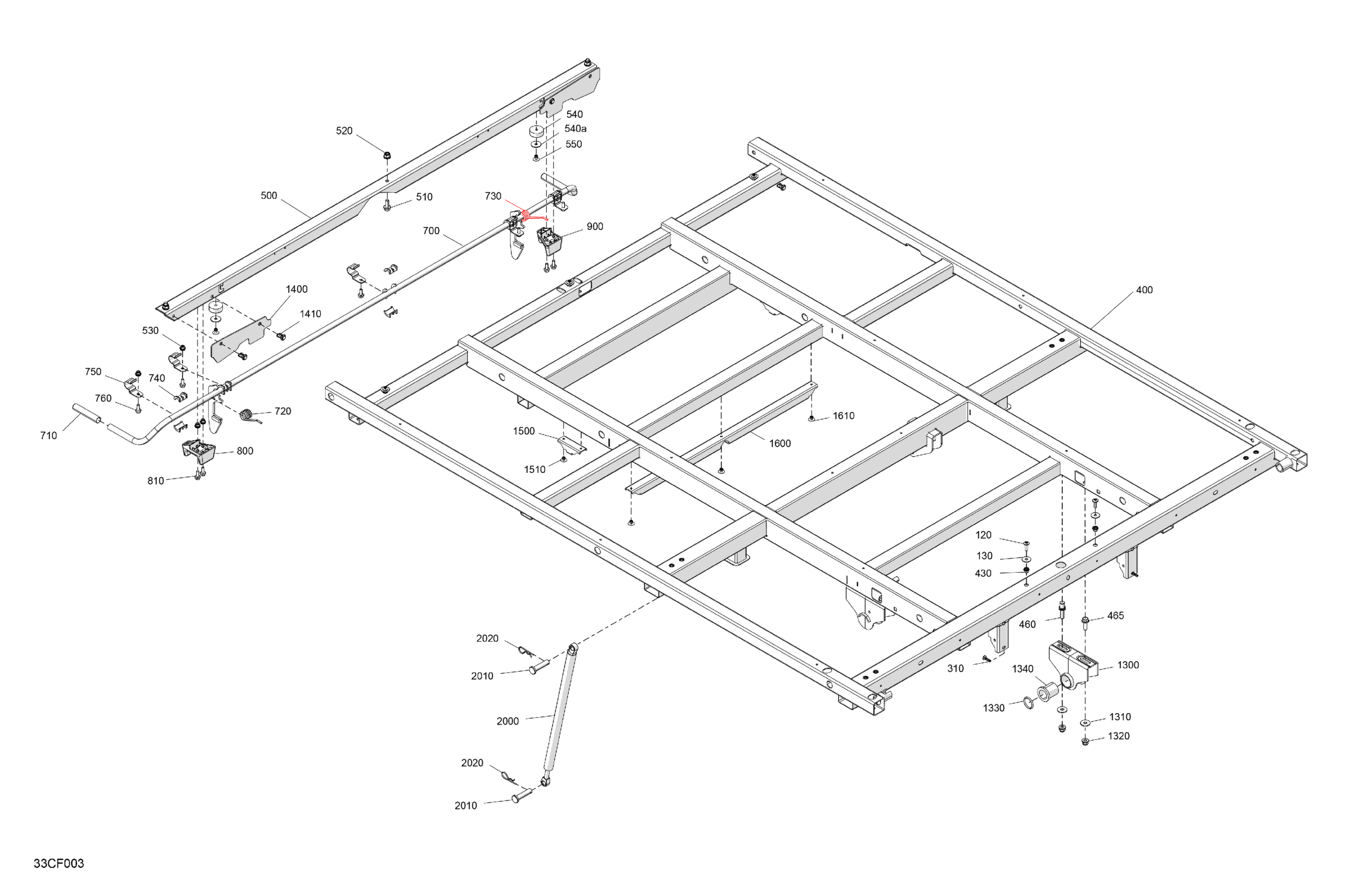

Can-Am Defender 6X6 - HD10 - DPS - 9VTB - Compass Green - 64" Width, 2026 Body - Cargo - Lower Section Diagram

Description

Price

120

Torx Screw M6 X 20

250000722

$1.68

130

Flat Washer M6.6 X 22

250200162

$2.32

310

Torx Screw Truss Head K50X20 T20

250000760

$2.11

400

Open Carrier Frame Kit

715008399

$569.99

430

Insert Half Hex Body M6 x 1.0

250100199

$3.19

460

Protruding Stud M8 X 28

250300645

$3.99

465

Hex. Flange Screw M8 X 25

207682544

$1.35

500

Front Square Tube

708303709

$25.99

510

Hex. Flange Screw M8 X 20

207682046

$1.90

520

Hex. Elastic Flange Nut M8

233281416

$1.48

530

Insert Half Hex Body M6 x 1.0

250100199

$3.19

540

Rubber Stopper | Includes 830 to 830a

708303134

$2.39

540a

Washer

224060251

$0.58

550

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

700

Latch Lever

708303712

$85.99

710

Cap Latch Lever

708300358

$6.59

720

LH Torsion Spring

708305319

$4.79

730

RH Torsion Spring

708305320

$4.79

740

Half Ring

705503570

$7.99

750

Clamp Retainer

708301479

$3.98

760

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

800

LH Stopper

708304411

$3.59

810

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

900

RH Stopper

708304412

$3.59

1300

Female Hinge

708304581

$36.99

1310

Flat Washer 8 mm

234082410

$1.47

1320

Hex. Flange Elastic Nut M8

233281414

$1.47

1330

O-Ring

293300131

$5.29

1340

Hinge Bushing

708303361

$11.99

1400

Deflector

708305100

$12.49

1410

Tuflok Plastic Rivet

293150230

$1.47

1500

Heat Shield Support

708303418

$5.76

1510

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1600

Front Square Tube

708303292

$14.16

1610

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

2000

Shock Absorber

708302889

$142.99

2010

Pin Clevis

250400098

$5.99

2020

Hair Pin

414575600

$1.89
