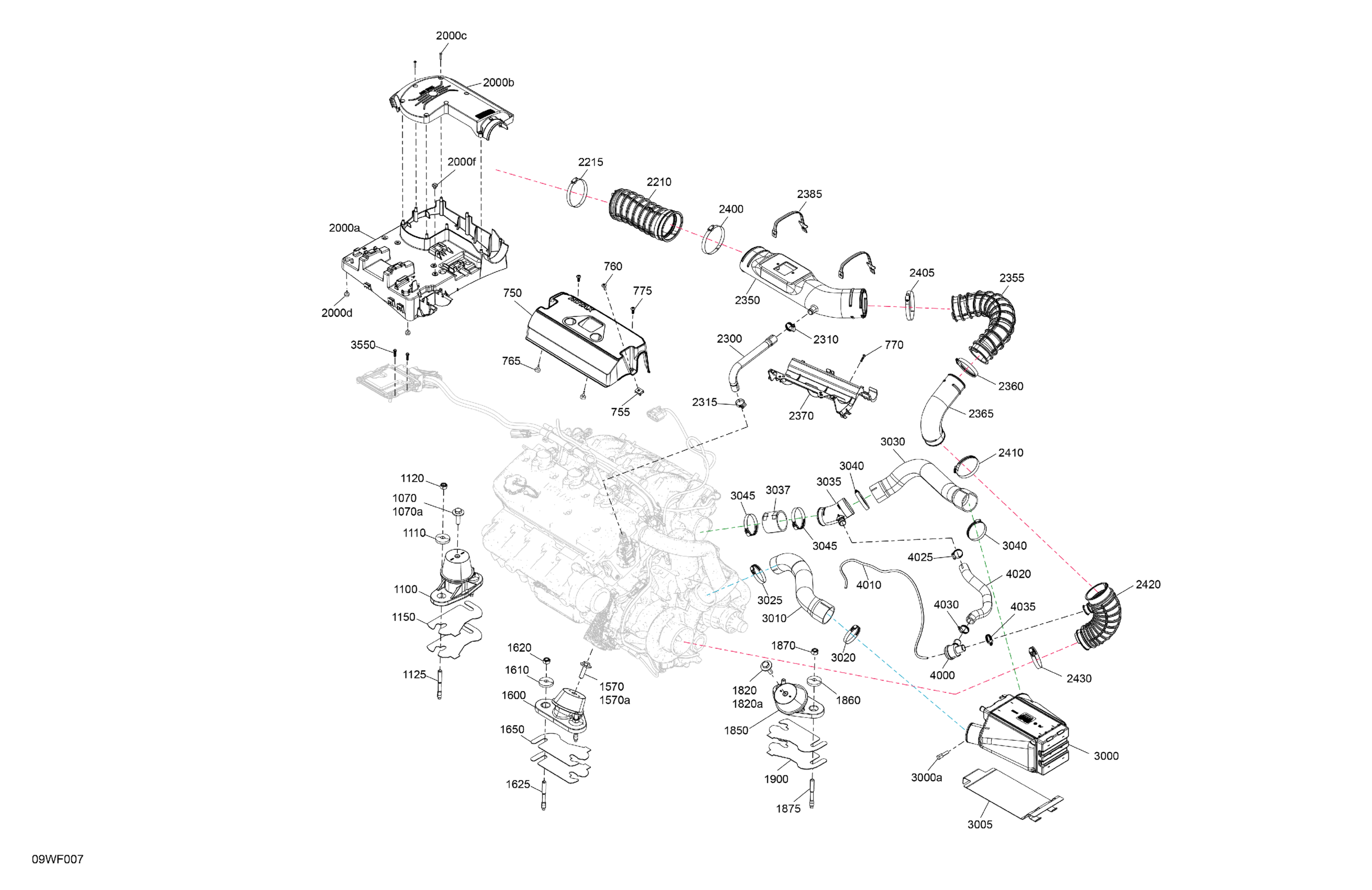

Sea-doo CRUISE 21 - 300 - 46TA - Dusty Navy - Trailer Galv - CAT-1-30-101 - 2026 ENGINE - System Diagram

#

Description
Price

750

Engine Cover

423465184

$115.35

755

Panel Nut M6 X 1

420942108

$11.48

760

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

765

Rubber Stopper

708000759

$3.61

770

Hex. Flange Screw K50 X 20

241152060

$1.57

775

Screw-Plastite Torx Hd.M6.81X20

250001206

$2.12

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1070a

Hexagonal Screw M8 X 30

250000888

$3.09

1100

Front Engine Support Ass'y

270001215

$77.32

1110

Cone Washer

250200018

$4.64

1120

Hex. Elastic Nut M8 Brass

232581200

$1.29

1125

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1150

Shim 1.3 mm

270000762

$9.04

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1570a

Hexagonal Screw M8 X 30

250000888

$3.09

1600

Lateral Engine Support Ass'y

270001211

$84.47

1610

Cone Washer

250200018

$4.64

1620

Hex. Elastic Nut M8 Brass

232581200

$1.29

1625

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1650

Shim 1.3 mm

270000762

$9.04

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1820a

Hexagonal Screw M8 X 30

250000888

$3.09

1850

Lateral Engine Support Ass'y

270001211

$84.47

1860

Cone Washer

250200018

$4.64

1870

Hex. Elastic Nut M8 Brass

232581200

$1.29

1875

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1900

Shim 1.3 mm

270000762

$9.04

2000a

Lower Molded Air Intake Silencer Support

275501214

Unavailable

2000b

Upper Molded Air Intake Silencer Support

275501233

Unavailable

2000c

Plastite Torx Screw #10 X 7/8"

250000207

$1.64

2000d

Seat Stopper

708003866

$3.61

2000f

Mount Dart

710008294

$1.02

2210

Molded Intake Silencer Duct Out

270001208

$49.97

2215

Gear Clamp

423462193

$12.91

2300

Formed Hose

423465173

$46.12

2310

Gear Clamp

293650284

$3.61

2315

Clamp Gear

293650285

$2.68

2350

Central Intake Duct

270001256

$49.97

2355

Molded Compressor Hose IN

423465414

$73.82

2360

Tridon Gear Clamp

293650244

$7.22

2365

Central Intake Duct

423465150

$49.97

2370

Duct Support

423465185

$18.43

2385

Retaining Strap

423465186

$14.75

2400

Gear Clamp

423462193

$12.91

2405

Gear Clamp

423462193

$12.91

2410

Tridon Gear Clamp

293650244

$7.22

2420

Molded Compressor Hose IN

423465149

$32.28

2430

Tridon Clamp

293650179

$8.81

3000

Intercooler | Includes 3000 to 3000a

423462219

$507.66

3000a

Anode Zinc

271001942

$13.62

3005

Cut Insulating Pad

293830254

$13.52

3010

Formed Compressor Hose Out

273000460

Unavailable

3020

Tridon Gear Clamp

293650244

$7.22

3025

Tridon Clamp

293650179

$8.81

3030

Formed Throttle Body Hose IN

273000459

Unavailable

3035

Intake Duct

273000448

$16.89

3037

Duct Fitting

273000469

$27.66

3040

Tridon Gear Clamp

293650244

$7.22

3045

Tridon Clamp

293650179

$8.81

3550

Flange Torx Screw K40 X 16

250000287

$1.74

4000

Purge Valve

273000453

$212.28

4010

Hose 4,3 Mm ID 3000Mm Long

219704545

Unavailable

4020

Formed Check Valve Hose

423465174

$12.91

4025

Gear Clamp

293650323

$4.60

4030

Gear Clamp

293650323

$4.60

4035

Gear Clamp

293650323

$4.60
