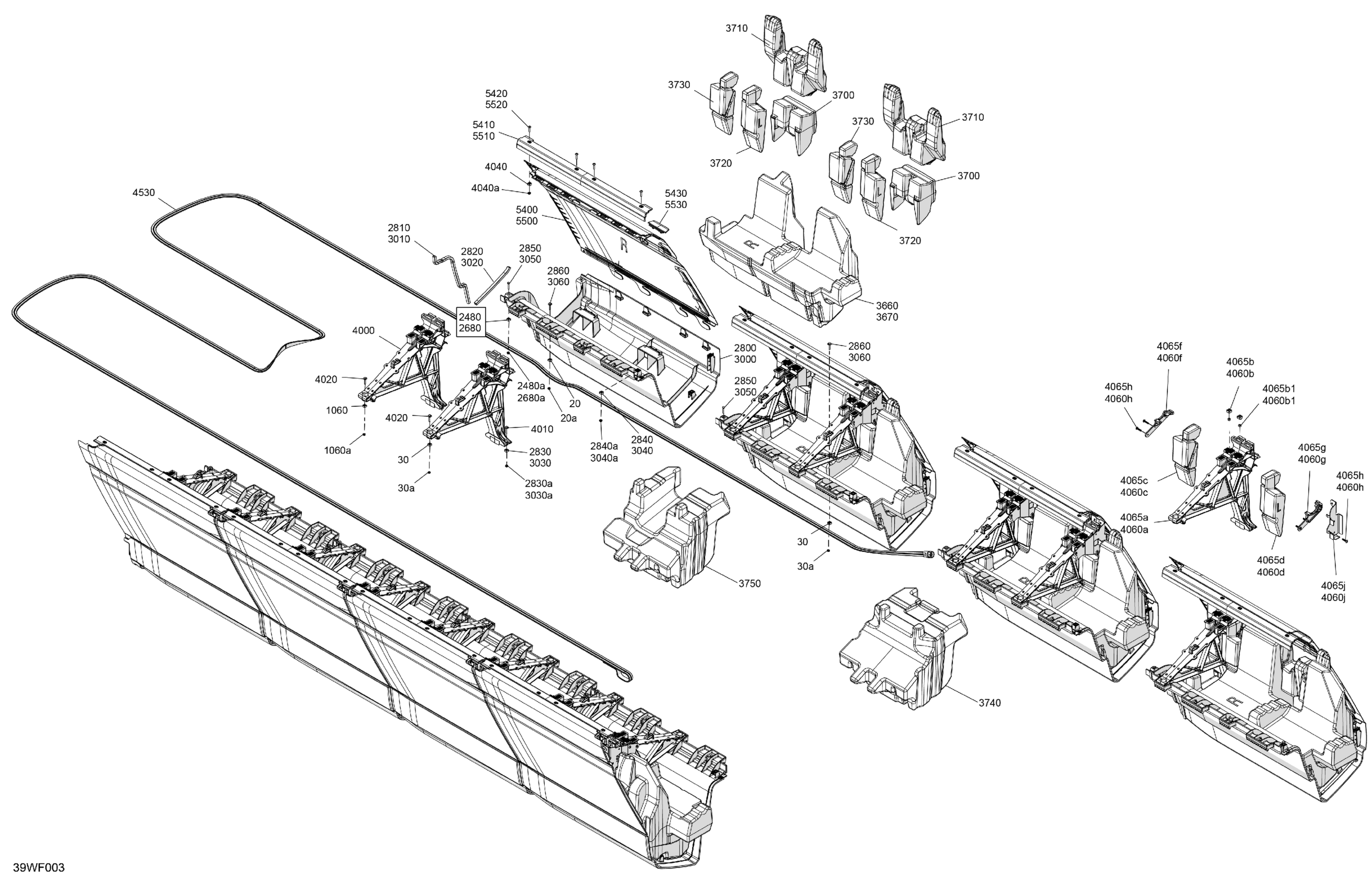

Sea-doo CRUISE 21 - 230 - 45TE - Neo Mint - Trailer paint - CAT-2-375-101 - 2026 HULL - Central Float Deflector Diagram

#

Description
Price

20

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

20a

Elastic Stop Nut M6, Brass

232561200

$4.23

30

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

30a

Elastic Stop Nut M6, Brass

232561200

$4.23

1060

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

1060a

Elastic Stop Nut M6, Brass

232561200

$4.23

2480

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2480a

Elastic Stop Nut M6, Brass

232561200

$4.23

2680

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2680a

Elastic Stop Nut M6, Brass

232561200

$4.23

2800

LH Central Deflector Float

291006185

$299.99

2810

Gasket

292002677

$30.99

2820

Gasket

292002677

$30.99

2830

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2830a

Elastic Stop Nut M6, Brass

232561200

$4.23

2840

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2840a

Elastic Stop Nut M6, Brass

232561200

$4.23

2850

Hex Screw SEMS M6X35, SS

250000969

$2.11

2860

Hex Screw SEMS M6X35, SS

250000969

$2.11

3000

RH Central Deflector Float

291006186

$299.99

3010

Gasket

292002677

$30.99

3020

Gasket

292002677

$30.99

3030

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

3030a

Elastic Stop Nut M6, Brass

232561200

$4.23

3040

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

3040a

Elastic Stop Nut M6, Brass

232561200

$4.23

3050

Hex Screw SEMS M6X35, SS

250000969

$2.11

3060

Hex Screw SEMS M6X35, SS

250000969

$2.11

3660

LH Central Float

292002787

$199.99

3670

RH Central Float

292002788

$199.99

3700

Lower Float Support

291005639

$11.99

3710

Upper Float Support

291005845

$20.99

3720

LH Float Support

291005637

$15.99

3730

RH Float Support

291005636

$15.99

3740

Upper Float

291006073

$76.99

3750

Gas Float

291006059

$76.99

4000

Interlocking Tile Support

291004895

$159.99

4010

Hex Screw SEMS M6X35, SS

250000969

$2.11

4020

Hex Screw SEMS M6X35, SS

250000969

$2.11

4040

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4040a

Elastic Stop Nut M6, Brass

232561200

$4.23

4060a

Interlocking Tile Support

291004895

$159.99

4060b

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4060b1

Elastic Stop Nut M6, Brass

232561200

$4.23

4060c

RH Float Support

291005636

$15.99

4060d

LH Float Support

291005637

$15.99

4060f

Machined Support Reinforcement

291006538

$18.49

4060g

Machined Support Reinforcement

291006539

$18.49

4060h

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

4060j

LH Rail Attachment

291006505

$25.99

4065a

Interlocking Tile Support

291004895

$159.99

4065b

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4065b1

Elastic Stop Nut M6, Brass

232561200

$4.23

4065c

RH Float Support

291005636

$15.99

4065d

LH Float Support

291005637

$15.99

4065f

Machined Support Reinforcement

291006538

$18.49

4065g

Machined Support Reinforcement

291006539

$18.49

4065h

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

4065j

RH Rail Attachment

291006536

$25.99

4530

Rinsing Hose 1366 Cm

291005858

$88.99

5400

Off White, LH Central Panel

291004844

$184.99

5410

Deep Black, Central Panel Trim

291006553

$74.99

5420

Screw Torx Truss Head M6 X 30

250001381

$4.12

5430

Deep Black, Cap Trim

291006554

$11.99

5500

Off White, RH Central Panel

291004846

$184.99

5510

Deep Black, Central Panel Trim

291006553

$74.99

5520

Screw Torx Truss Head M6 X 30

250001381

$4.12

5530

Deep Black, Cap Trim

291006554

$11.99
