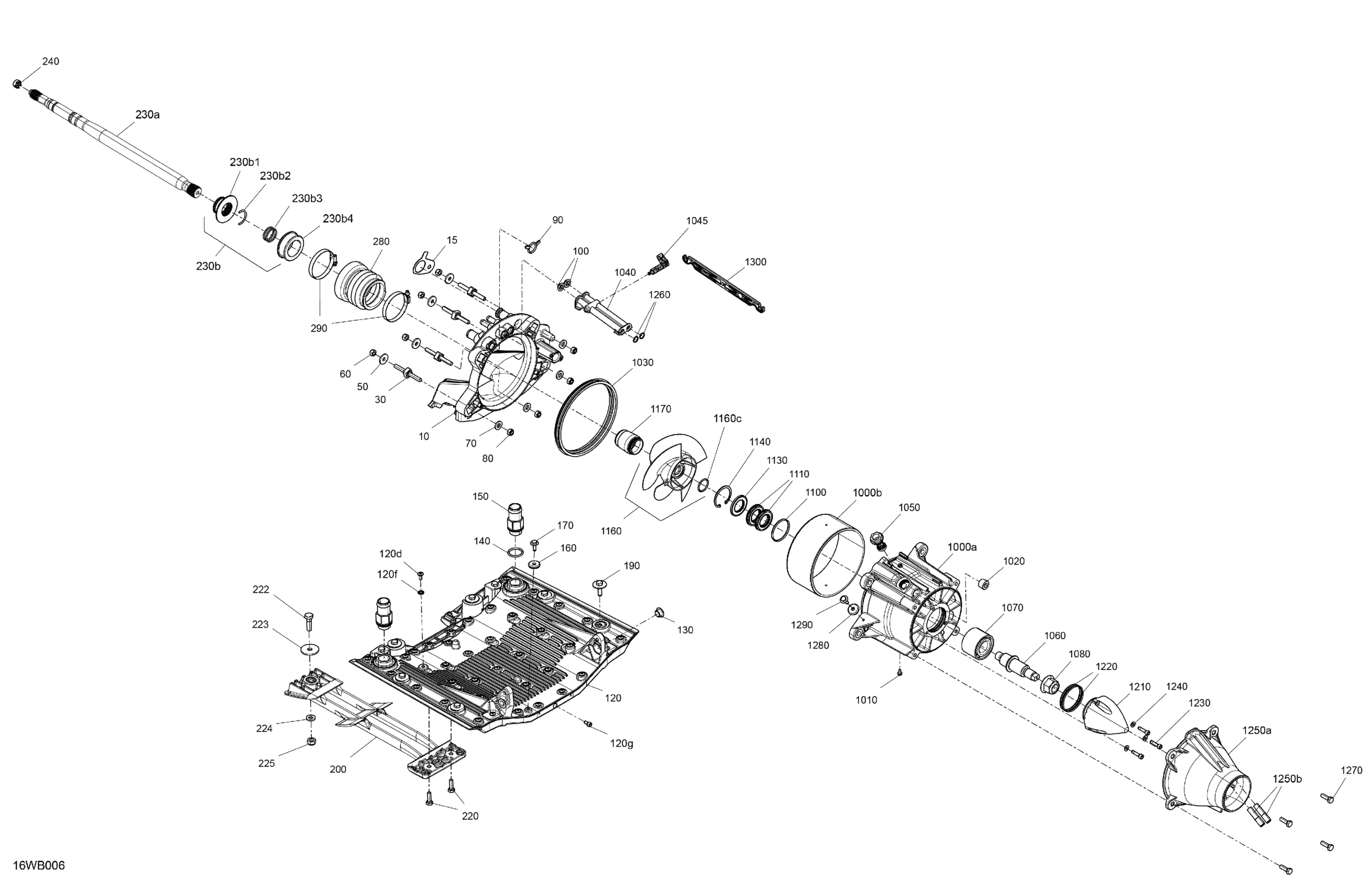

Sea-doo CRUISE 21 - 230 - 44NK - Blue - CAT 2A, 2022 MECHANICS - Propulsion Diagram

#

Description
Price

10

Pump Support

271001976

$51.99

15

Shim 0.3 mm

272000053

$11.49

30

Square Stud

250300046

$14.82

50

Flat Washer

279000336

$11.57

60

Hex. Elastic Nut M8 Brass

232581200

$2.22

70

Flat Washer M8.5 x 18

293050001

$3.07

80

Hex. Elastic Nut M8 Brass

232581200

$2.22

90

Gasket

271002033

$1.67

100

Watertight Seal

293250084

$7.49

120

KIT PLATE_RIDE ASSY | Includes 120 to 120g This part replaces 271001977.

295501264

$312.49

120d

Torx Screw M6 X 14

250000384

$7.51

120f

Sealing Washer

250200114

$4.44

120g

Socket Drain Plug M6 X 12

250500005

$16.49

130

Venturi Bushing

293900007

$5.45

140

O-Ring

293300121

$8.32

150

Strait Fitting

293710124

$17.39

160

Anode Zinc

271001920

$15.99

170

Hex Screw M6 X 20

250000965

$2.11

190

Hex Sems Screw M8 X 30

250000967

$2.85

200

Intake Pump Grate

271002064

$66.99

220

Hex Sems Screw M8 X 25

250000968

$2.85

222

Hexagonal Head Cap Screw M10 X 35

250001159

$1.79

223

Flat Washer

250200194

$5.92

224

Washer Flat M10

250200193

$5.50

225

Elastic Stop Nut M10, Brass

232501200

$2.64

230a

Propeller Shaft

271002224

$269.99

230b

Rotary Ring Kit | Includes 280b to 280b4

295501243

$90.99

230b1

Rotary Ring

271002215

Unavailable

230b2

C-Clip

271001577

$3.27

230b3

O-Ring

293300220

$0.92

230b4

Carbon Ring

271002109

Unavailable

240

Drive Shaft Plug

271002113

$11.58

280

Bellow Ass'y

271002194

$24.49

290

Tridon Clamp

293650179

$11.49

1000a

Impeller Housing

271002018

$294.99

1000b

Wear Ring

267000917

$84.99

1010

Hex. Screw 10-32 X 3/8", Stainless

204100269

$1.14

1020

Black, Plastic Plug

267000469

$7.59

1030

Neoprene Seal

293200087

$12.63

1040

Water Outlet

271002150

$3.80

1045

Rotary Valve

271002148

$12.49

1050

Plug | Includes 370z to 370z1

267000282

$19.49

1060

Impeller Shaft

267000388

$116.49

1070

Angled Bearing

271002182

$82.49

1080

Elastic Flange Nut M20

250100104

$12.66

1100

O-Ring

293300090

$7.20

1110

Seal

271002071

$33.99

1130

Oil Seal

293200089

$19.99

1140

Circlip

293370038

$8.79

1160

Impeller Ass'y | Includes 370m to 370m3

267001085

$497.99

1160c

O-Ring

293300044

$1.05

1170

Guard

271002228

$12.99

1210

Impeller Cover

267000428

$18.49

1220

O-Ring

293300086

$3.59

1230

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

1240

Stainless Flat Washer M6

234061600

$0.33

1250a

Venturi Anodized

271001999

$40.99

1250b

Siphone Tube

271002369

$2.49

1260

O-Ring

293300013

$8.18

1270

Hex Sems Screw M8 X 25

250000968

$2.85

1280

Anode Zinc

271001920

$15.99

1290

Hex Screw M6 X 20

250000965

$2.11

1300

Arm

271002149

$14.99
