Description

Price

750

Engine Cover

270001174

$38.99

755

Panel Nut M6 X 1

420942108

$14.28

760

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

765

Rubber Stopper

708000759

$4.19

770

Hex. Flange Screw K50 X 20

241152060

$1.99

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1100

Engine Support Ass'y

270001096

$97.99

1110

Cone Washer

250200018

$5.61

1120

Hex. Elastic Nut M8 Brass

232581200

$2.22

1125

Stud M8X1.25X70.5 S.GRIP

250001156

$17.56

1150

Shim 1.3 mm

270000762

$12.99

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1600

Engine Support Ass'y

270001081

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hex. Elastic Nut M8 Brass

232581200

$2.22

1625

Stud M8X1.25X70.5 S.GRIP

250001156

$17.56

1650

Shim 1.3 mm

270000762

$12.99

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.85

1850

Engine Support Ass'y

270001081

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hex. Elastic Nut M8 Brass

232581200

$2.22

1875

Stud M8X1.25X70.5 S.GRIP

250001156

$17.56

1900

Shim 1.3 mm

270000762

$12.99

2000a

Airbox Base

273000342

$48.99

2000b

Intake Silencer Cover

273000394

$72.99

2000c

Intake Hose

273000359

$48.99

2000d

Hose Connector

273000375

$73.99

2000f

Air Silencer Hose

273000290

$22.49

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Rubber Stopper

708000759

$4.19

2000j

Flange Torx Screw K40 X 16

250000287

$2.11

2000k

Mount Dart

710008294

$1.04

2300

Formed Hose

270001070

$10.48

2305

Breather Valve

273000234

$14.49

2310

Gear Clamp

293650284

$4.44

2315

Clamp Gear

293650285

$3.27

2350

Central Intake Duct

273000376

$47.99

2400

Tridon Clamp

293650179

$11.49

2410

Tridon Clamp

293650179

$11.49

2420

Molded Hose

273000417

$31.99

2430

Tridon Clamp

293650179

$11.49

3000

Intercooler Ass'y

276000540

$519.49

3000a

Anode Zinc

271001942

$18.76

3010

Formed Hose

273000399

$77.99

3020

Tridon Gear Clamp

293650244

$9.29

3025

Tridon Clamp

293650179

$11.49

3030

Formed Hose

273000400

$134.99

3040

Tridon Gear Clamp

293650244

$9.29

3045

Tridon Clamp

293650179

$11.49

3070

Fuel Tank Strap

293850093

$21.99

3250a

Intercooler Support

270001113

Unavailable

3250b

Intercooler Support

270001114

Unavailable

3250c

Christmas Tree Anchorage

293730113

$1.04

3255

Hex. Screw 10-14 X 7/8”

211000023

$3.59

3275

Foam Support

292002341

$41.49

3550

Hex. Flange Screw K50 X 20

241152060

$1.99

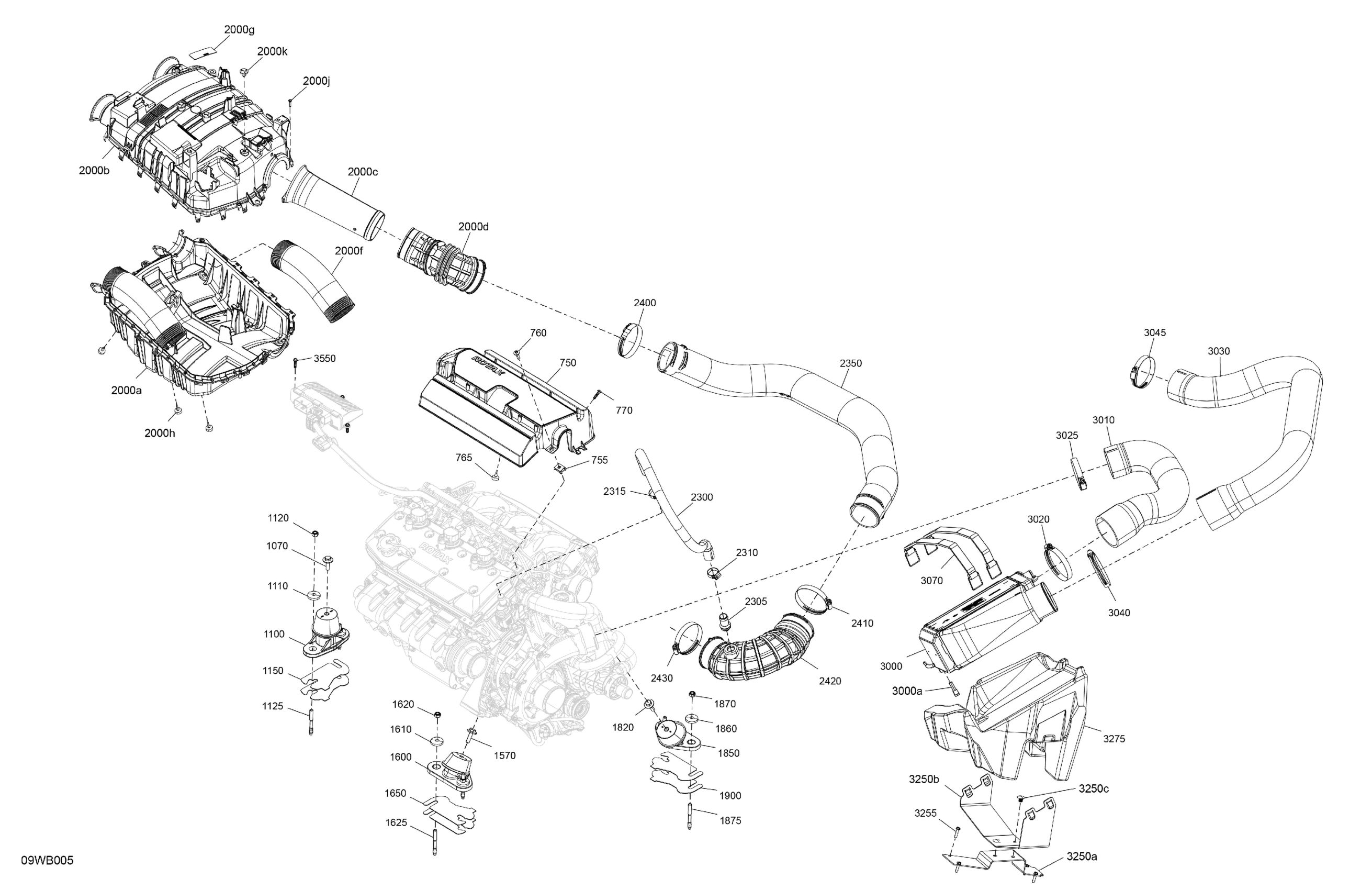

Sea-doo CRUISE 21 - 230 - 44NK - Blue - CAT 2A, 2022 MECHANICS - Engine Diagram

Engine Cover

Panel Nut M6 X 1

Torx Screw M6 X 20, Scotch Grip

Rubber Stopper

Hex. Flange Screw K50 X 20

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Engine Support Ass'y

Cone Washer

Hex. Elastic Nut M8 Brass

Stud M8X1.25X70.5 S.GRIP

Shim 1.3 mm

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Engine Support Ass'y

Cone Washer

Hex. Elastic Nut M8 Brass

Stud M8X1.25X70.5 S.GRIP

Shim 1.3 mm

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

Engine Support Ass'y

Cone Washer

Hex. Elastic Nut M8 Brass

Stud M8X1.25X70.5 S.GRIP

Shim 1.3 mm

Airbox Base

Intake Silencer Cover

Intake Hose

Hose Connector

Air Silencer Hose

Air Silencer Notice Decal

Rubber Stopper

Flange Torx Screw K40 X 16

Mount Dart

Formed Hose

Breather Valve

Gear Clamp

Clamp Gear

Central Intake Duct

Tridon Clamp

Tridon Clamp

Molded Hose

Tridon Clamp

Intercooler Ass'y

Anode Zinc

Formed Hose

Tridon Gear Clamp

Tridon Clamp

Formed Hose

Tridon Gear Clamp

Tridon Clamp

Fuel Tank Strap

Intercooler Support

Intercooler Support

Christmas Tree Anchorage

Hex. Screw 10-14 X 7/8”

Foam Support

Hex. Flange Screw K50 X 20
