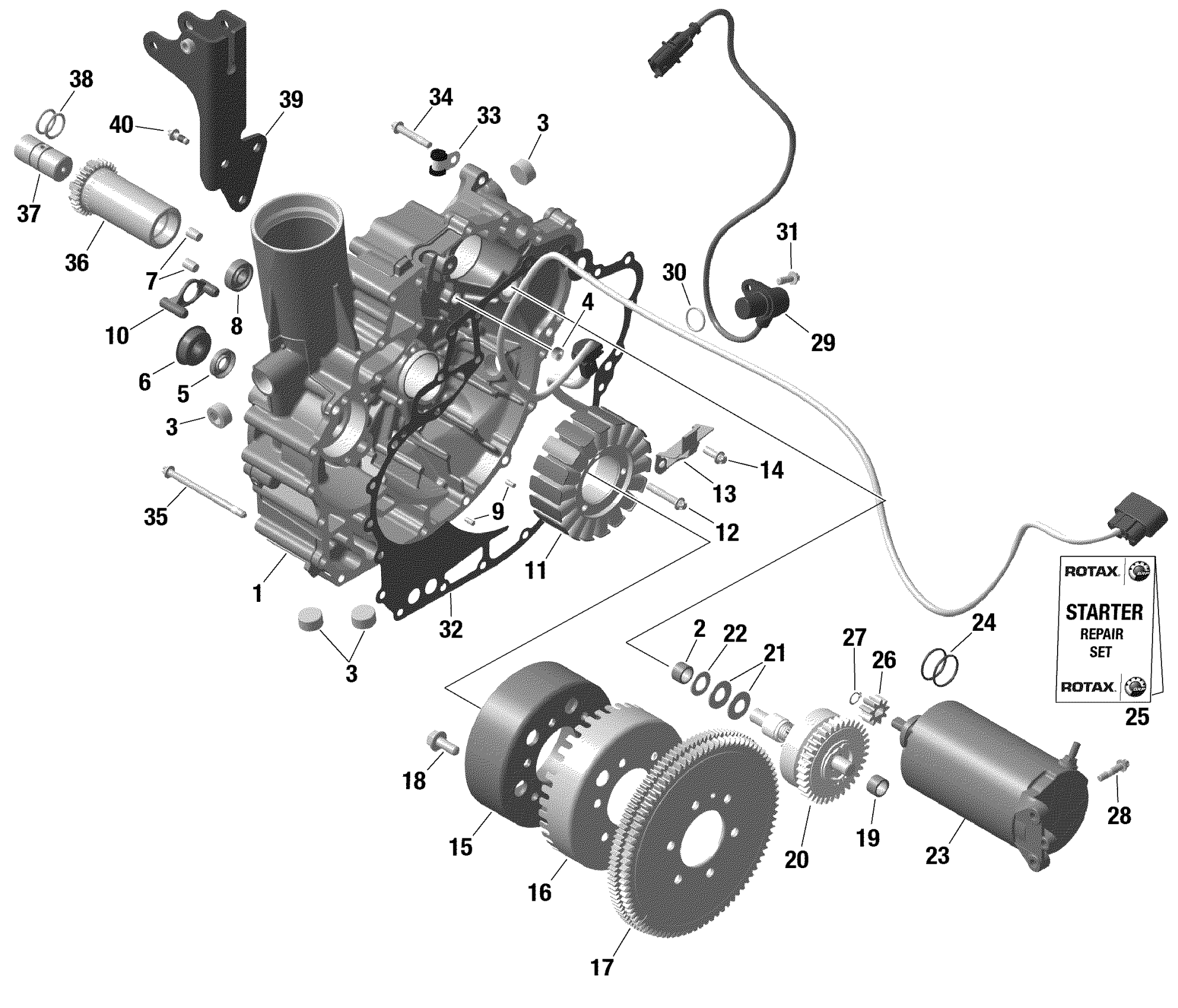

Sea-doo CRUISE 21 - 230 - 44NK - Blue - CAT 2A, 2022 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-9

420912421

$698.99

2

Needle Bushing

420232482

$20.99

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Plug Screw M10 X 1

420641323

$14.28

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Center Pin 8 X 12

420632010

$4.01

8

Double Sealed Bearing

420232103

$15.34

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Oil Plug

420460986

$16.36

11

Stator Plate

420889728

$319.49

12

Torx Flange Screw M6 X 35

420641258

$3.38

13

Retaining Plate

420926300

$16.37

14

Torx Flange Screw M6 X 16

420641048

$2.96

15

Magneto Flywheel

420296900

$461.99

16

Trigger Wheel

420966851

$18.49

17

Starter Double Gear 87/86T

420834871

$319.99

18

Hex Screw

295501162

$15.28

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Starter Drive

420888041

$274.99

21

Spring Washer

420238300

$7.41

22

Thrust Washer

420827280

$8.47

23

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

24

O-Ring

420631310

$4.44

25

Carbon Brush Set

420881340

$67.99

26

Starter Gear, 9 Teeth

420834522

$74.99

27

Retaining Ring

420845601

$4.55

28

Torx Flange Screw M6 X 25

420641238

$3.27

29

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

30

O-Ring

420431580

$14.83

31

Torx Flange Screw M6 X 16

420641048

$2.96

32

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

33

Clamp

420853414

$18.49

34

Torx Flange Screw M6 X 35

420641258

$3.38

35

Torx Flange Screw M6 X 85

420641228

$7.41

36

Input Shaft

420220934

$114.99

37

Spacer

420244034

$20.99

38

O-Ring

420250056

$0.77

39

BRACKET - Call your local BRP dealership

420851545

Unavailable

40

Torx Flange Screw M8 X 25

420641248

$5.82
