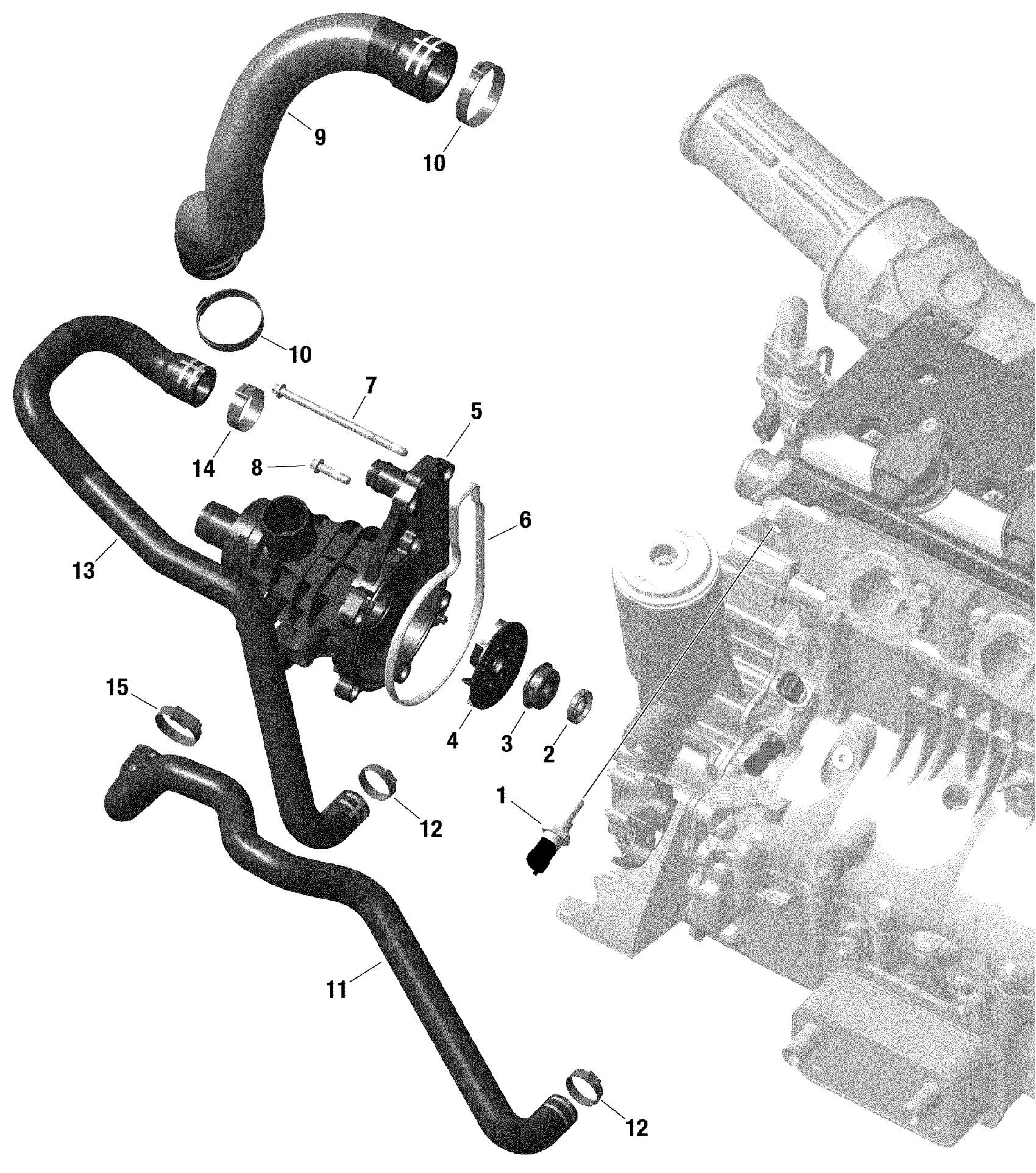

Sea-doo CRUISE 21 - 230 - 44NK - Blue - CAT 2A, 2022 ROTAX - Engine Cooling Diagram

#

Description
Price

1

Temperature Sensor

278002895

$31.82

2

Oil Seal

420650315

$9.62

3

Rotary Seal

420650371

$35.72

4

Impeller

420922804

$14.27

5

Water Pump Housing Ass'y | Includes no. 5-6

420922934

$262.57

6

Water Pump Housing Gasket | Included in gasket kit

420950840

$11.39

7

Torx Flange Screw M6 X 105

420641338

$6.11

8

Torx Flange Screw M6 X 25

420641238

$2.68

9

Formed Hose

420922823

$45.47

10

Oetiker Clamp

420851687

$9.43

11

Formed Hose

420922834

$51.97

12

Oetiker Clamp

420851661

$5.71

13

Formed Hose

420922832

$39.62

14

Clamp 28.4 31.6

420851671

$1.87

15

Tridon Gear Clamp

293650019

$4.81
