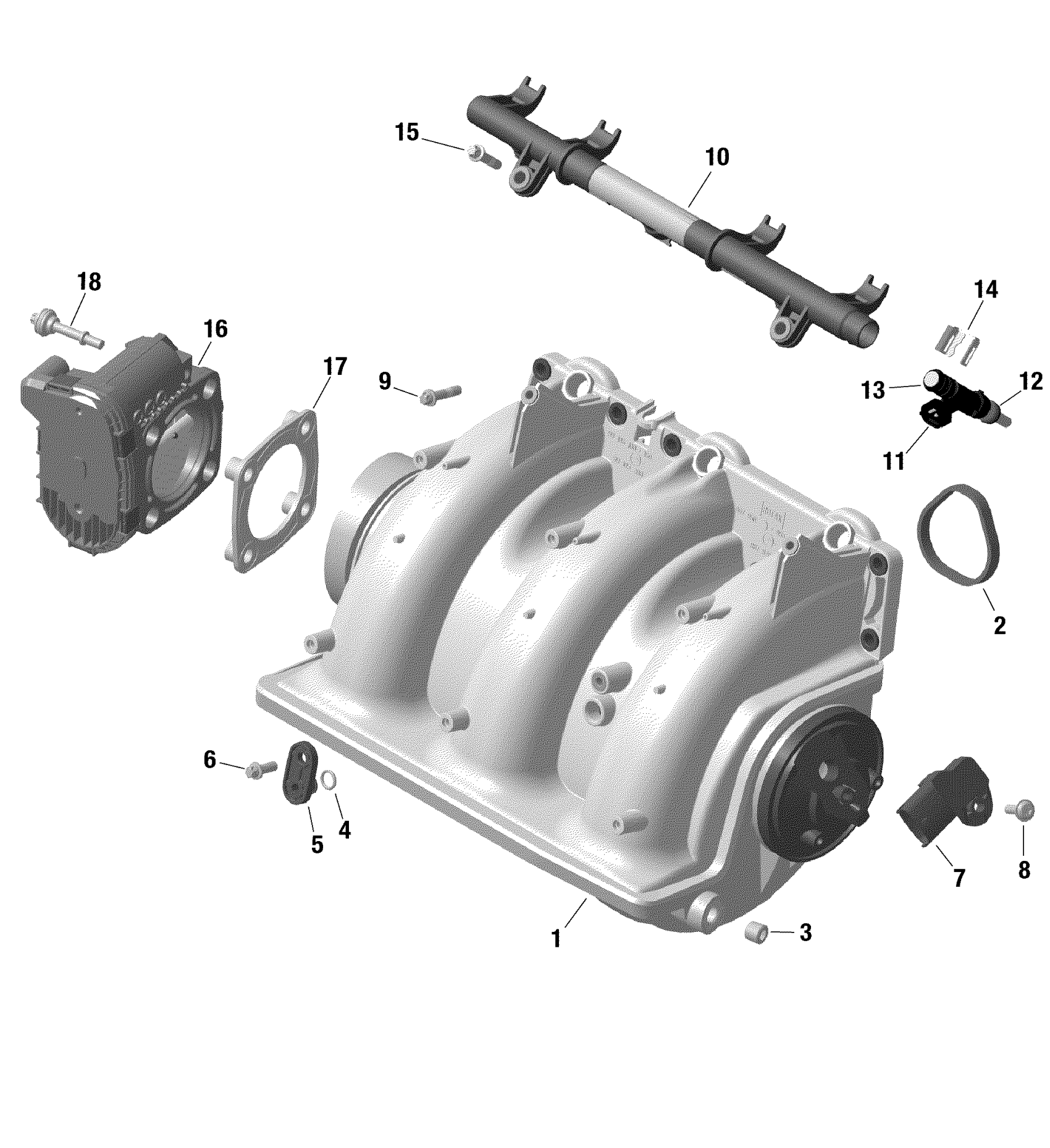

Sea-doo CRUISE 21 - 230 - 44NK - Blue - CAT 2A, 2022 ROTAX - Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Induction Manifold | Includes no. 1-6

420867946

$509.99

2

Gasket | Included in gasket kit

420950740

$4.44

3

Plug Screw M12

420840653

$12.17

4

O-Ring

420230461

$2.29

5

Cover

420460980

$2.68

6

Torx Flange Screw M6 X 16

420641048

$2.96

7

Pressure Sensor And Air Temperature

515178563

$159.99

8

Torx Flange Screw M6 X 20

420841103

$3.66

9

Torx Flange Screw M6 X 25

420641238

$3.27

10

Fuel Rail

420874414

$154.99

11

Injector | Includes no. 12-14

420874000

$190.99

12

O-Ring

420831050

$20.49

13

O-Ring

420831060

$12.12

14

Injector Clip

420853030

$3.09

15

Torx Flange Screw M6 X 25

420641238

$3.27

16

Throttle Body Socket Ass’y

420892592

$519.99

17

Rubber Gasket

420950792

$11.60

18

Allen Screw M6 x 30,5

420440561

$4.44
