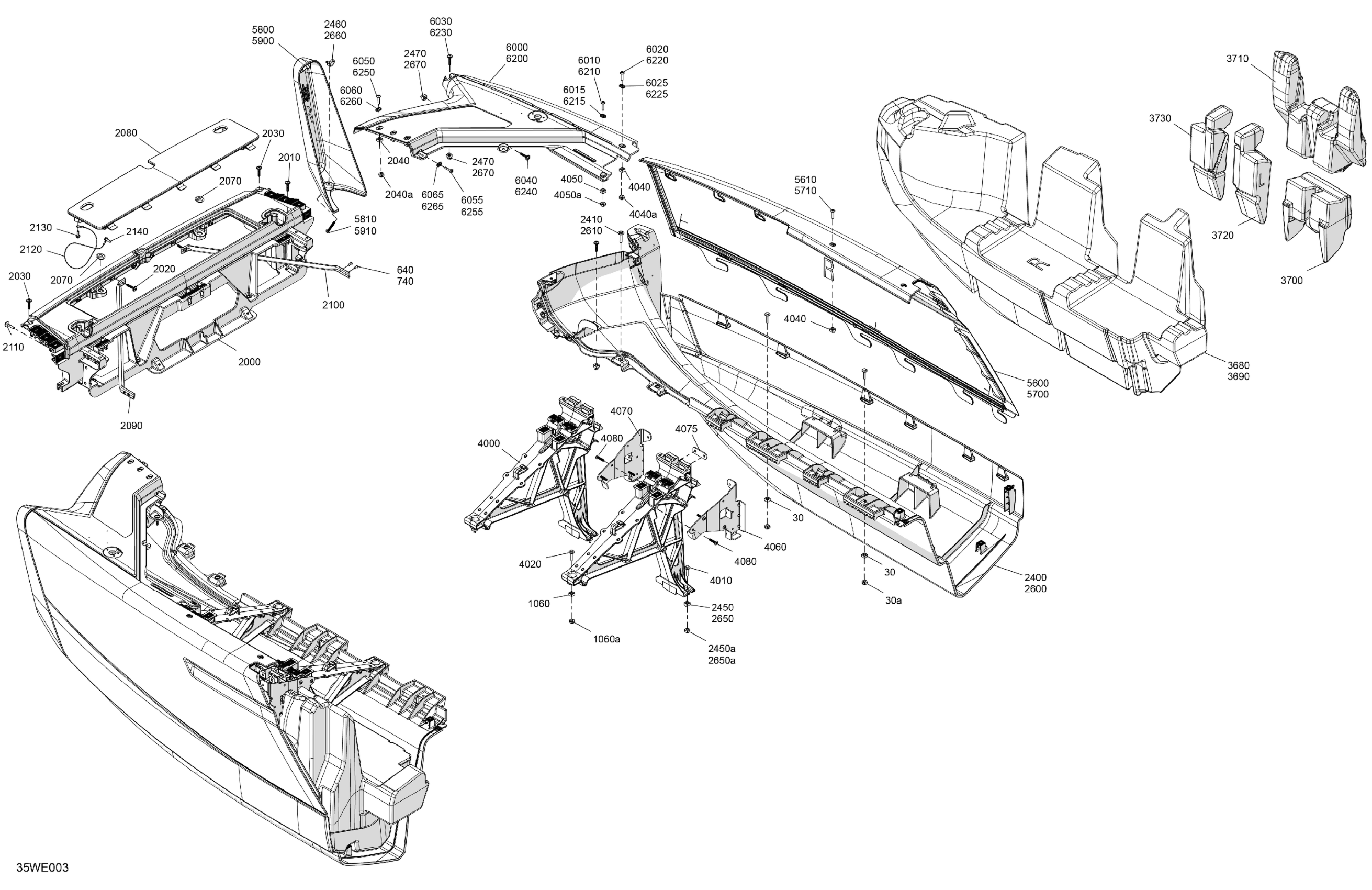

Sea-doo CRUISE 21 - 170 - 44SH - Dusty Navy - Trailer Paint - CAT2B - 2025 HULL - Front Deflector Float and Front Bumper Diagram

#

Description
Price

30

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

30a

Elastic Stop Nut M6, Brass

232561200

$4.23

640

Pop Rivet 3/16"

293150039

$1.49

740

Pop Rivet 3/16"

293150039

$1.49

1060

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

1060a

Elastic Stop Nut M6, Brass

232561200

$4.23

2000

Deep Black, Deflector Trim

291006557

$159.99

2010

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

2020

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

2030

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

2040

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2040a

Elastic Stop Nut M6, Brass

232561200

$4.23

2070

Oval Washer

705000321

$5.61

2080

Deep Black, Acces Cover

291006558

$55.99

2090

LH Trim Reinforcement

291005632

$38.99

2100

RH Trim Reinforcement

291005640

$38.99

2110

Hex SEMS Screw M6X30

250001164

$1.37

2120

Retaining Cable

291005711

$11.49

2130

Hex. Flange Screw M6.81 x 20

243162060

$3.72

2140

Hex. Flange Screw M6.81 x 20

243162060

$3.72

2400

LH Front Float Deflector

291006412

$1.00

2410

Hexagonal Cap Screw M6 X35

250000399

$4.44

2450

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2450a

Elastic Stop Nut M6, Brass

232561200

$4.23

2460

Plastite Insert 6.81

291006420

$5.82

2470

Platite Insert 6.81

291005889

$5.82

2600

RH Float Deflector

291006413

$1.00

2610

Hexagonal Cap Screw M6 X35

250000399

$4.44

2650

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2650a

Elastic Stop Nut M6, Brass

232561200

$4.23

2660

Plastite Insert 6.81

291006420

$5.82

2670

Platite Insert 6.81

291005889

$5.82

3680

LH Front Float

292002789

$329.99

3690

RH Front Float

292002790

$329.99

3700

Lower Float Support

291005639

$11.99

3710

Upper Float Support

291005845

$20.99

3720

LH Float Support

291005637

$15.99

3730

RH Float Support

291005636

$15.99

4000

Interlocking Tile Support

291004895

$159.99

4010

Hex Screw SEMS M6X35, SS

250000969

$2.11

4020

Hex Screw SEMS M6X35, SS

250000969

$2.11

4040

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4040a

Elastic Stop Nut M6, Brass

232561200

$4.23

4050

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4050a

Elastic Stop Nut M6, Brass

232561200

$4.23

4060

Reinforcement Support

291006168

$75.99

4070

Reinforcement Support

291006169

$75.99

4075

Connecting Plate

291005950

$13.49

4080

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

5600

Dusty Navy, LH Front Panel

291006173

$209.99

5610

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

5700

Dusty Navy, RH Front Panel

291006174

$209.99

5710

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

5800

Deep Black, LH Front Bumper

291006555

$76.99

5810

Screw-Plastite Torx Cone Head M6.81 X 60

250001004

$4.76

5900

Deep Black, RH Front Bumper

291006556

$76.99

5910

Screw-Plastite Torx Cone Head M6.81 X 60

250001004

$4.76

6000

Dusty Navy, LH Front Panel Trim

291006175

$114.99

6010

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

6015

Oval Washer

291003880

$1.77

6020

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

6025

Oval Washer

291003880

$1.77

6030

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

6040

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

6050

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

6055

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

6060

Oval Washer

291003880

$1.77

6065

Oval Washer

291003880

$1.77

6200

Dusty Navy, RH Front Panel Trim

291006176

$114.99

6210

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

6215

Oval Washer

291003880

$1.77

6220

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

6225

Oval Washer

291003880

$1.77

6230

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

6240

Sems Plastite Torx Screw M6.81X35

250001152

$4.76

6250

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

6255

Screw-Torx Truss Cone Head M6X25

250001116

$4.12

6260

Oval Washer

291003880

$1.77

6265

Oval Washer

291003880

$1.77
