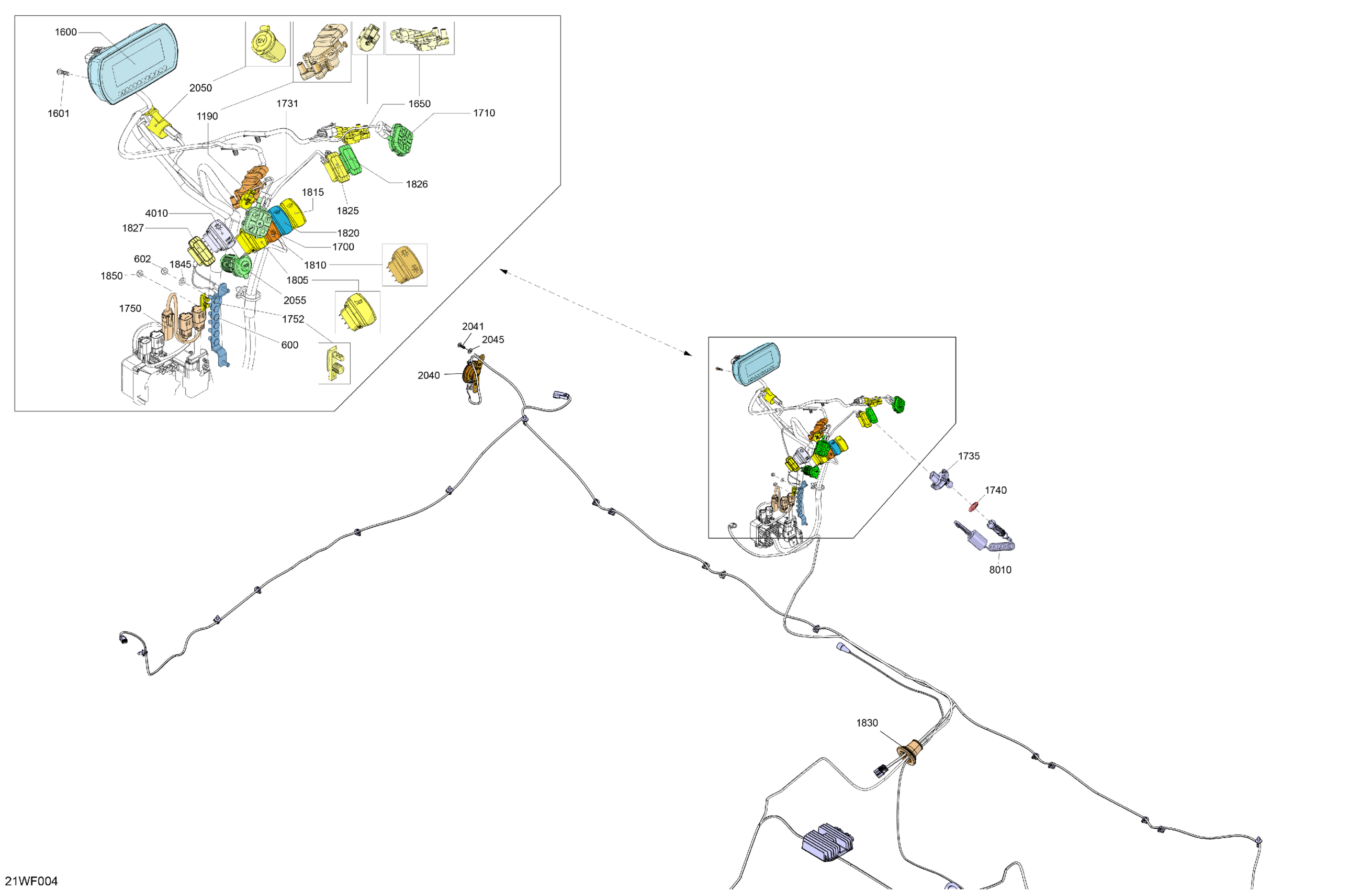

Sea-doo North America - CRUISE 18 - 230 - 45TC - Neo Mint - Trailer paint - CAT-2-375-101 - 2026 08- ELECTRIC - Electric Upper Section Diagram

Description

Price

600

Busbar Ass'y

281000234

$35.99

602

Elastic Stop Nut M6, Brass

232561200

$4.23

1190

LH Throttle Sensor

278002284

$119.99

1601

Hex. Flange Screw K50 X 20

241152060

$1.99

1600

Multifunction Mono Compact Gauge

278003430

$599.99

1650

Throttle Position Sensor

278002283

$119.99

1700

Switch

278003821

$126.99

1710

RH Switch Keypad

278003474

$126.99

1731

Switch Start/Stop This part replaces 278002676.

278002676

Unavailable

1735

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

1740

Specialized Nut

278004274

$3.28

1750

Multiple Accessory Harness

278003684

$53.99

1752

Clip Connector

515178223

$2.09

1805

Horn Switch

278003690

$52.99

1810

Nav & Anchor Light Switch

278003691

$35.49

1815

Pump Switch

278003692

$55.99

1820

Vent Switch

278003693

$46.49

1825

Plug

278004279

$3.29

1826

Plug

278004279

$3.29

1827

Plug

278004279

$3.29

1830

Cable Boot

293720134

$12.69

1845

Stainless Flat Washer M6

234061600

$0.33

1850

Elastic Stop Nut M6, Brass

232561200

$4.23

2040

Horn

278003906

$54.99

2041

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

2045

Stainless, Flat Washer 8 mm

234081600

$0.55

2050

12V Power Outlet

710005374

$33.99

2055

USB Outlet

219400510

$42.99

4010

Courtesy Light Switch

278003822

$33.99

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99

8030

Cord Cut Off Switch Tether | Not Shown

278004223

$31.99
