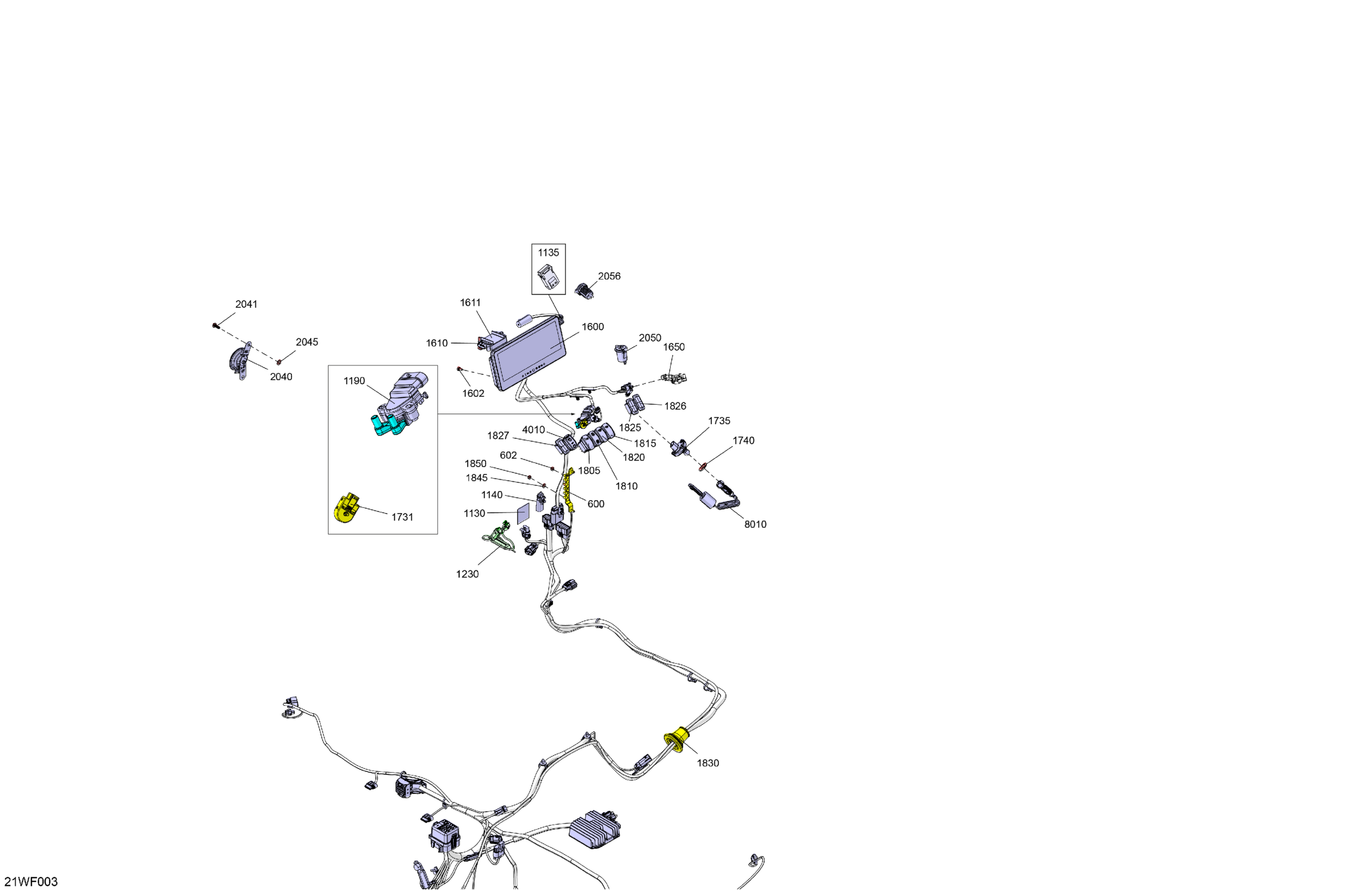

Sea-doo North America - CRUISE 18 - 230 - 45TB - Dusty Navy - Trailer Galv - CAT-2-375-101 - Audio4 - 2026 08- ELECTRIC - Electric Upper Section Diagram

Description

Price

600

Busbar Ass'y

281000234

$35.99

602

Elastic Stop Nut M6, Brass

232561200

$4.23

1130

FUSE HOLDER LABEL

219906800

$0.01

1135

Connector Plug

278004605

Unavailable

1140

Connector Plug

278003896

$14.99

1190

LH Throttle Sensor

278002284

$119.99

1230

LED Module

278004260

$158.99

1600

Multifunction Gauge 10

710010374

$2,039.99

1602

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

1610

Hexagonal Cap Screw M6 X35

250000399

$4.44

1611

GPS

278004506

$109.99

1650

Throttle Position Sensor

278002283

$119.99

1731

Switch Start/Stop This part replaces 278002676.

278002676

Unavailable

1735

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

1740

Specialized Nut

278004274

$3.28

1805

Horn Switch

278003690

$52.99

1810

Nav & Anchor Light Switch

278003691

$35.49

1815

Pump Switch

278003692

$55.99

1820

Vent Switch

278003693

$46.49

1825

Plug

278004279

$3.29

1826

Plug

278004279

$3.29

1827

Plug

278004279

$3.29

1830

Cable Boot

293720134

$12.69

1845

Stainless Flat Washer M6

234061600

$0.33

1850

Elastic Stop Nut M6, Brass

232561200

$4.23

2040

Horn

278003906

$54.99

2041

Plastite Torx Screw Cone HD.M6.81X2

250001171

$6.29

2045

Stainless, Flat Washer 8 mm

234081600

$0.55

2050

12V Power Outlet

710005374

$33.99

2056

USB Outlet

219400510

$42.99

4010

Light Switch

278004829

$35.99

8010

Safety Lanyard Ass'y, RFID

278003400

$84.99

8030

Cord Cut Off Switch Tether | Not Shown

278004223

$31.99
