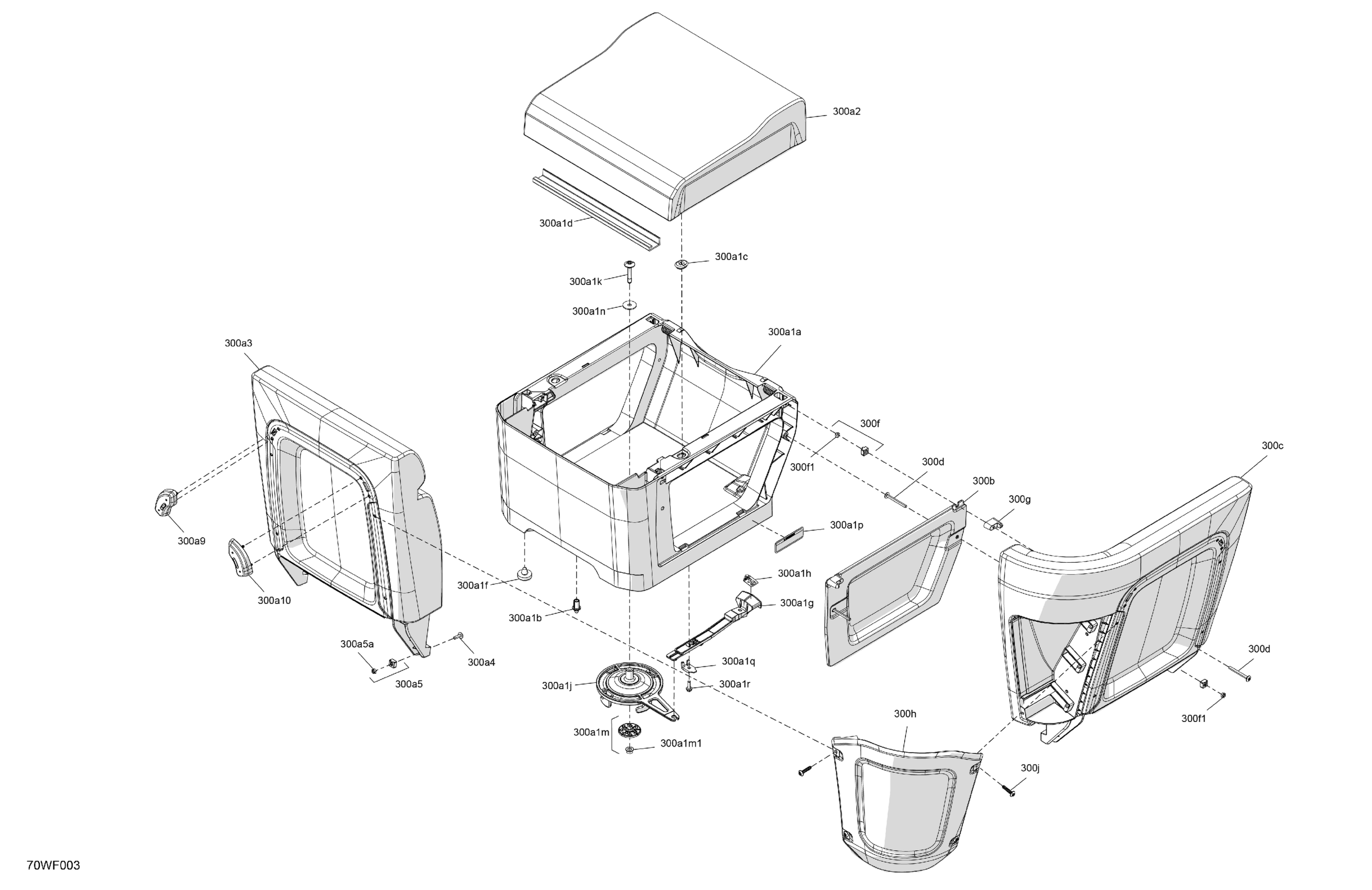

Sea-doo CRUISE 18 - 230 - 45TB - Dusty Navy - Trailer Galv - CAT-2-375-101 - Audio4 - 2026 FURNITURE - Seat Corner Backrest (RH) Diagram

Description

Price

300a1a

Seat Support Service Kit

295101127

Unavailable

300a1b

Locator Rod

269003492

$5.40

300a1c

Oval Washer

705000321

$5.33

300a1d

Gutter

269003483

$2.61

300a1f

Rubber Stopper

269003502

$6.18

300a1g

Lever Latch Service Kit

295101126

Unavailable

300a1h

Lever Decal

219905993

Unavailable

300a1j

Seat Anchorage

269003311

$16.39

300a1k

Torx Head M8 X 50 S.GRIP

250001154

$10.10

300a1m

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

300a1m1

Hex. Flange Nut M8

233181600

$0.99

300a1n

Flat Washer 8 mm

250200130

$3.00

300a1p

Seat Anchorage Warning Label

219905883

Unavailable

300a1q

Guide

269004160

$9.66

300a1r

Hex. Flange Screw M6.81 x 20

243162060

$3.79

300a2

Seat Cushion Ass'y

269003224

Unavailable

300a3

Backrest Ass'y

269003305

$349.99

300a4

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.33

300a5

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

300a5a

Elastic Stop Nut M6, Brass

232561200

$4.03

300a9

LH Backrest Stopper

269004219

$3.61

300a10

RH Backrest Stopper

269004220

$3.61

300b

RH Panel Seat Switch Kit

295101047

Unavailable

300c

RH Seat Corner Kit M

295100970

Unavailable

300d

Torx Screw M6 X 60

250000631

$3.58

300f

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

300f1

Elastic Stop Nut M6, Brass

232561200

$4.03

300g

Spacer

293900146

$1.85

300h

RH Exterior Support

269003511

$65.64

300j

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00
