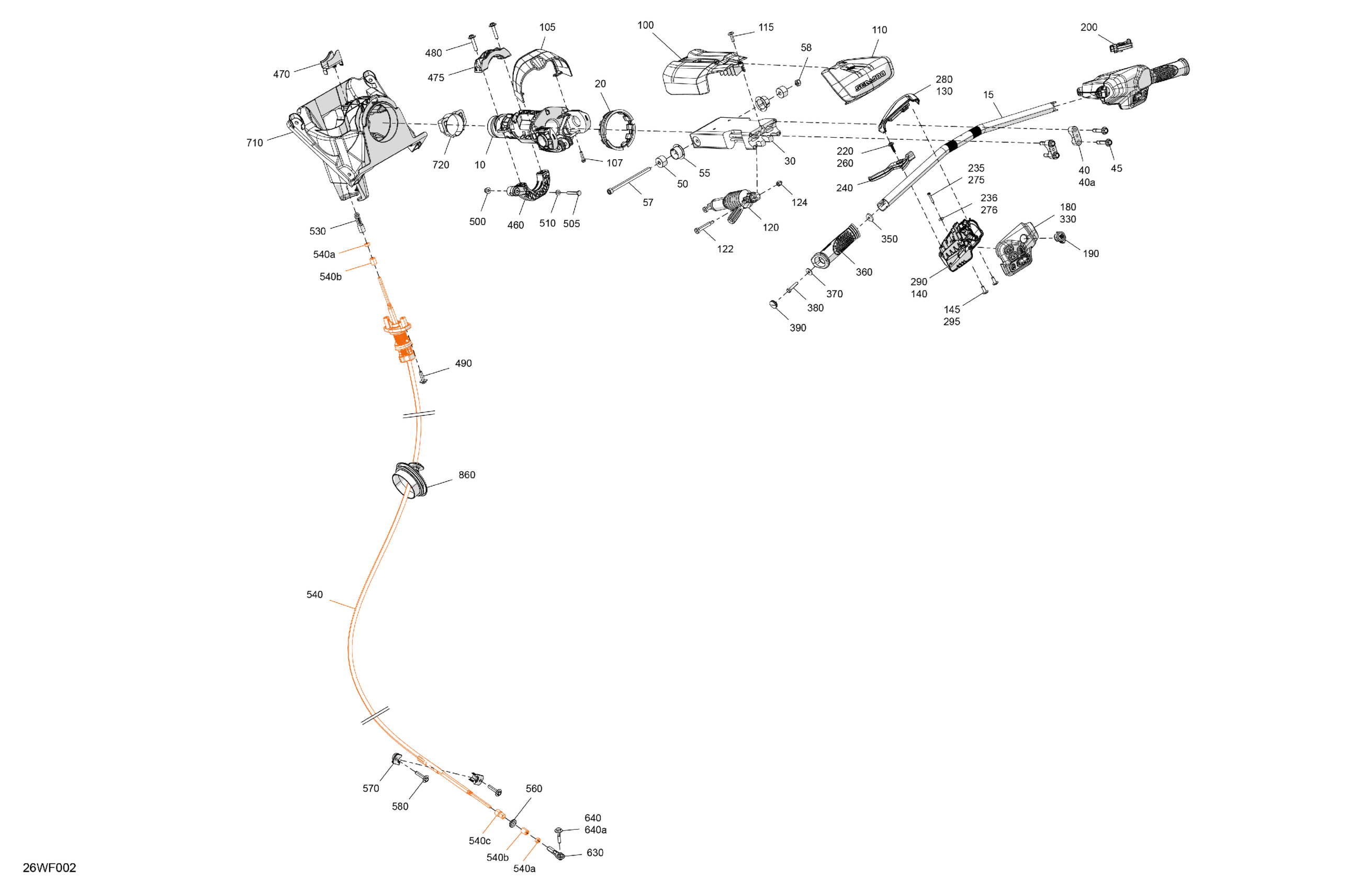

Sea-doo CRUISE 18 - 230 - 45TB - Dusty Navy - Trailer Galv - CAT-2-375-101 - Audio4 - 2026 HELM - Steering Diagram

Hexagonal Cap Screw M6 X35

250000399

$4.15

Nut Flange Elastic M6

233261200

$0.94

Hex. Screw M6 X 40

207064060

$1.61

Stainless Flat Washer M6

234061600

$0.28

Steering Column

277002292

Unavailable

Bent Handlebar

281000031

$98.48

Wear Ring

277001874

$11.18

Anodized Handlebar Riser Block

277002293

Unavailable

Steering Support | Includes 40 to 40a

506152751

$11.58

Not Available As Spare Parts

XXX

Unavailable

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.73

Axle Block

277002413

Unavailable

Bushing

709401603

$7.54

Socket Head Screw Din.912A2

231083060

$3.40

Hex. Elastic Nut M8 Brass

232581200

$1.48

Rear Steering Column Trim

277002289

Unavailable

Front Steering Column Trim

277002348

$12.79

Hex. Screw 10-14 X 7/8”

211000023

$3.34

Steering Pad

277002331

$51.46

Torx Screw M6 X 20, Scotch Grip

250000446

$4.15

Cylinder Adjustment Ass'y

709402894

Unavailable

Socket Head Screw M6 X 50

250001230

$11.94

Hexagonal Jam Nut M6

232161600

$10.55

RH Upper Lever Trim

277002349

$98.48

RH Lower Lever Trim

277002350

$91.76

Torx Truss Screw M6 X 16

250000922

$1.79

LH Front Trim Lever Ass'y

277002407

$361.16

Red, Switch Button

277002368

$10.00

Hand Lever Accelerator

277002138

$35.04

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

Hex. Flange Screw K40 X 25

241142560

$2.49

Flat Washer 4 mm, Stainless

234042600

$1.06

Reverse Handle

277001945

$39.52

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.31

Hex. Flange Screw K40 X 25

241142560

$2.49

Flat Washer 4 mm, Stainless

234042600

$1.06

LH Upper Lever Trim

277002351

$98.48

LH Lower Lever Trim

277002352

$91.76

Torx Truss Screw M6 X 16

250000922

$1.79

RH Front Trim Lever Ass'y

277002410

$361.16

Insert Grip Handle

277001863

$8.83

Handlebar Grip

277002286

$17.13

Flat Washer M6, Stainless

234062600

$0.73

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.87

Black, Cap

277000203

$8.58

Steering Arm

277002319

$8.25

Spacer

277001654

$13.09

C Clamp

277002085

$8.25

Hexagonal Cap Screw M6 X35

250000399

$4.15

Ball Joint

277001180

$32.06

Steering Cable | Includes 540 to 540c

277002454

$256.69

Hex. Nut 1/4"-28

211100056

$0.64

Wiper Rod

277001582

$10.13

End Piece

277001583

$12.79

Rubber Washer

293830063

$1.73

Ring Halves

277001856

$11.31

Hexagonal Cap Screw M6 X35

250000399

$4.15

Ball Joint

277000775

$46.24

Hex Sems Screw M6X35

250000970

$2.00

Hex Screw SEMS M6X35, SS

250000969

$2.00

Steering Column Support

277002168

$46.24

Wear Ring

277002318

Unavailable

Cable Boot

293720116

$4.49
