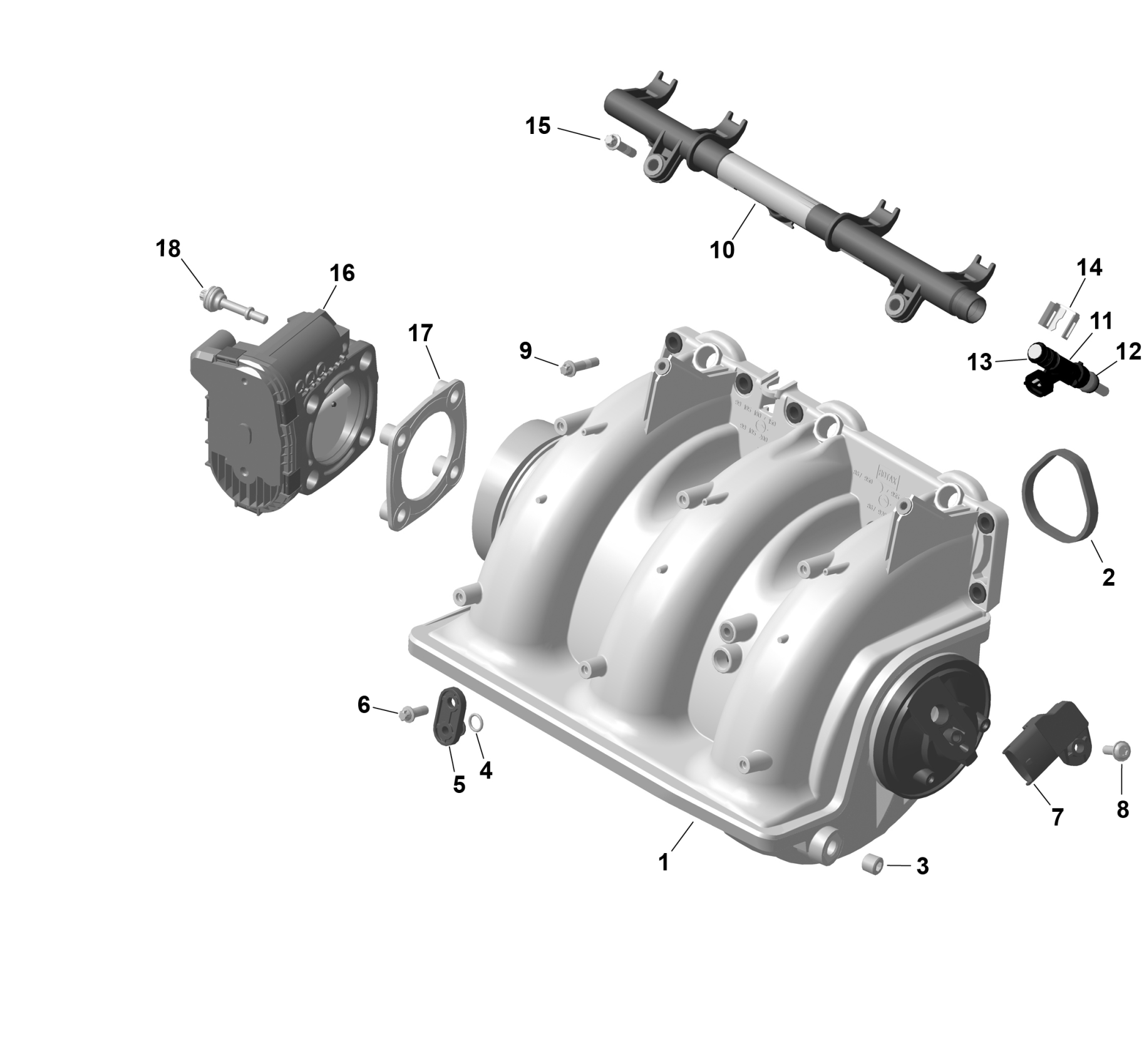

Sea-doo CRUISE 18 - 230 - 45SB - Dusty Navy - Trailer Galv - CAT2B - 2025 ROTAX - Air Intake Manifold And Throttle Body Diagram

Description

Price

Induction Manifold | Includes no. 1-6

420867946

$509.99

Gasket | Included in gasket kit

420950740

$4.44

Plug Screw M12

420840653

$12.17

O-Ring

420230461

$2.29

Cover

420460980

$2.68

Torx Flange Screw M6 X 16

420641048

$2.96

Pressure Sensor And Air Temperature

515178563

$159.99

Torx Flange Screw M6 X 20

420841103

$3.66

Torx Flange Screw M6 X 25

420641238

$3.27

Fuel Rail

420874414

$154.99

Injector | Includes no. 12-14

420874000

$190.99

O-Ring

420831050

$20.49

O-Ring

420831060

$12.12

Injector Clip

420853030

$3.09

Torx Flange Screw M6 X 25

420641238

$3.27

Throttle Body Socket Ass’y

420892592

$519.99

Rubber Gasket

420950792

$11.60

Allen Screw M6 x 30,5

420440561

$4.44
