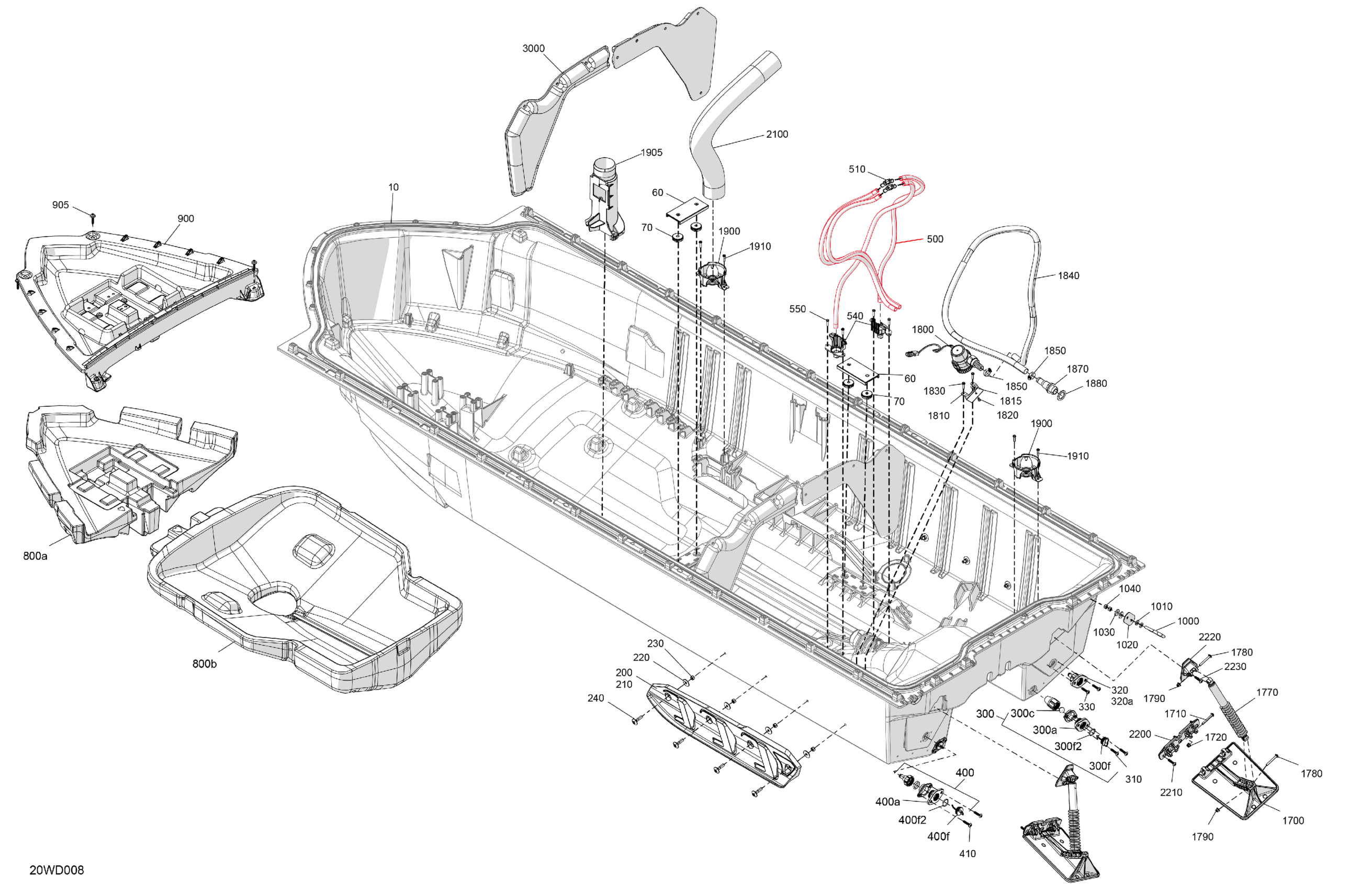

Sea-doo CRUISE 18 - 230 - 45RA - Blue - Trailer Paint - CAT2B, 2024 MECHANICS - Hull Diagram

#

Description
Price

10

Hull Ass'y | Includes 10 to 10b

292002976

Unavailable

60

Anchorage Support

292002403

Unavailable

70

Formed Slot Nut

292002521

Unavailable

200

LH Sponson

292001954

$63.67

210

RH Sponson

292001953

$53.27

220

Flat Washer 8 mm, Stainless

250200175

$1.29

230

Hex. Elastic Nut M8 Brass

232581200

$1.29

240

Torx Screw M8 X 35

250000697

$3.25

300

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

Unavailable

300a

Through Hull Fitting

292002765

$6.08

300c

Floating Ball

293830080

$5.56

300f

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

300f2

O-Ring

293300067

$0.85

310

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

320

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$9.30

320a

Through Hull Fitting

292002765

$6.08

330

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

400

Flush Kit | Includes 400 to 400f2

292002923

$21.42

400a

Through Hull Fitting

292002765

$6.08

400f

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

400f2

O-Ring

293300067

$0.85

410

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

500

Hose 11,6 Mm Id X 800

292002962

$10.14

510

Fitting Elbow 90°

293710152

$14.92

540

Pump Support

269800956

$2.65

550

Hex. Screw 10-14 X 7/8”

211000023

$2.91

800a

Lower Front Float

292002336

Unavailable

800b

Fuel Tank Float

292002337

Unavailable

900

Luggage Compartment Bottom

292002414

Unavailable

905

Sems Plastite Torx Screw M6.81X35

250001152

$3.87

1000

U-Clamp

292000933

$32.47

1010

Flat Washer M8.5 x 18

293050001

$1.29

1020

Retaining Plate

292002612

Unavailable

1030

Flat Washer

279000336

$8.35

1040

Hex. Elastic Nut M8 Brass

232581200

$1.29

1700

Tab Trim

292002388

Unavailable

1710

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

1720

Nut Flange Elastic M6

233261200

$0.82

1770

Shock Absorber Ass'y

269502531

$31.17

1780

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

1790

Nut Flange Elastic M6

233261200

$0.82

1800

Bilge Pump

278004010

$79.27

1810

Bilge Pump Support

269801210

Unavailable

1815

Flat Washer 5 mm, Stainless

234052600

$0.64

1820

Pop Rivet 3/16"

293150043

$1.61

1830

Hex. Screw 10-14 X 7/8”

211000023

$2.91

1840

Hose Bilgeflex

291002952

$52.28

1850

Clamp Gear

293650285

$2.68

1870

Fitting

293710162

$12.91

1880

Gasket

292001486

$4.46

1900

Hose Support

237000083

Unavailable

1905

Voltage Regulator Support

237000089

Unavailable

1910

Hex. Screw 10-14 X 7/8”

211000023

$2.91

2100

Vent Hose

237000053

$27.66

2200

Trim Tab Anchor

292002406

Unavailable

2210

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

2220

Shock Absorber Anchorage

292002389

Unavailable

2230

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

3000

Acoustic Insulation Panel

292002611

Unavailable
