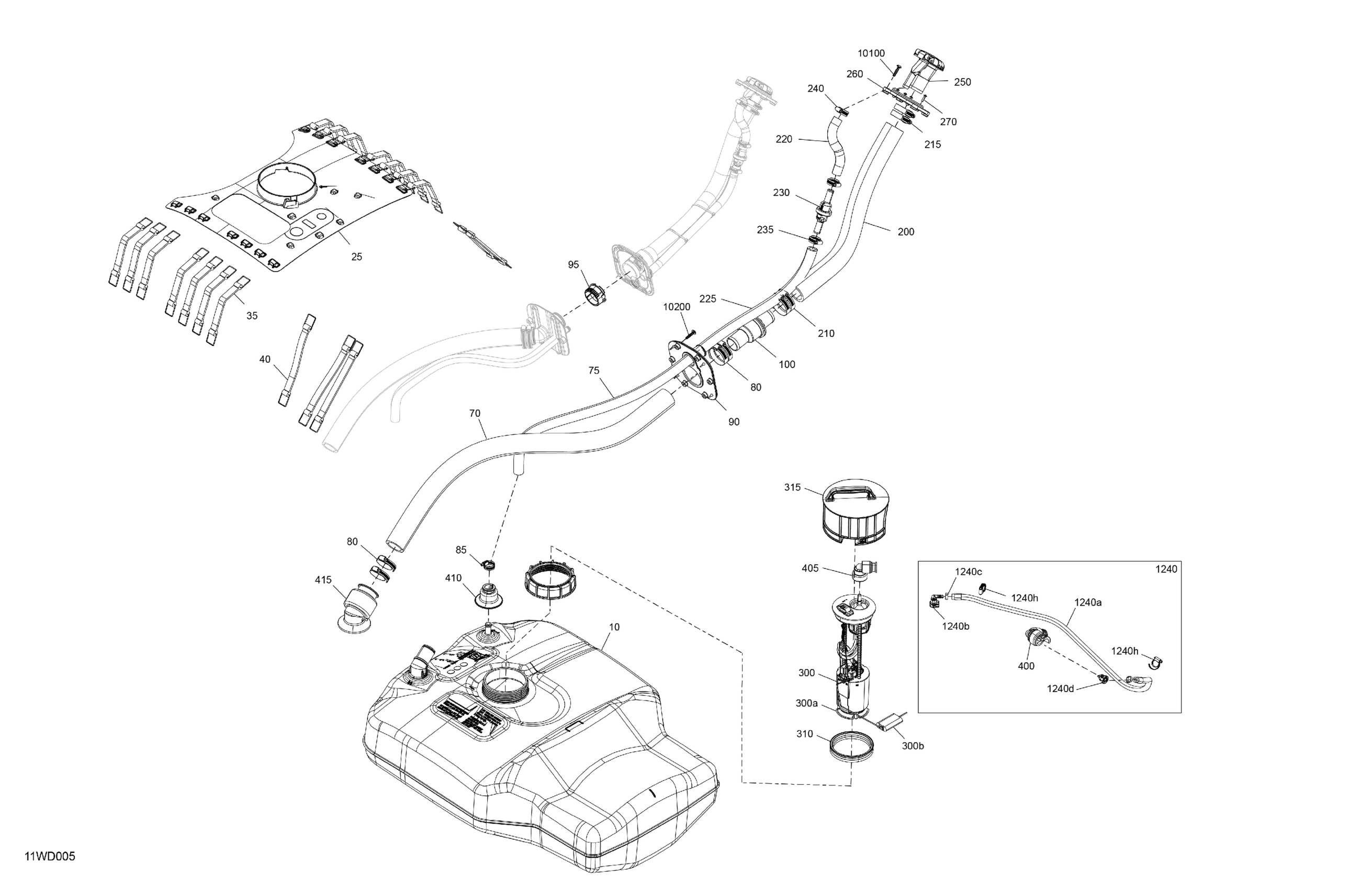

Sea-doo CRUISE 18 - 230 - 45RA - Blue - Trailer Paint - CAT2B, 2024 MECHANICS - Fuel Diagram

#

Description
Price

10

Fuel Tank

275501143

$599.99

25

Fuel Tank Support

275501017

Unavailable

35

Retaining Strap

275501161

$16.39

40

Fuel Tank Strap

293850087

$16.39

70

Hose

275501030

$76.84

75

Vent Hose This part replaces 275501087.

275501138

Unavailable

80

Tridon Clamp

293650036

$5.69

85

Tridon Gear Clamp

293650019

$5.52

90

Through Hull Fitting Sub Ass'y

275501073

$44.00

95

Adapter

275501142

$7.07

100

Check Valve

275501047

$95.49

200

Filler Neck Hose Ext

275501084

$70.87

210

Tridon Clamp

293650036

$5.69

215

Tridon Clamp

293650036

$5.69

220

Vent Hose This part replaces 275501087.

275501138

Unavailable

225

Vent Hose This part replaces 275501087.

275501138

Unavailable

230

Check Valve

275501103

$29.82

235

Tridon Gear Clamp

293650019

$5.52

240

Tridon Gear Clamp

293650019

$5.52

250

Filler Neck

275501080

$145.49

260

Fuel Cap Spacer

275501079

$16.39

270

Flange Torx Screw K40 X 16

250000287

$2.00

300

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$426.84

300a

Fuel Filter

270600113

$31.31

300b

Sensor Lever

275500780

$202.21

310

Gasket

293250173

$17.88

315

Fuel Pump Cover

273000416

Unavailable

400

Connector Guard

275501058

$4.19

405

Connector Guard

275501063

$4.19

410

Hose Guard

275501070

Unavailable

415

Hose Guard

275501071

Unavailable

1240

Fuel Rail Hose Ass'y | Includes 1240 to 1240h

275501035

Unavailable

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

1240b

Quick Disconnect

275500921

$14.48

1240c

Crimp Clamp

293650053

$2.78

1240d

Elbow Fitting 90°

293710105

$12.15

1240h

Gear Clamp

293650284

$4.15

10100

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.85

10200

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00
