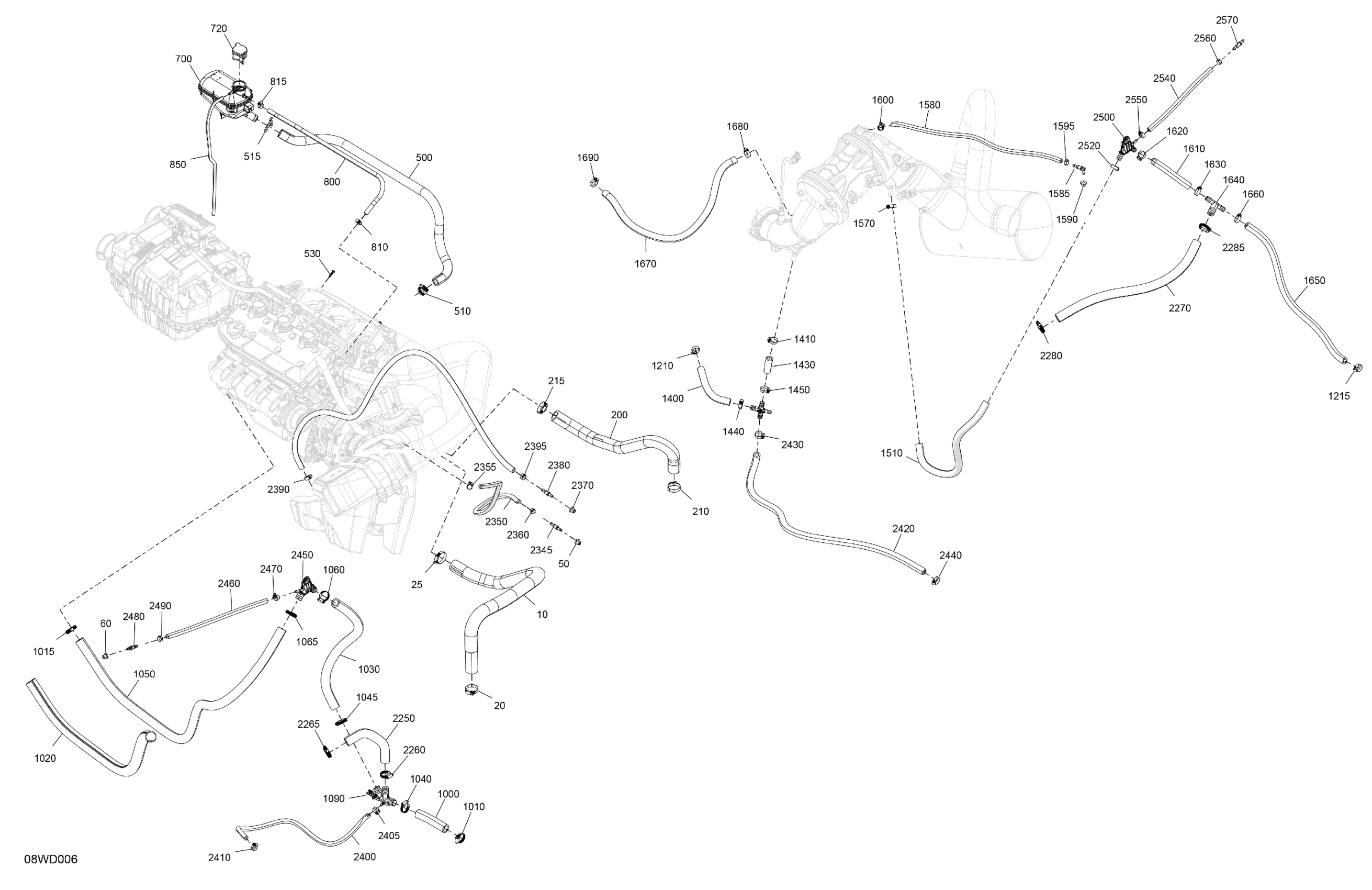

Sea-doo CRUISE 18 - 230 - 45RA - Blue - Trailer Paint - CAT2B, 2024 MECHANICS - Cooling Diagram

#

Description
Price

10

Hose

276000516

$59.67

20

Norma Clamp

293650245

$13.51

25

Norma Clamp

293650245

$13.51

50

Grommet

293720029

$1.30

60

Grommet

293720029

$1.30

200

Formed Hose

276000517

$52.21

210

Norma Clamp

293650245

$13.51

215

Norma Clamp

293650245

$13.51

500

Coolant Tank Hose

276000537

$35.04

510

Tridon Gear Clamp

293650019

$5.52

515

Spring Clamp

293650115

$2.82

530

Hex. Screw 10-14 X 7/8”

211000023

$3.34

700

Coolant Tank

276000419

$108.18

720

Pressure Cap | Includes 720 to 720a

276000100

$23.85

800

Hose 6,4 MM ID

276000425

$6.91

810

Gear Clamp

293650287

$2.00

815

Gear Clamp

293650287

$2.00

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

1000

Was 509000407 Hose 8 mm

219704420

$46.24

1010

Gear Clamp

293650284

$4.15

1015

Gear Clamp

293650284

$4.15

1020

Tubing 25 MM 1000MM Long

219704402

$14.57

1030

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1040

Gear Clamp

293650284

$4.15

1045

Gear Clamp

293650284

$4.15

1050

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1060

Gear Clamp

293650284

$4.15

1065

Gear Clamp

293650284

$4.15

1090

Fitting

276000554

Unavailable

1210

Clamp Gear

293650285

$3.07

1215

Clamp Gear

293650285

$3.07

1400

Was 276000001 Hose 12.5 mm

219704394

$49.22

1410

Clamp Gear

293650285

$3.07

1430

Was 276000001 Hose 12.5 mm

219704394

$49.22

1440

Clamp Gear

293650285

$3.07

1450

Clamp Gear

293650285

$3.07

1510

Was 276000001 Hose 12.5 mm

219704394

$49.22

1570

Clamp Gear

293650285

$3.07

1580

Hose 6,4 MM ID

276000425

$6.91

1585

Elbow Male Connector

414580600

$4.01

1590

Grommet

293720029

$1.30

1595

Oetiker Gear Clamp

293650025

$2.82

1600

Clamp Gear

293650285

$3.07

1610

Was 276000001 Hose 12.5 mm

219704394

$49.22

1620

Clamp Gear

293650285

$3.07

1630

Clamp Gear

293650285

$3.07

1640

T-Fitting

293710132

$10.88

1650

Was 276000001 Hose 12.5 mm

219704394

$49.22

1660

Clamp Gear

293650285

$3.07

1670

Was 276000001 Hose 12.5 mm

219704394

$49.22

1680

Clamp Gear

293650285

$3.07

1690

Clamp Gear

293650285

$3.07

2250

Formed Hose

276000535

$30.57

2260

Gear Clamp

293650284

$4.15

2265

Gear Clamp

293650284

$4.15

2270

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

2280

Gear Clamp

293650284

$4.15

2285

Gear Clamp

293650284

$4.15

2345

Male Connector

414518500

$4.01

2350

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

2355

Gear Clamp

293650287

$2.00

2360

Oetiker Gear Clamp

293650025

$2.82

2370

Grommet

293720029

$1.30

2380

Male Connector

414518500

$4.01

2390

Gear Clamp

293650287

$2.00

2395

Crimp Clamp

293650053

$2.78

2400

Hose 6,4 MM ID

276000425

$6.91

2405

Gear Clamp

293650287

$2.00

2410

Gear Clamp

293650287

$2.00

2420

Was 276000001 Hose 12.5 mm

219704394

$49.22

2430

Clamp Gear

293650285

$3.07

2440

Clamp Gear

293650285

$3.07

2450

Fitting

276000547

$4.85

2460

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

2470

Gear Clamp

293650287

$2.00

2480

Male Connector

414518500

$4.01

2490

Oetiker Gear Clamp

293650025

$2.82

2500

Fitting

276000565

$4.85

2520

Clamp Gear

293650285

$3.07

2540

Hose 6,35 Mm Id 4000Mm Long

219704547

$11.48

2550

Gear Clamp

293650287

$2.00

2560

Oetiker Gear Clamp

293650025

$2.82

2570

Male Connector

414518500

$4.01
