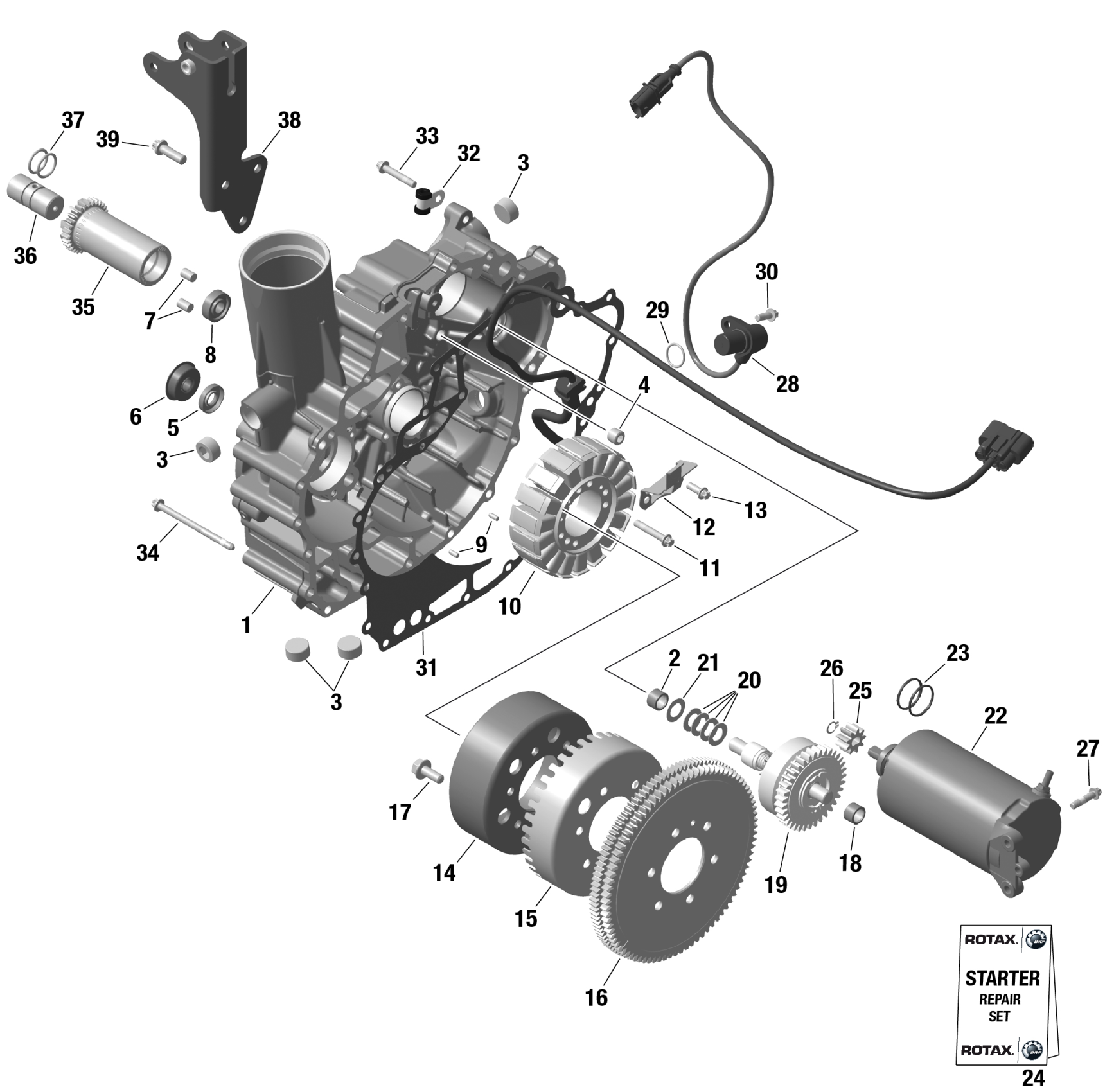

Sea-doo CRUISE 18 - 230 - 45RA - Blue - Trailer Paint - CAT2B, 2024 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-9

420912421

$643.25

2

Needle Bushing

420232482

$17.88

3

Plug Screw M20 X 1.5

420641317

$12.15

4

Plug Screw M10 X 1

420641323

$13.18

5

Oil Seal

420650316

$11.04

6

Rotary Seal

420650371

$41.01

7

Center Pin 8 X 12

420632010

$3.52

8

Double Sealed Bearing

420232103

$13.94

9

Needle Pin

420929070

$1.79

10

Stator Ass'y. 650W

420685001

Unavailable

11

Torx Flange Screw M6 X 35

420641258

$3.19

12

Retaining Plate

420926303

$1.12

13

Torx Flange Screw M6 X 16

420641048

$2.82

14

Magneto Flywheel

420685648

$461.99

15

Trigger Wheel

420966851

$17.13

16

Starter Double Gear 87/86T

420834871

$287.28

17

Hex Screw

295501162

$13.16

18

Needle Bushing

420232482

$17.88

19

Starter Drive

420888041

$246.24

20

Spring Disk | Includes no. 18-19

420238307

$26.84

20

Spring Washer

420238300

$7.01

21

Thrust Washer

420827280

$7.90

22

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

23

O-Ring

420631310

$4.15

24

Carbon Brush Set

420881340

$60.42

25

Starter Gear, 9 Teeth

420834522

$68.63

26

Retaining Ring

420845601

$4.28

27

Torx Flange Screw M6 X 25

420641238

$3.07

28

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

29

O-Ring

420431580

$14.10

30

Torx Flange Screw M6 X 16

420641048

$2.82

31

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$22.36

32

Clamp

420853414

$17.13

33

Torx Flange Screw M6 X 35

420641258

$3.19

34

Torx Flange Screw M6 X 85

420641228

$7.01

35

Input Shaft

420820462

$104.45

36

Spacer

420244034

$19.37

37

O-Ring

420250056

$0.72

38

BRACKET - Call your local BRP dealership

420851545

Unavailable

39

Torx Flange Screw M8 X 25

420641248

$5.42
