Description

Price

1

Oil Pump Housing

420812726

$108.18

2

Oil Pump Shaft

420837543

$56.69

3

Oil Pump Rotor 16 mm

420956675

$33.55

4

Oil Pump Cover

420811851

$31.31

5

Torx Flange Screw M6 X 16

420641048

$2.82

6

Oil Sieve

420856520

$24.60

7

Oil Suction Pump Gasket | Included in gasket kit

420631486

$9.03

8

Torx Flange Screw M6 X 25

420641238

$3.07

9

Pump Shaft Ass'y

420837472

$52.21

10

Oil Pump Rotor 16 mm

420956675

$33.55

11

Needle Pin

420929070

$1.79

12

Oil Pump Cover

420811591

$34.30

13

Torx Flange Screw M6 X 16

420641048

$2.82

14

Oil Sieve

420956950

$14.33

15

Valve Seat Sleeve

420256606

$27.58

16

Piston Valve

420256638

Unavailable

17

Compression Spring

420939401

$12.52

18

Compression Spring

420939211

$8.22

19

O-Ring

420230890

$5.06

20

Plug Screw M20 X 1.5

420641052

$35.79

21

4T 5W-40 Synthetic Blend Oil

9779133

Unavailable

21

4T 5W-40 Synthetic Oil This part replaces 9779134.

9779493

$67.88

21

4T 5W-40 Synthetic Oil

9779492

$18.63

21

4T 5W-40 Synthetic Oil This part replaces 9779134.

9779493

$67.88

21

4T 10W-50 Synthetic Oil

9779234

$19.37

21

4T 10W-50 Synthetic Oil

9779235

$71.61

21

4T 5W-40 Synthetic Blend Oil Change Kit for engines of 1500 cc or more

9779251

$90.27

21a

Oil Filter

420956744

$19.37

22

Oil Filter Cover

420612081

$10.57

23

O-Ring

420850500

$3.01

24

O-Ring

420230923

$2.97

25

Hex Screw M8 X 140.5

420641104

$12.87

26

O-Ring

420950860

$3.67

27

Spacer

420857229

$19.37

28

Hex. Nut M8

420842610

$12.87

29

O-Ring

420250057

$4.00

30

Torx Flange Screw M6 X 16

420641048

$2.82

31

Oil Radiator

420888879

$303.70

32

Oil Pressure Switch

420256919

$46.24

33

Temperature Sensor

278002895

$36.54

34

Oil Level Tube

420956944

$109.67

35

O-Ring

420950810

$14.10

36

Oil Level Gauge

420956933

$24.60

37

Cover

420660037

$22.36

38

Thrust Washer

420627494

$7.01

39

Vent Valve Ass'y | Includes no. 39-41

420856506

$77.58

40

V-Ring 20S FPM Blow By Valve

420630125

$10.76

41

O-Ring

420950870

$5.06

42

Torx Flange Screw M6 X 25

420641238

$3.07

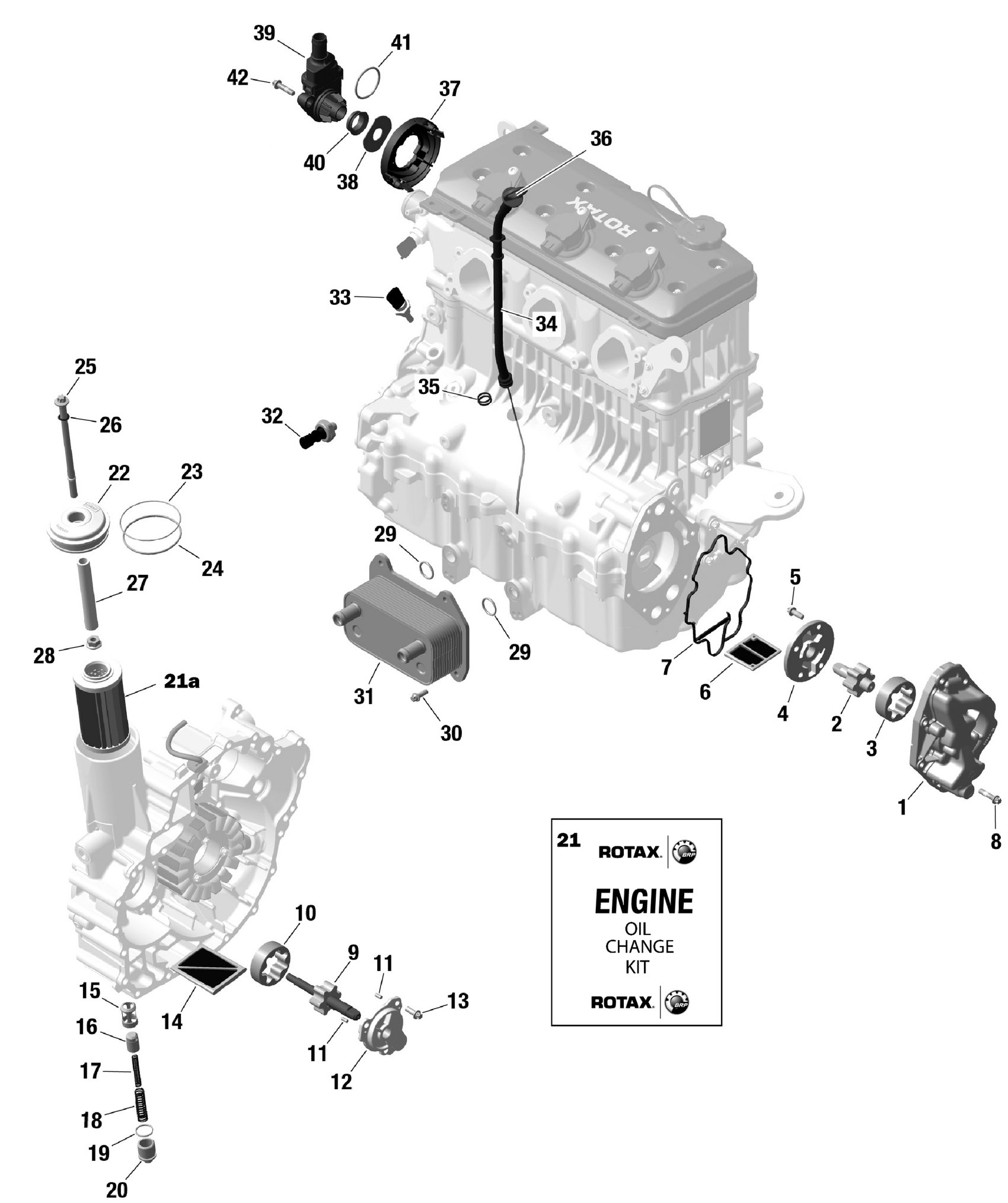

Sea-doo CRUISE 18 - 230 - 45RA - Blue - Trailer Paint - CAT2B, 2024 ROTAX - Engine Lubrication Diagram

Oil Pump Housing

Oil Pump Shaft

Oil Pump Rotor 16 mm

Oil Pump Cover

Torx Flange Screw M6 X 16

Oil Sieve

Oil Suction Pump Gasket | Included in gasket kit

Torx Flange Screw M6 X 25

Pump Shaft Ass'y

Oil Pump Rotor 16 mm

Needle Pin

Oil Pump Cover

Torx Flange Screw M6 X 16

Oil Sieve

Valve Seat Sleeve

Piston Valve

Compression Spring

Compression Spring

O-Ring

Plug Screw M20 X 1.5

4T 5W-40 Synthetic Blend Oil

4T 5W-40 Synthetic Oil This part replaces 9779134.

4T 5W-40 Synthetic Oil

4T 5W-40 Synthetic Oil This part replaces 9779134.

4T 10W-50 Synthetic Oil

4T 10W-50 Synthetic Oil

4T 5W-40 Synthetic Blend Oil Change Kit for engines of 1500 cc or more

Oil Filter

Oil Filter Cover

O-Ring

O-Ring

Hex Screw M8 X 140.5

O-Ring

Spacer

Hex. Nut M8

O-Ring

Torx Flange Screw M6 X 16

Oil Radiator

Oil Pressure Switch

Temperature Sensor

Oil Level Tube

O-Ring

Oil Level Gauge

Cover

Thrust Washer

Vent Valve Ass'y | Includes no. 39-41

V-Ring 20S FPM Blow By Valve

O-Ring

Torx Flange Screw M6 X 25
