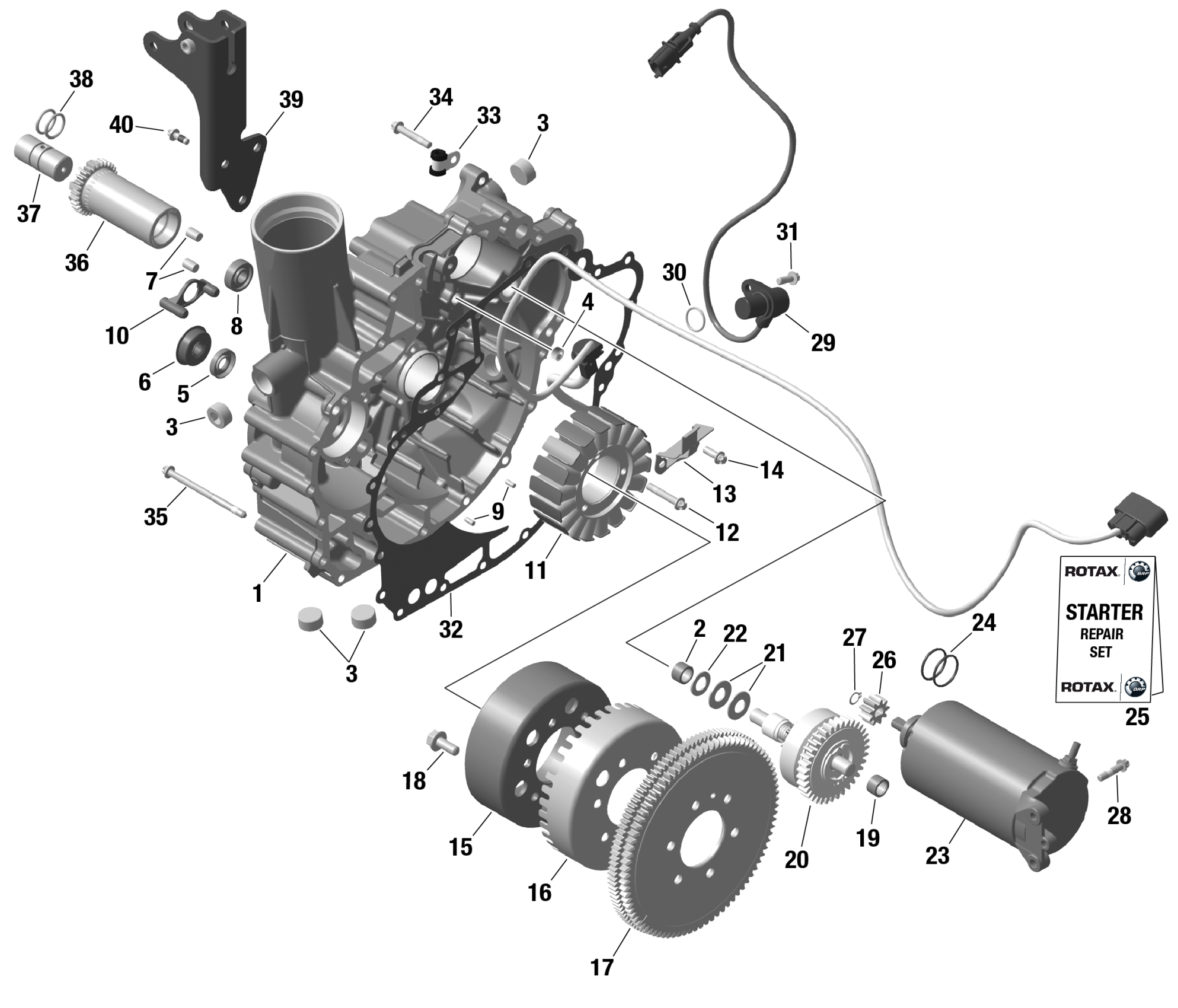

Sea-doo CRUISE 18 - 230 - 45PH - Blue - Trailer Paint - CAT2A, 2023 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes no. 1-9

420912421

$643.25

2

Needle Bushing

420232482

$17.88

3

Plug Screw M20 X 1.5

420641317

$12.15

4

Plug Screw M10 X 1

420641323

$13.18

5

Oil Seal

420650315

$11.04

6

Rotary Seal

420650371

$41.01

7

Center Pin 8 X 12

420632010

$3.52

8

Double Sealed Bearing

420232103

$13.94

9

Needle Pin

420929070

$1.79

10

Oil Plug

420460986

$14.90

11

Stator Plate

420889728

$319.49

12

Torx Flange Screw M6 X 35

420641258

$3.19

13

Retaining Plate

420926300

$14.90

14

Torx Flange Screw M6 X 16

420641048

$2.82

15

Magneto Flywheel

420296900

$461.99

16

Trigger Wheel

420966851

$17.13

17

Starter Double Gear 87/86T

420834871

$287.28

18

Hex Screw

295501162

$13.16

19

Needle Bushing

420232482

$17.88

20

Starter Drive

420888041

$246.24

21

Spring Washer

420238300

$7.01

22

Thrust Washer

420827280

$7.90

23

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

24

O-Ring

420631310

$4.15

25

Carbon Brush Set

420881340

$60.42

26

Starter Gear, 9 Teeth

420834522

$68.63

27

Retaining Ring

420845601

$4.28

28

Torx Flange Screw M6 X 25

420641238

$3.07

29

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

30

O-Ring

420431580

$14.10

31

Torx Flange Screw M6 X 16

420641048

$2.82

32

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$22.36

33

Clamp

420853414

$17.13

34

Torx Flange Screw M6 X 35

420641258

$3.19

35

Torx Flange Screw M6 X 85

420641228

$7.01

36

Input Shaft

420220934

$104.45

37

Spacer

420244034

$19.37

38

O-Ring

420250056

$0.72

39

BRACKET - Call your local BRP dealership

420851545

Unavailable

40

Torx Flange Screw M8 X 25

420641248

$5.42
