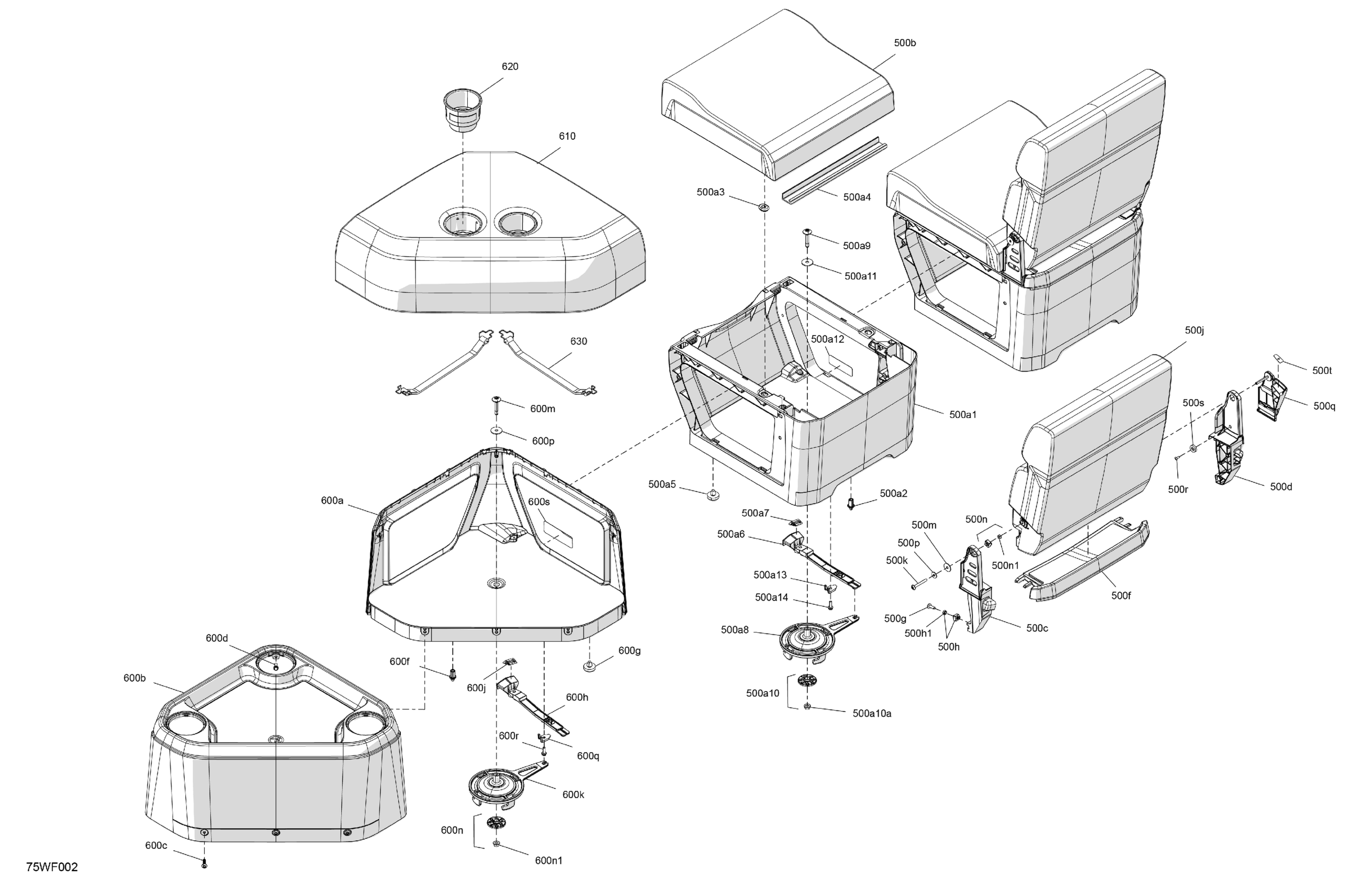

Sea-doo CRUISE 18 - 170 - 44TA - Neo Mint - Trailer Galv - CAT-2-50-501 - 2026 FURNITURE - Stern Bench Diagram

#

Description
Price

500a1

Seat Support Service Kit

295101127

Unavailable

500a2

Locator Rod

269003492

$4.71

500a3

Oval Washer

705000321

$4.64

500a4

Gutter

269003483

$2.75

500a5

Rubber Stopper

269003502

$6.45

500a6

Lever Latch Service Kit

295101126

Unavailable

500a7

Lever Decal

219905993

Unavailable

500a8

Seat Anchorage

269003311

$14.27

500a9

Torx Head M8 X 50 S.GRIP

250001154

$8.80

500a10

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

500a10a

Hex. Flange Nut M8

233181600

$0.86

500a11

Flat Washer 8 mm

250200130

$2.61

500a12

Seat Anchorage Warning Label

219905883

Unavailable

500a13

Guide

269004160

$10.14

500a14

Hex. Flange Screw M6.81 x 20

243162060

$3.30

500b

Seat Cushion Ass'y

269003224

Unavailable

500c

LH Overmolded Support

269003609

$110.74

500d

RH Overmolded Support

269003764

$110.74

500f

Support Trim

269003765

$13.83

500g

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$2.90

500h

Nut Housing M6 | Includes 555 to 555b

269502544

$5.91

500h1

Elastic Stop Nut M6, Brass

232561200

$3.51

500j

Tilting Backrest Ass'y

269003603

$258.43

500k

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

500m

Flat Washer M6 X 25

250200044

$2.31

500n

Nut Housing M6 | Includes 555 to 555b

269502544

$5.91

500n1

Elastic Stop Nut M6, Brass

232561200

$3.51

500p

Flat Washer 6 mm

234062100

$1.03

500q

Backrest Stopper

269003892

$15.35

500r

Screw K40 X 10

250001119

$1.64

500s

Stopper

269003895

$5.52

500t

Bute File Decal

219906226

$8.92

600a

Corner Table Base

269003315

$429.97

600b

Top Corner Table

269003533

$429.97

600c

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

600d

Hex. Flange Screw M6.81 x 20

243162060

$3.30

600f

Locator Rod

269003492

$4.71

600g

Rubber Stopper

269003502

$6.45

600h

Lever Latch Service Kit

295101126

Unavailable

600j

Lever Decal

219905993

Unavailable

600k

Seat Anchorage

269003311

$14.27

600m

Torx Head M8 X 50 S.GRIP

250001154

$8.80

600n

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

600n1

Hex. Flange Nut M8

233181600

$0.86

600p

Flat Washer 8 mm

250200130

$2.61

600q

Guide

269004160

$10.14

600r

Hex. Flange Screw M6.81 x 20

243162060

$3.30

600s

Seat Anchorage Warning Label

219905883

Unavailable

610

Table Trim Ass'y

269003525

$415.35

620

Cup Holder

269802017

$17.66

630

Strap

293850143

$16.89
