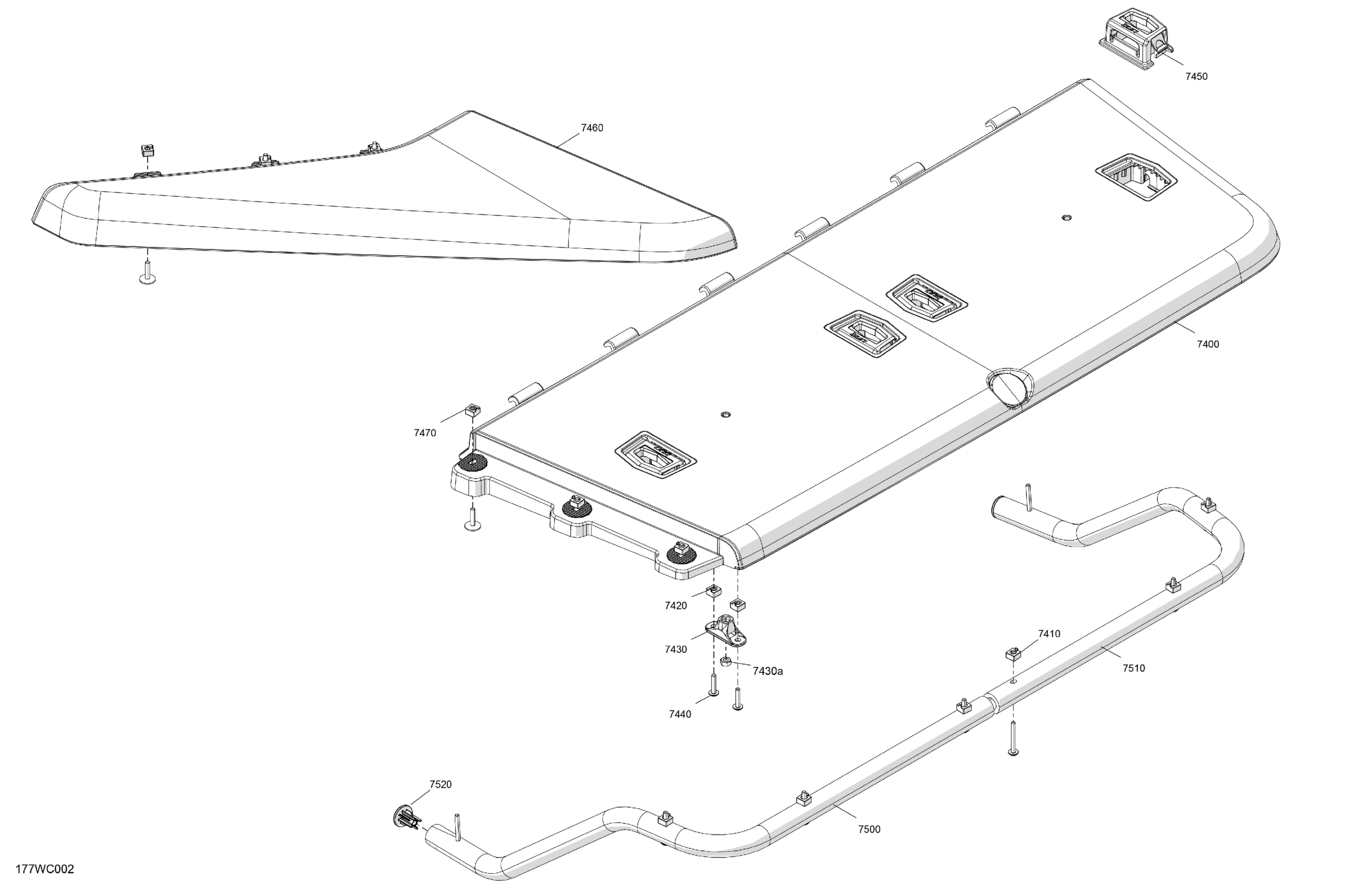

Sea-doo CRUISE 18 - 130 - 46PA - Blue - Trailer Paint - CAT2B, 2023 WATERSPORTS - Swim Platform Diagram

Description

Price

7400

Central Platform Service Kit

295101097

Unavailable

7410

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.07

7420

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.07

7430

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

7430a

Hex Nut M8

232081200

$1.19

7440

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

7450

Linq Bases Kit

295100858

$24.60

7455

Platform Plate | Not shown

291005497

Unavailable

7460

Lat Deck

291005604

Unavailable

7470

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.07

7480

Plateform Reinforcement | Not shown

291006041

$34.30

7485

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

7490

Flat Washer M6, Stainless

234062600

$0.73

7495

Elastic Stop Nut M6, Brass

232561200

$4.03

7500

LH Deck Support

291005457

Unavailable

7510

RH Deck Support

291006066

Unavailable

7520

Swim Plateform Cap

291005634

Unavailable
