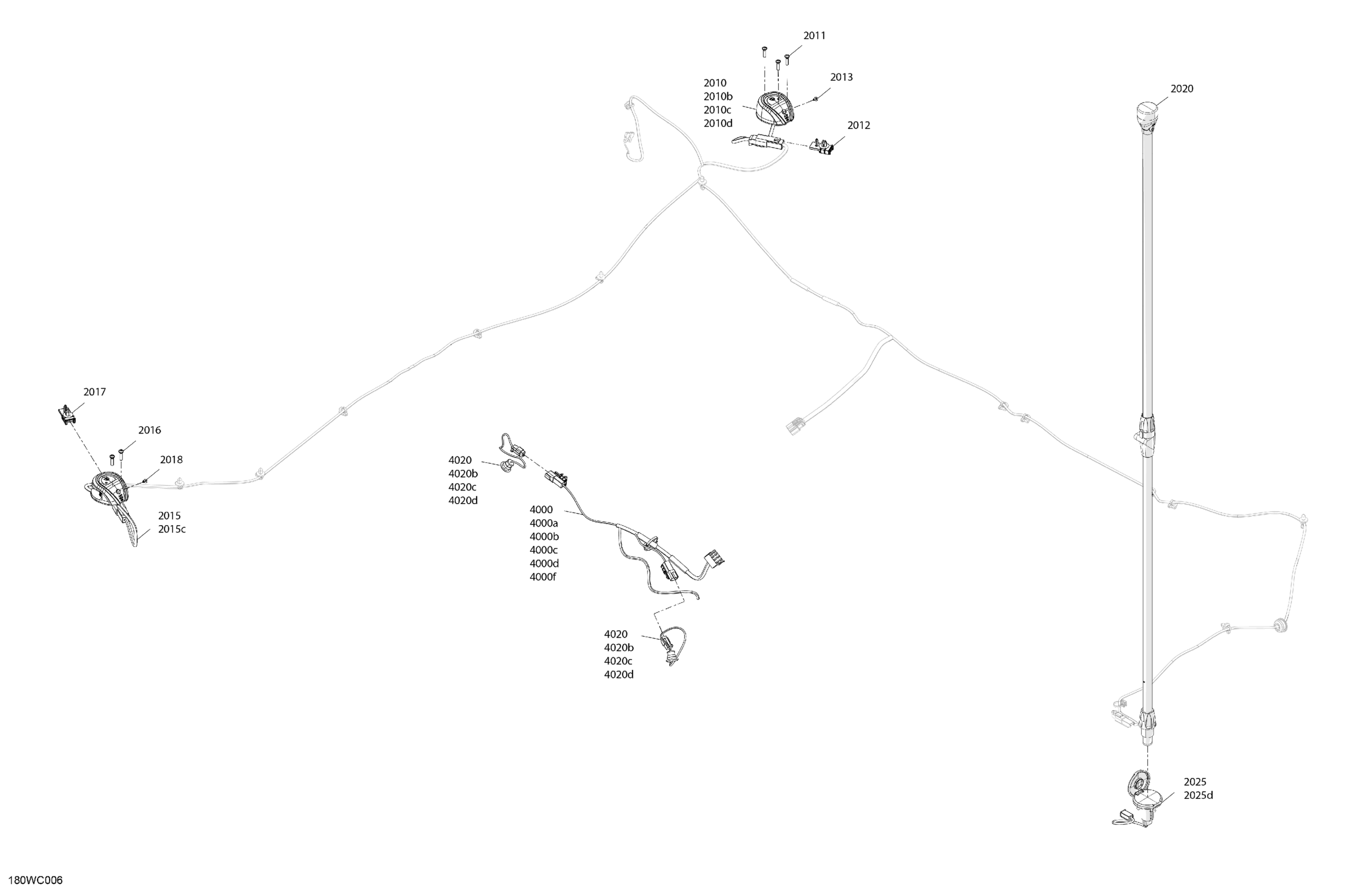

Sea-doo North America - CRUISE 18 - 130 - 46PA - Blue - Trailer Paint - CAT2B, 2023 09-ELECTRICALS - Lighting Diagram

Description

Price

2010

Green, Side Navigation Light Ass'y | Includes 2010 to 2010d

278004019

$254.49

2010b

Amphenol Female Connector 2 Cavities

515178579

$10.38

2010c

Female Terminal

710005438

$4.29

2010d

Amphenol Lock Connector

515178580

$3.91

2011

Flange Torx Screw K40 X 16

250000287

$2.11

2012

Deutsch Connector Support

710006744

$3.49

2013

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

2015

Red Side Navigatin Light Ass'y | Includes 2015 to 2015d

278004020

$254.49

2015c

Terminal

710005748

$3.49

2016

Flange Torx Screw K40 X 16

250000287

$2.11

2017

Deutsch Connector Support

710006744

$3.49

2018

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

2020

White, All Round Navigation Light

278003778

$249.99

2025

Navigation Table Base Ass'y | Includes 2025 to 2025f

278004021

$34.99

2025d

Terminal

710005748

$3.49

4000

Accessory Lighting Wiring Harness

278003640

$39.99

4000a

Housing

515178023

$14.74

4000b

Sealing Cap

278002860

$1.79

4000c

Male Terminal

515178013

$3.19

4000d

Terminal

710005748

$3.49

4000f

Terminal

710005748

$3.49

4020

Light Console Ass'y | Includes 4020 to 4020d

278004025

$56.99

4020b

Amphenol Female Connector 2 Cavities

515178579

$10.38

4020c

Female Terminal

710005439

$4.44

4020d

Amphenol Lock Connector

515178580

$3.91
