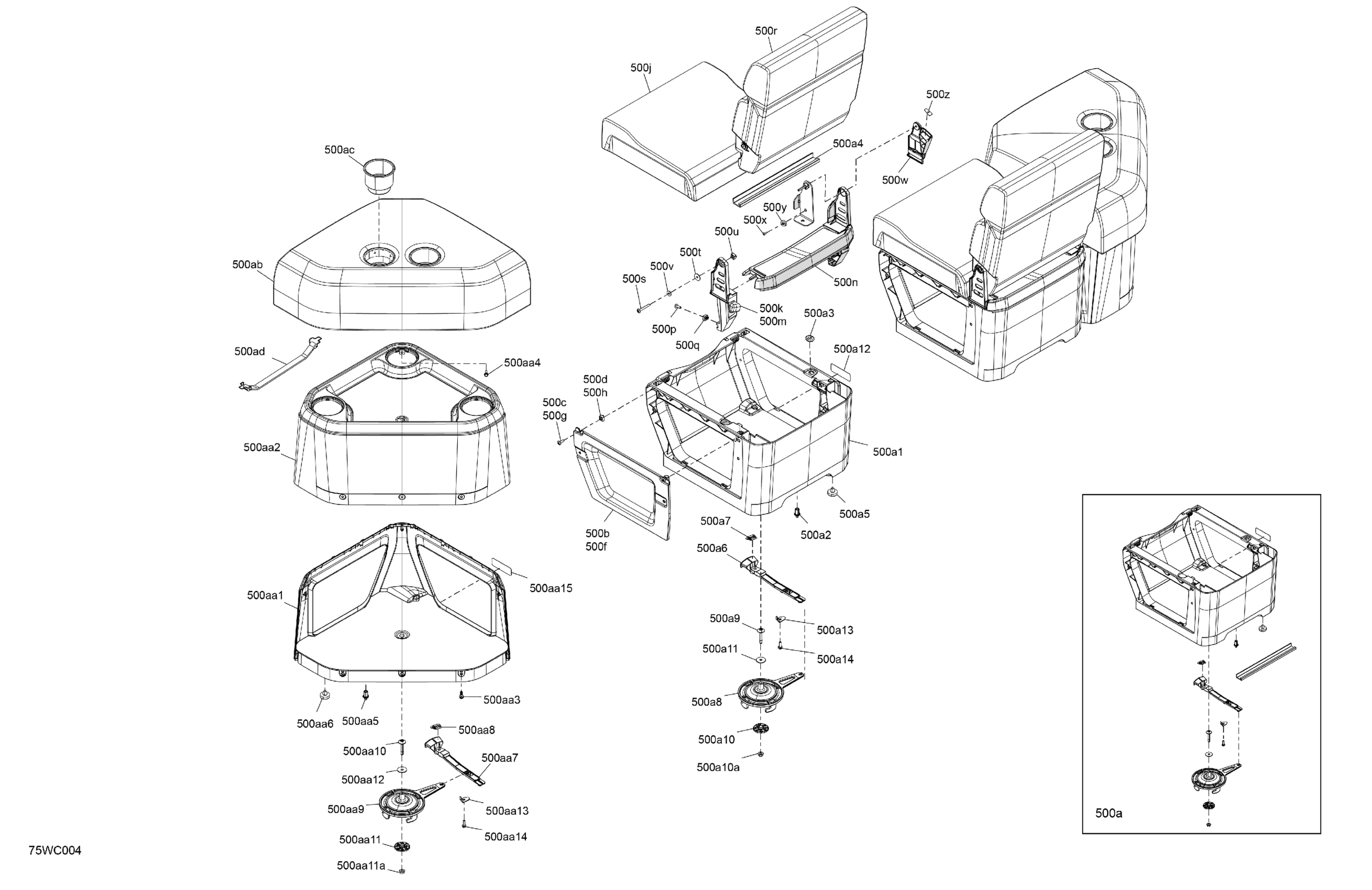

Sea-doo CRUISE 18 - 130 - 46PA - Blue - Trailer Paint - CAT2B, 2023 HELM - Stern Bench Diagram

#

Description
Price

500a

Seat Support Service Kit

295101127

Unavailable

500a1

Seat Support Service Kit

295101127

Unavailable

500a2

Locator Rod

269003492

$4.71

500a3

Oval Washer

705000321

$4.64

500a4

Gutter

269003483

$2.75

500a5

Rubber Stopper

269003502

$6.45

500a6

Lever Latch Service Kit

295101126

Unavailable

500a7

Lever Decal

219905993

Unavailable

500a8

Seat Anchorage

269003311

$14.27

500a9

Torx Head M8 X 50 S.GRIP

250001154

$8.80

500a10

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

500a10a

Hex. Flange Nut M8

233181600

$0.86

500a11

Flat Washer 8 mm

250200130

$2.61

500a12

Seat Anchorage Warning Label

219905883

Unavailable

500a13

Guide

269003887

$10.14

500a14

Hex. Flange Screw M6.81 x 20

243162060

$3.30

500b

LH Panel Seat Switch Kit

295101046

Unavailable

500c

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$2.90

500d

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.91

500f

RH Panel Seat Switch Kit

295101047

Unavailable

500g

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$2.90

500h

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.91

500j

Seat Cushion Ass'y

269003224

Unavailable

500k

LH Overmolded Support

269003609

$110.74

500m

RH Overmolded Support

269003764

$110.74

500n

Support Trim

269003765

$13.83

500p

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$2.90

500q

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.91

500r

Tilting Backrest Ass'y

269003603

$258.43

500s

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

500t

Flat Washer M6 X 25

250200044

$2.31

500u

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.91

500v

Flat Washer 6 mm

234062100

$1.03

500w

Backrest Stopper

269003892

$15.35

500x

Screw K40 X 10

250001119

$1.64

500y

Stopper

269003895

$5.52

500z

Bute File Decal

219906226

$8.92

500aa1

Corner Table Base

269003315

$429.97

500aa2

Top Corner Table

269003533

$429.97

500aa3

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

500aa4

Hex. Flange Screw M6.81 x 20

243162060

$3.30

500aa5

Locator Rod

269003492

$4.71

500aa6

Rubber Stopper

269003502

$6.45

500aa7

Lever Latch Service Kit

295101126

Unavailable

500aa8

Lever Decal

219905993

Unavailable

500aa9

Seat Anchorage

269003311

$14.27

500aa10

Torx Head M8 X 50 S.GRIP

250001154

$8.80

500aa11

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

500aa11a

Hex. Flange Nut M8

233181600

$0.86

500aa12

Flat Washer 8 mm

250200130

$2.61

500aa13

Guide

269003887

$10.14

500aa14

Hex. Flange Screw M6.81 x 20

243162060

$3.30

500aa15

Seat Anchorage Warning Label

219905883

Unavailable

500ab

Table Trim Ass'y

269003525

$415.35

500ac

Cup Holder

269003645

$17.66

500ad

Strap

293850143

$16.89
