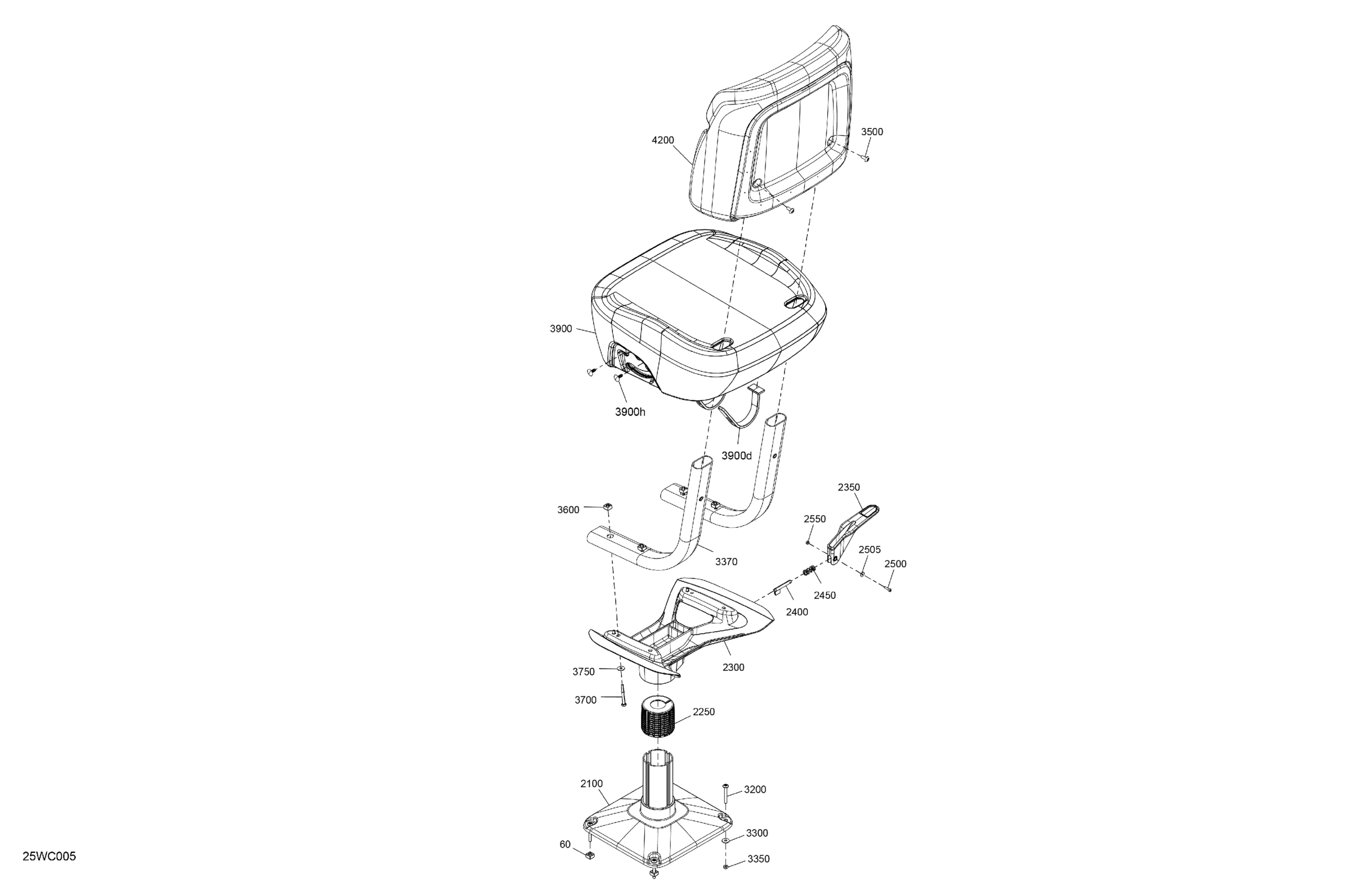

Sea-doo CRUISE 18 - 130 - 46PA - Blue - Trailer Paint - CAT2B, 2023 HELM - Driver Seat Diagram

M6 Nut Housing | Includes 550f to 550f2

269502497

$6.53

Seat Anchorage Service Kit

295101108

$53.99

Sleeve

281000022

$6.47

Seat Support

281000006

$88.99

Seat Latch

281000020

$8.79

Latch Rod

281000051

$29.99

Compression Spring

281000063

$6.67

Black, Socket Head Screw M4 X 16

250001011

$1.47

Flat Washer 4 mm, Stainless

234042600

$1.15

Elastic Stop Nut M4

232541200

$2.11

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Backrest Support Ass'y

281000114

$53.99

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.70

M6 Nut Housing | Includes 550f to 550f2

269502497

$6.53

Hex. Screw M6 x 55

207065560

$1.01

Flat Washer M6, Stainless

234062600

$0.77

Seat Cushion Ass'y | Includes 3900 to 3900h

281000007

$279.99

Strap

269502417

$17.69

Black, Dart

293730011

$0.99

Driver Backrest Ass'y

281000026

$349.99
