03- HELM - Console

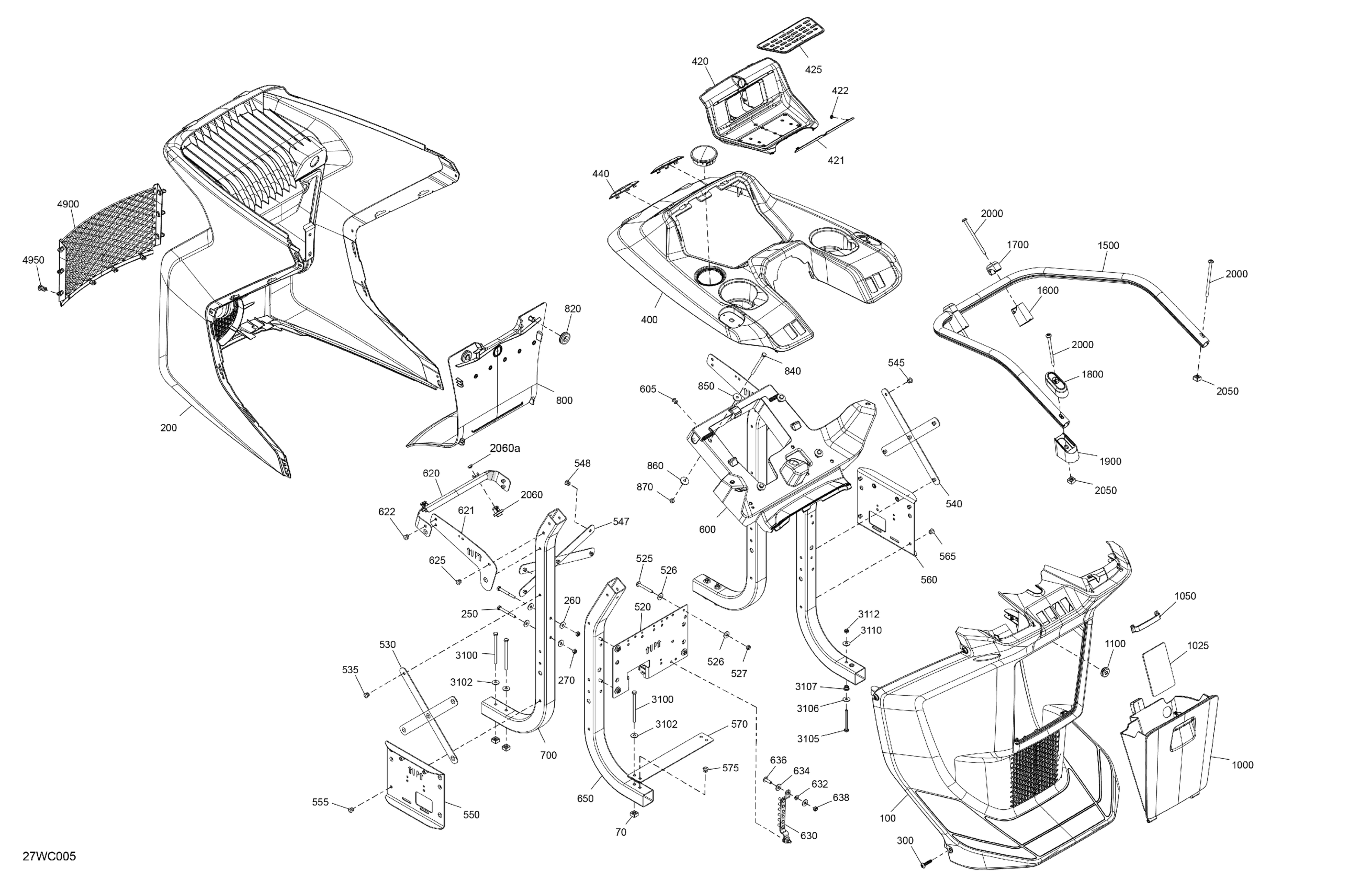

Sea-doo North America - CRUISE 18 - 130 - 46PA - Blue - Trailer Paint - CAT2B, 2023 03- HELM - Console Diagram
#
70
M6 Nut Housing | Includes 550f to 550f2
269502497
$6.53
100
Rear Console Panel
281000001
$204.99
200
Front Console Panel
281000002
$204.99
250
Hex. Screw M6 x 55
207065560
$1.01
260
Flat Washer M6, Stainless
234062600
$0.77
270
Elastic Stop Nut M6, Brass
232561200
$4.23
300
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
400
Upper Console Panel
281000004
$66.99
420
Gauge Support
281000037
$43.99
421
Iceland Grey, Upper Gauge Trim
281000127
$6.19
422
Push Nut
250100206
$1.01
425
Soft Gauge Trim
281000146
$19.49
440
Windshield Trim
281000082
$35.99
520
Rear Reinforcement
281000057
$34.99
525
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
526
Flat Washer M6, Stainless
234062600
$0.77
527
Elastic Stop Nut M6, Brass
232561200
$4.23
530
Lateral Reinforcement
281000058
$6.79
535
Rivet Hemlock 6,4 X 15.6
293150251
$4.44
540
Lateral Reinforcement
281000058
$6.79
545
Rivet Hemlock 6,4 X 15.6
293150251
$4.44
547
Lateral Reinforcement
281000058
$6.79
548
Rivet Hemlock 6,4 X 15.6
293150251
$4.44
550
Amplifier Support Ass'y
281000123
$42.99
555
Rivet Hemlock 6,4 X 15.6
293150251
$4.44
560
Amplifier Support Ass'y
281000123
$42.99
565
Rivet Hemlock 6,4 X 15.6
293150251
$4.44
570
Rear Lower Reinforcement
281000081
$6.39
575
Rivet Hemlock 6,4 X 15.6
293150251
$4.44
600
Steering Colum Reinforcement
281000060
$51.99
605
Rivet Hemlock 6,4 X 15.6
293150251
$4.44
620
Hand Rail Reinforcement
281000103
$34.99
621
Lateral Reinforcement
281000125
$14.99
622
Rivet Hemlock 6,4 X 15.6
293150251
$4.44
625
Rivet Hemlock 6,4 X 15.6
293150251
$4.44
630
Busbar Ass'y
281000170
$35.99
632
Bushing
293900086
$2.79
634
Flat Washer 6 mm
234062100
$1.26
636
Torx Screw M6 X 20, Stainless | Package XDSXRS
250000234
$3.69
638
Elastic Stop Nut M6, Brass
232561200
$4.23
650
Rear Tube Support Ass'y
281000200
$46.99
700
Front Tube Support
281000062
$46.99
800
Access Panel
281000000
$249.99
820
Grommet
517303756
$4.09
840
Hex. Screw M6 X 90
207169060
$4.34
850
Flat Washer M6.6 X 22
250200022
$2.72
860
Flat Washer M6.6 X 22
250200022
$2.72
870
Elastic Stop Nut M6, Brass
232561200
$4.23
1000
Storage Box Service Kit
295101093
$63.99
1025
Self Adhesive Protective Foam
281000110
$2.69
1050
Elastic Strip
281000155
$13.49
1100
Grommet
517307161
$2.79
1500
Console Hand Rail
281000024
$244.99
1600
Front Lower Hand Rail Anchorage
281000047
$6.59
1700
Front Upper Hand Rail Anchorage
281000048
$6.59
1800
Rear Upper Hand Rail Anchorage
281000049
$6.59
1900
Rear Lower Hand Rail Anchorage
281000112
$14.99
2000
Cone Torx Truss Screw HD.M6 X 100
250001163
$3.91
2050
M6 Nut Housing | Includes 550f to 550f2
269502497
$6.53
2060
Housing Nut Overmolded | Includes 2060 to 2060a
291004662
$2.00
2060a
Elastic Stop Nut M6, Brass
232561200
$4.23
3100
Hex. Screw M6 X 90
207169060
$4.34
3102
Flat Washer M6, Stainless
234062600
$0.77
3105
Hex. Cap Screw
207166060
$4.50
3106
Flat Washer M6, Stainless
234062600
$0.77
3107
Nut Flange Elastic M6
233261200
$0.99
3110
Flat Washer M6, Stainless
234062600
$0.77
3112
Elastic Stop Nut M6, Brass
232561200
$4.23
4900
Net Ass'y
281000156
$99.99
4950
Tuflok Plastic Rivet
293150230
$1.47
