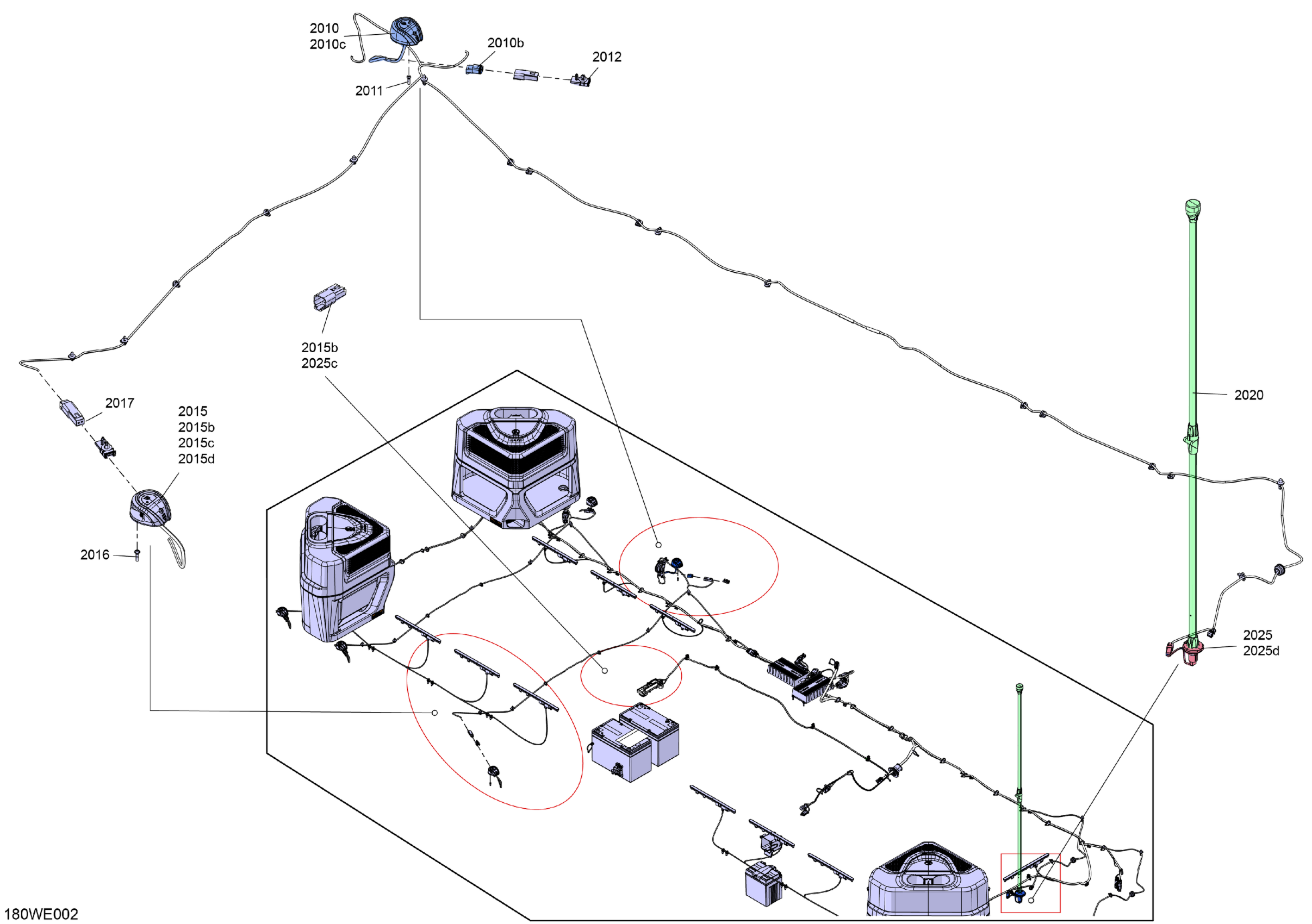

Sea-doo CRUISE 18 - 130 - 43SA - Dusty Navy - Trailer Paint - CAT2B - 2025 ELECTRIC - Lighting Diagram

Description

Price

2010

Green, Side Navigation Light Ass'y | Includes 2010 to 2010d

278004019

Unavailable

2010b

Amphenol Female Connector 2 Cavities

515178579

$10.14

2010c

Female Terminal

710005438

$4.00

2010d

Amphenol Lock Connector

515178580

$3.68

2011

Flange Torx Screw K40 X 16

250000287

$1.74

2012

Deutsch Connector Support

710006744

$3.23

2013

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

2015

Red Side Navigatin Light Ass'y | Includes 2015 to 2015d

278004020

Unavailable

2015b

Male Amphenol Connector 2 Cavities | Not Shown

515179135

$10.15

2015c

Terminal

710005748

$2.72

2015d

Amphenol Connector Lock | Not Shown

515179136

$3.85

2016

Flange Torx Screw K40 X 16

250000287

$1.74

2017

Deutsch Connector Support

710006744

$3.23

2018

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

2020

White, All Round Navigation Light

278003778

$235.35

2025

Navigation Table Base Ass'y | Includes 2025 to 2025f

278004021

Unavailable

2025c

Male Amphenol Connector 2 Cavities | Not Shown

515179135

$10.15

2025d

Terminal

710005748

$2.72

2025f

Amphenol Connector Lock | Not Shown

515179136

$3.85

4020

Light Console Ass'y | Not Shown

278004508

Unavailable
