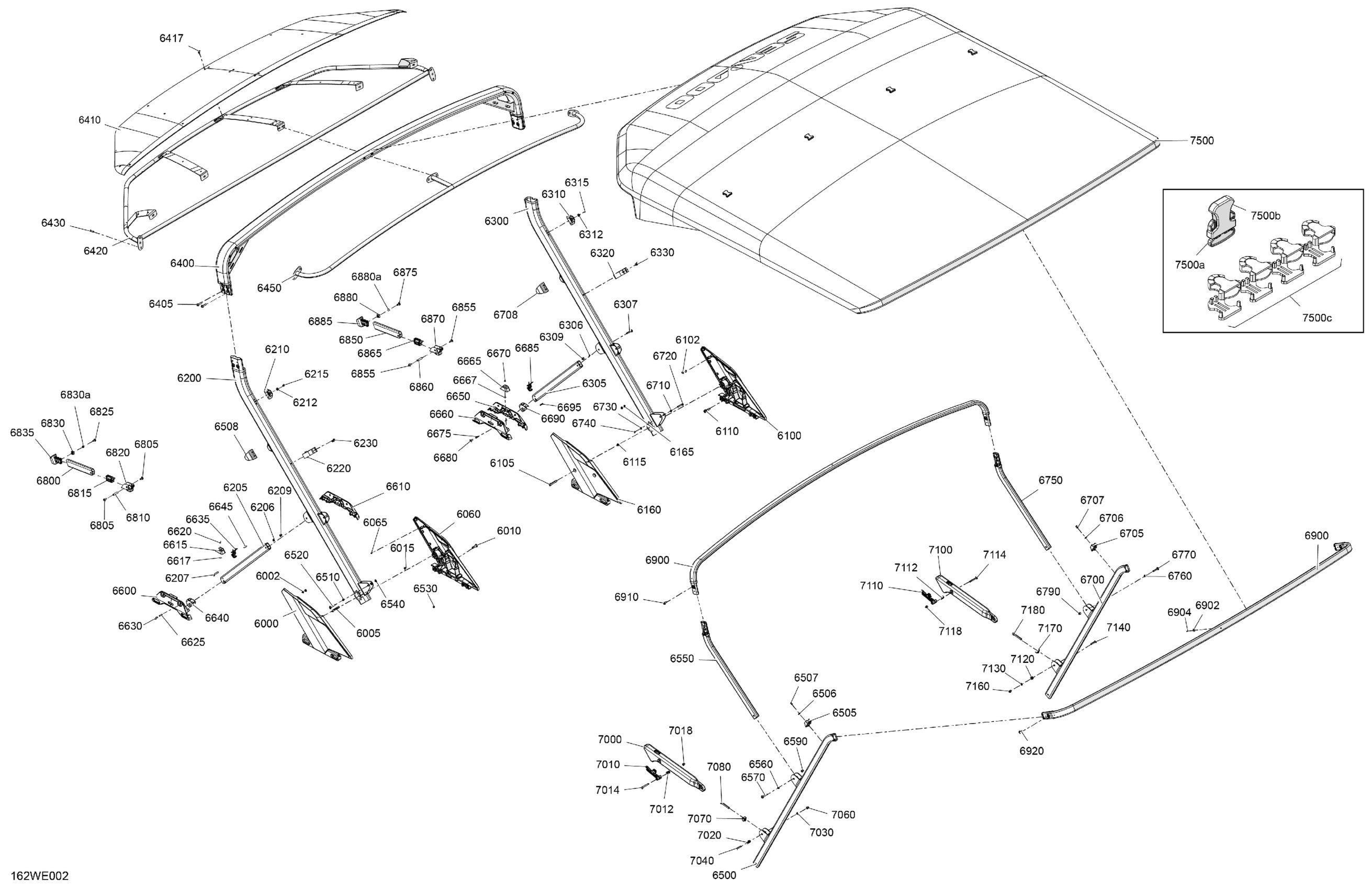

Sea-doo CRUISE 18 - 130 - 43SA - Dusty Navy - Trailer Paint - CAT2B - 2025 BODY - Double Bimini Top Diagram

LH Outer Bimini Anchorage

281300518

Unavailable

Black Dart 5 mm

293730053

$4.28

Socket Head Screw M8 X 45, S. GRIP

205584560

$3.22

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.31

Stainless, Flat Washer 8 mm

234081600

$0.52

LH Inner Bimini Anchorage

281300520

Unavailable

Black Dart 5 mm

293730053

$4.28

RH Outer Bimini Anchorage

281300522

Unavailable

Black Dart 5 mm

293730053

$4.28

Socket Head Screw M8 X 45, S. GRIP

205584560

$3.22

Socket Head Screw M8 X 30, Scotch Grip

205583060

$3.31

Stainless, Flat Washer 8 mm

234081600

$0.52

RH Inner Bimini Anchorage

281300524

Unavailable

Black Dart 5 mm

293730053

$4.28

Profiled Tube

281300735

$172.36

Profiled Tube

281300390

Unavailable

Bushing

293900086

$2.06

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

Hexagonal Jam Nut M6

232161600

$10.55

Rubber Stopper

281300607

$3.88

Stainless Flat Washer M6

234061600

$0.28

Pop Rivet 3/16"

293150008

$0.46

Retaining Strap

281300606

Unavailable

Pop Rivet 3/16"

293150123

$3.94

Profiled Tube

281300735

$172.36

Profiled Tube

281300390

Unavailable

Bushing

293900086

$2.06

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

Hexagonal Jam Nut M6

232161600

$10.55

Rubber Stopper

281300607

$3.88

Stainless Flat Washer M6

234061600

$0.28

Pop Rivet 3/16"

293150008

$0.46

Retaining Strap

281300606

Unavailable

Pop Rivet 3/16"

293150123

$3.94

Front Harness Service Kit

295101118

Unavailable

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.66

Roof Reinforcement

281300705

$50.72

Black, Dart

414644300

$0.90

Soft Roof Visor

281300736

$158.93

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

Rear Soft Roof Visor

281300456

Unavailable

Profiled Tube

281300385

Unavailable

Rubber Stopper

281300607

$3.88

Stainless Flat Washer M6

234061600

$0.28

Pop Rivet 3/16"

293150008

$0.46

Bimini Stopper

281301015

Unavailable

Bushing

293900086

$2.06

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

Stainless Flat Washer M6

234061600

$0.28

Elastic Stop Nut M6, Brass

232561200

$4.03

Profiled Tube

281300534

Unavailable

Bushing

293900086

$2.06

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

Hexagonal Jam Nut M6

232161600

$10.55

Outer Anchorage Support

281300422

Unavailable

Inner Anchorage Support

281300429

Unavailable

Rubber Stopper

281300607

$3.88

Stainless Flat Washer M6

234061600

$0.28

Pop Rivet 3/16"

293150008

$0.46

Rod Latch

281300566

$12.21

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

Lever Latch

281300567

Unavailable

Latch Trim

281300573

Unavailable

Spring Pin 3/16 X 3/4

250400100

$2.07

Outer Anchorage Support

281300422

Unavailable

Inner Anchorage Support

281300429

Unavailable

Rubber Stopper

281300607

$3.88

Stainless Flat Washer M6

234061600

$0.28

Pop Rivet 3/16"

293150008

$0.46

Rod Latch

281300566

$12.21

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

Lever Latch

281300567

Unavailable

Latch Trim

281300573

Unavailable

Spring Pin 3/16 X 3/4

250400100

$2.07

Profiled Tube

281300385

Unavailable

Rubber Stopper

281300607

$3.88

Stainless Flat Washer M6

234061600

$0.28

Pop Rivet 3/16"

293150008

$0.46

Bimini Stopper

281301015

Unavailable

Bushing

293900086

$2.06

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

Stainless Flat Washer M6

234061600

$0.28

Elastic Stop Nut M6, Brass

232561200

$4.03

Profiled Tube

281300534

Unavailable

Bushing

293900086

$2.06

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

Hexagonal Jam Nut M6

232161600

$10.55

Profiled Tube

281300761

Unavailable

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

Rod Latch

281300566

$12.21

Latch Pivot

281300839

Unavailable

Latch Guide

281300838

Unavailable

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

Elastic Stop Nut M6, Brass

232561200

$4.03

Bimini Support Stopper

281300819

Unavailable

Profiled Tube

281300761

Unavailable

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

Rod Latch

281300566

$12.21

Latch Pivot

281300839

Unavailable

Latch Guide

281300838

Unavailable

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

Elastic Stop Nut M6, Brass

232561200

$4.03

Bimini Support Stopper

281300819

Unavailable

Rear Hoop

281300395

Unavailable

Fastener Snap

293730102

Unavailable

Pop RIvet 1/8 X ,375

293150285

$0.27

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

Lock Lever

281300552

Unavailable

LH Tensioner

281300575

Unavailable

Cut Bushing

281300554

Unavailable

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

Hexagonal Jam Nut M6

232161600

$10.55

Cut Bushing

281300554

Unavailable

Bushing

293900086

$2.06

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

Hexagonal Jam Nut M6

232161600

$10.55

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

Socket Head Screw M8 X 55

250001226

$4.54

Lock Lever

281300552

Unavailable

RH Tensioner

281300553

Unavailable

Cut Bushing

281300554

Unavailable

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

Hexagonal Jam Nut M6

232161600

$10.55

Cut Bushing

281300554

Unavailable

Bushing

293900086

$2.06

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.66

Hexagonal Jam Nut M6

232161600

$10.55

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

Socket Head Screw M8 X 55

250001226

$4.54

Bimini Soft Top | Includes 7500 to 7500c

281300691

Unavailable

Male Buckle

296000462

Unavailable

Female Buckle

296000463

Unavailable

Buckle Kit

295101472

Unavailable
