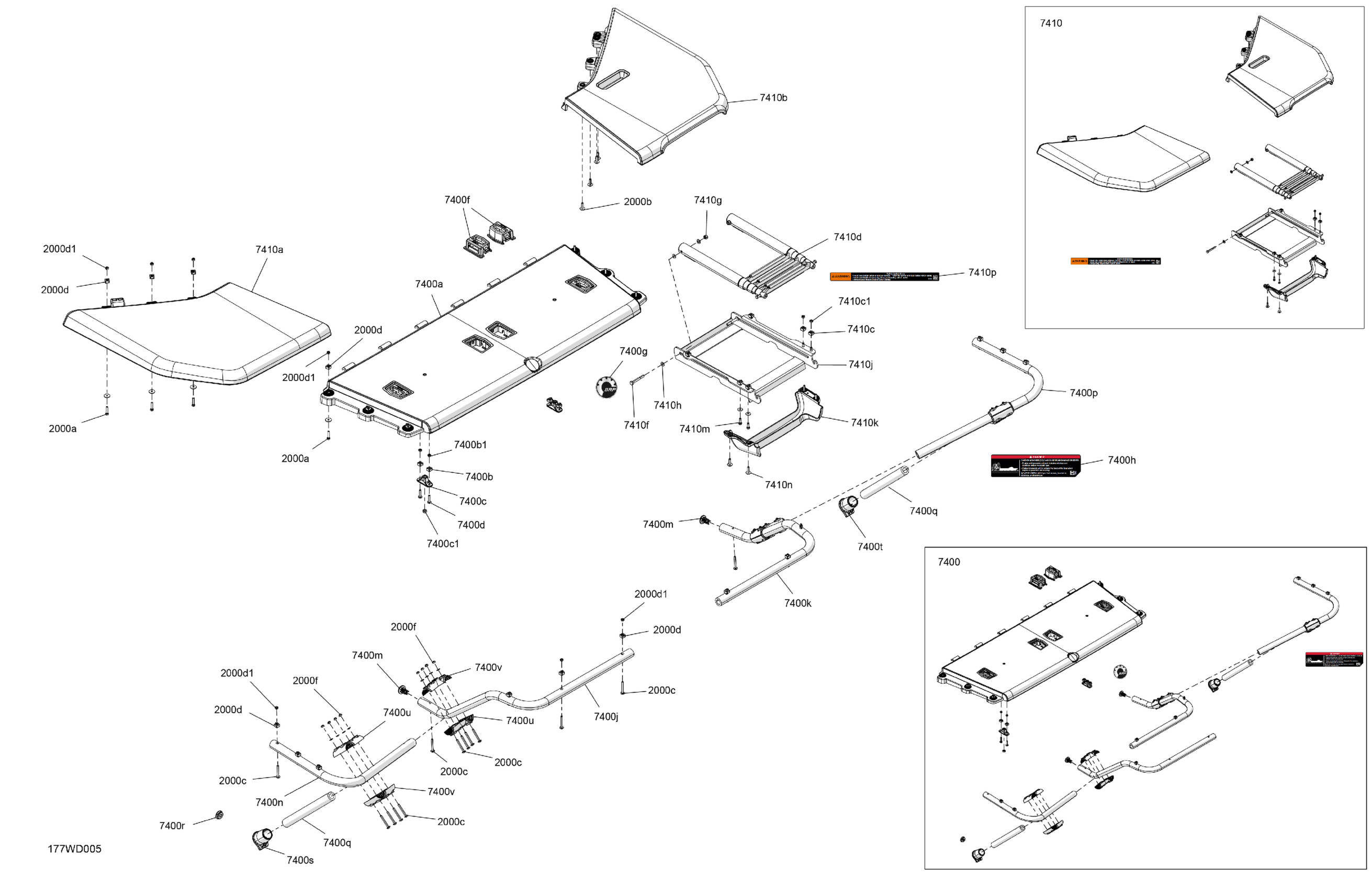

Sea-doo CRUISE 18 - 130 - 43RA - Blue - Trailer Paint - CAT2B, 2024 WATERSPORTS - Swim Platform Diagram

Description

Price

2000a

Hex Sems Screw M6X30

250001183

$2.64

2000b

Hexagonal Cap Screw M6 X 25

250000978

$4.15

2000c

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

2000d

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

2000d1

Elastic Stop Nut M6, Brass

232561200

$4.03

2000f

Nut Flange Elastic M6

233261200

$0.94

7400

Swim Platform Kit | Includes 7400 to 7400v

291006388

Unavailable

7400a

Deep Black, Central Deck

291006568

Unavailable

7400b

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

7400b1

Elastic Stop Nut M6, Brass

232561200

$4.03

7400c

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

7400c1

Hex Nut M8

232081200

$1.19

7400d

Screw-Torx Truss Cone Head M6X25

250001116

$3.90

7400f

Linq Bases Kit

295100858

$24.60

7400g

BRP Logo Emblem 48 MM UV

704909040

$14.78

7400h

DANGER - Carbon Monoxide Label

219906093

Unavailable

7400j

LH Deck Support

291006065

Unavailable

7400k

RH Deck Support

291006066

Unavailable

7400m

Swim Plateform Cap

291005634

Unavailable

7400n

LH Deck Support

291006047

Unavailable

7400p

RH Deck Support

291006049

Unavailable

7400q

Reinforcement Tube

291006402

Unavailable

7400r

Round Plug

281300340

Unavailable

7400s

LH Cap

293000140

Unavailable

7400t

RH Cap

293000144

Unavailable

7400u

Top Tube Jonction

291006097

Unavailable

7400v

Bottom Tube Jonction

291006098

Unavailable

7410

Swim Platform Kit | Includes 7410 to 7410p

291006389

Unavailable

7410a

LH Rear Swim Platform

291006046

Unavailable

7410b

RH Rear Swim Platform

291006048

Unavailable

7410c

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

7410c1

Elastic Stop Nut M6, Brass

232561200

$4.03

7410d

Ladder

291006061

Unavailable

7410f

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.79

7410g

Hex. Elastic Nut M8 Brass

232581200

$1.48

7410h

Flat Washer 8 mm, Nylon

234081100

$1.15

7410j

Ladder Support

291006080

Unavailable

7410k

Ladder Trim

291006067

Unavailable

7410m

Hex Screw M6 X 20

250000965

$2.00

7410n

Hexagonal Cap Screw M6 X 25

250000978

$4.15

7410p

Ladder Warning Label

219905725

Unavailable
