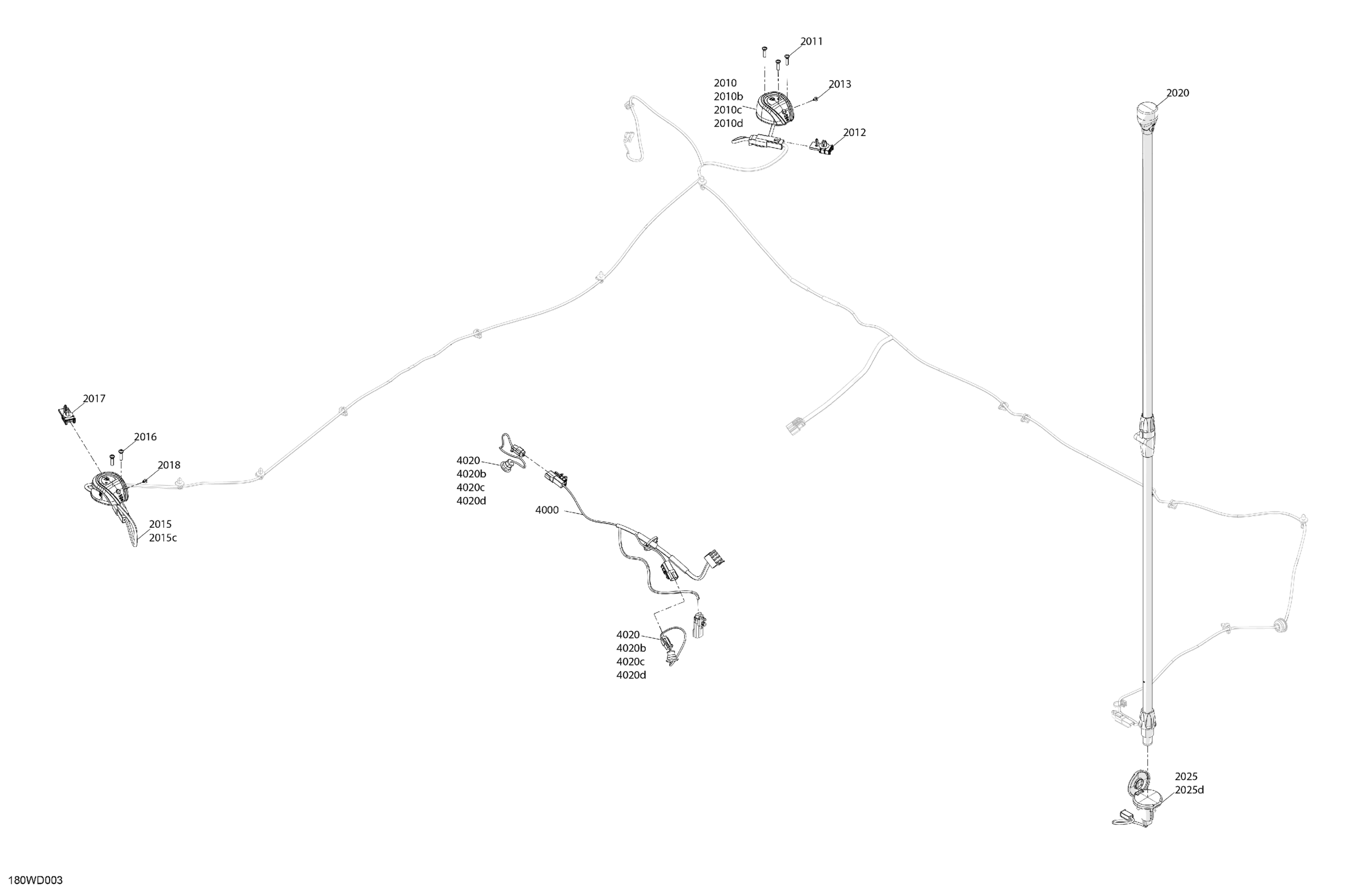

Sea-doo CRUISE 18 - 130 - 43RA - Blue - Trailer Paint - CAT2B, 2024 ELECTRICALS - Lighting Diagram

Description

Price

2010

Green, Side Navigation Light Ass'y | Includes 2010 to 2010d

278004019

Unavailable

2010b

Amphenol Female Connector 2 Cavities

515178579

$9.66

2010c

Female Terminal

710005438

$3.88

2010d

Amphenol Lock Connector

515178580

$3.66

2011

Flange Torx Screw K40 X 16

250000287

$2.00

2012

Deutsch Connector Support

710006744

$3.13

2013

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.22

2015

Red Side Navigatin Light Ass'y | Includes 2015 to 2015d

278004020

Unavailable

2015c

Terminal

710005748

$3.12

2016

Flange Torx Screw K40 X 16

250000287

$2.00

2017

Deutsch Connector Support

710006744

$3.13

2018

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.22

2020

White, All Round Navigation Light

278003778

$220.87

2025

Navigation Table Base Ass'y | Includes 2025 to 2025f

278004021

Unavailable

2025d

Terminal

710005748

$3.12

4000

Accessory Lighting Wiring Harness

278003640

Unavailable

4020

Light Console Ass'y | Includes 4020 to 4020d

278004025

Unavailable

4020b

Amphenol Female Connector 2 Cavities

515178579

$9.66

4020c

Female Terminal

710005439

$4.15

4020d

Amphenol Lock Connector

515178580

$3.66
