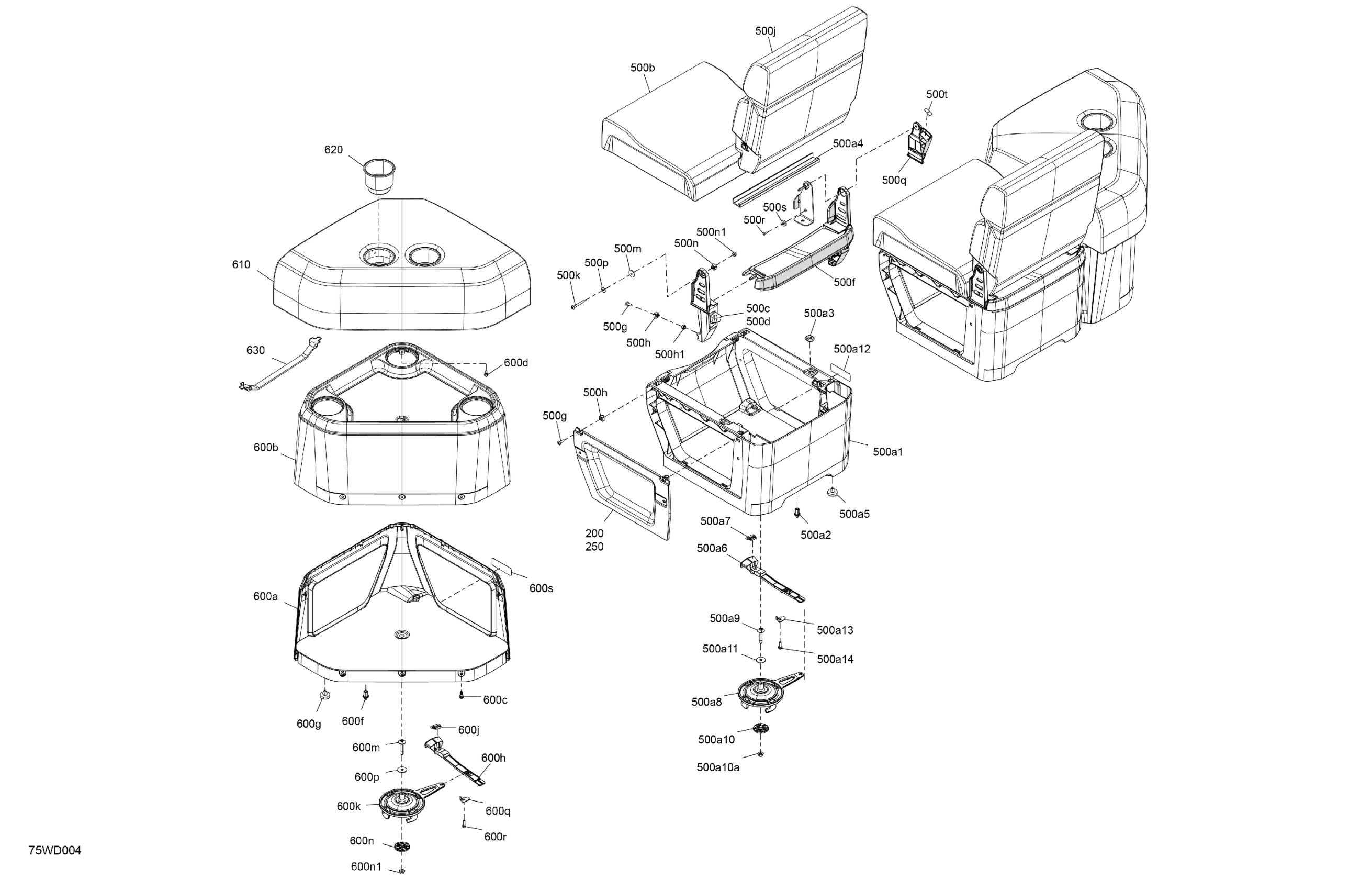

Sea-doo CRUISE 18 - 130 - 43RA - Blue - Trailer Paint - CAT2B, 2024 HELM - Stern Bench Diagram

#

Description
Price

200

LH Panel Seat Switch Kit

295101046

Unavailable

250

RH Panel Seat Switch Kit

295101047

Unavailable

500a1

Seat Support Service Kit

295101127

Unavailable

500a2

Locator Rod

269003492

$5.40

500a3

Oval Washer

705000321

$5.33

500a4

Gutter

269003483

$2.61

500a5

Rubber Stopper

269003502

$6.18

500a6

Lever Latch Service Kit

295101126

Unavailable

500a7

Lever Decal

219905993

Unavailable

500a8

Seat Anchorage

269003311

$16.39

500a9

Torx Head M8 X 50 S.GRIP

250001154

$10.10

500a10

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

500a10a

Hex. Flange Nut M8

233181600

$0.99

500a11

Flat Washer 8 mm

250200130

$3.00

500a12

Seat Anchorage Warning Label

219905883

Unavailable

500a13

Guide

269003887

$9.70

500a14

Hex. Flange Screw M6.81 x 20

243162060

$3.79

500b

Seat Cushion Ass'y

269003224

Unavailable

500c

LH Overmolded Support

269003609

$105.94

500d

RH Overmolded Support

269003764

$105.94

500f

Support Trim

269003765

$13.28

500g

Torx Screw M6 X 20, Stainless | Package XDSXRS

250000234

$3.33

500h

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

500h1

Elastic Stop Nut M6, Brass

232561200

$4.03

500j

Tilting Backrest Ass'y

269003603

$274.99

500k

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.82

500m

Flat Washer M6 X 25

250200044

$1.97

500n

Nut Housing M6 | Includes 555 to 555b

269502544

$5.07

500n1

Elastic Stop Nut M6, Brass

232561200

$4.03

500p

Flat Washer 6 mm

234062100

$1.18

500q

Backrest Stopper

269003892

$14.76

500r

Screw K40 X 10

250001119

$1.88

500s

Stopper

269003895

$4.61

500t

Bute File Decal

219906226

$8.66

600a

Corner Table Base

269003315

$405.19

600b

Top Corner Table

269003533

$405.19

600c

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

600d

Hex. Flange Screw M6.81 x 20

243162060

$3.79

600f

Locator Rod

269003492

$5.40

600g

Rubber Stopper

269003502

$6.18

600h

Lever Latch Service Kit

295101126

Unavailable

600j

Lever Decal

219905993

Unavailable

600k

Seat Anchorage

269003311

$16.39

600m

Torx Head M8 X 50 S.GRIP

250001154

$10.10

600n

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$6.58

600n1

Hex. Flange Nut M8

233181600

$0.99

600p

Flat Washer 8 mm

250200130

$3.00

600q

Guide

269003887

$9.70

600r

Hex. Flange Screw M6.81 x 20

243162060

$3.79

600s

Seat Anchorage Warning Label

219905883

Unavailable

610

Table Trim Ass'y

269003525

$439.99

620

Cup Holder

269003645

$16.39

630

Strap

293850143

$16.39
