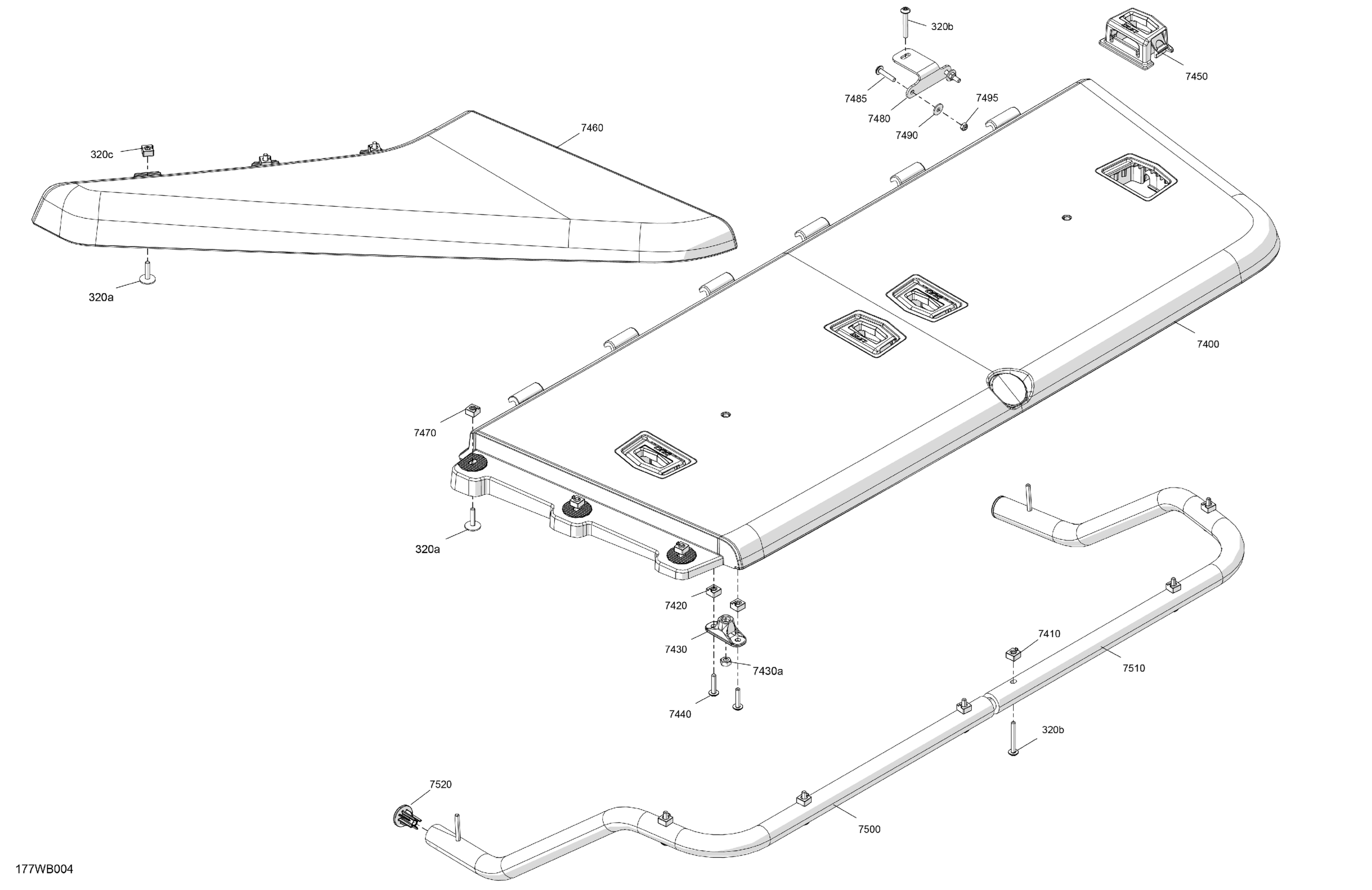

Sea-doo CRUISE 18 - 100 - 43ND - Blue - CAT 2A, 2022 WATERSPORTS - Swim Platform Diagram

Description

Price

7400

Central Platform Service Kit

295101097

Unavailable

7410

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

7420

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

7430

Table Anchorage | Includes 250 to 250a

291005631

Unavailable

7430a

Hex Nut M8

232081200

$1.19

7440

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

7450

Linq Bases Kit

295100858

$21.42

7460

Lat Deck

291005604

Unavailable

7470

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42

7480

Plateform Reinforcement | Not shown

291006041

$34.30

7485

Screw-Torx Truss Cone Head M6X25

250001116

$3.39

7490

Flat Washer M6, Stainless

234062600

$0.64

7495

Elastic Stop Nut M6, Brass

232561200

$3.51

7500

LH Deck Support

291006065

Unavailable

7510

RH Deck Support

291006066

Unavailable

7520

Swim Plateform Cap

291005634

Unavailable

320a

Hex Sems Screw M6X30

250001183

$2.64

320b

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

320c

Nut Housing M6 | Includes 555 to 555b

269502544

$4.42
