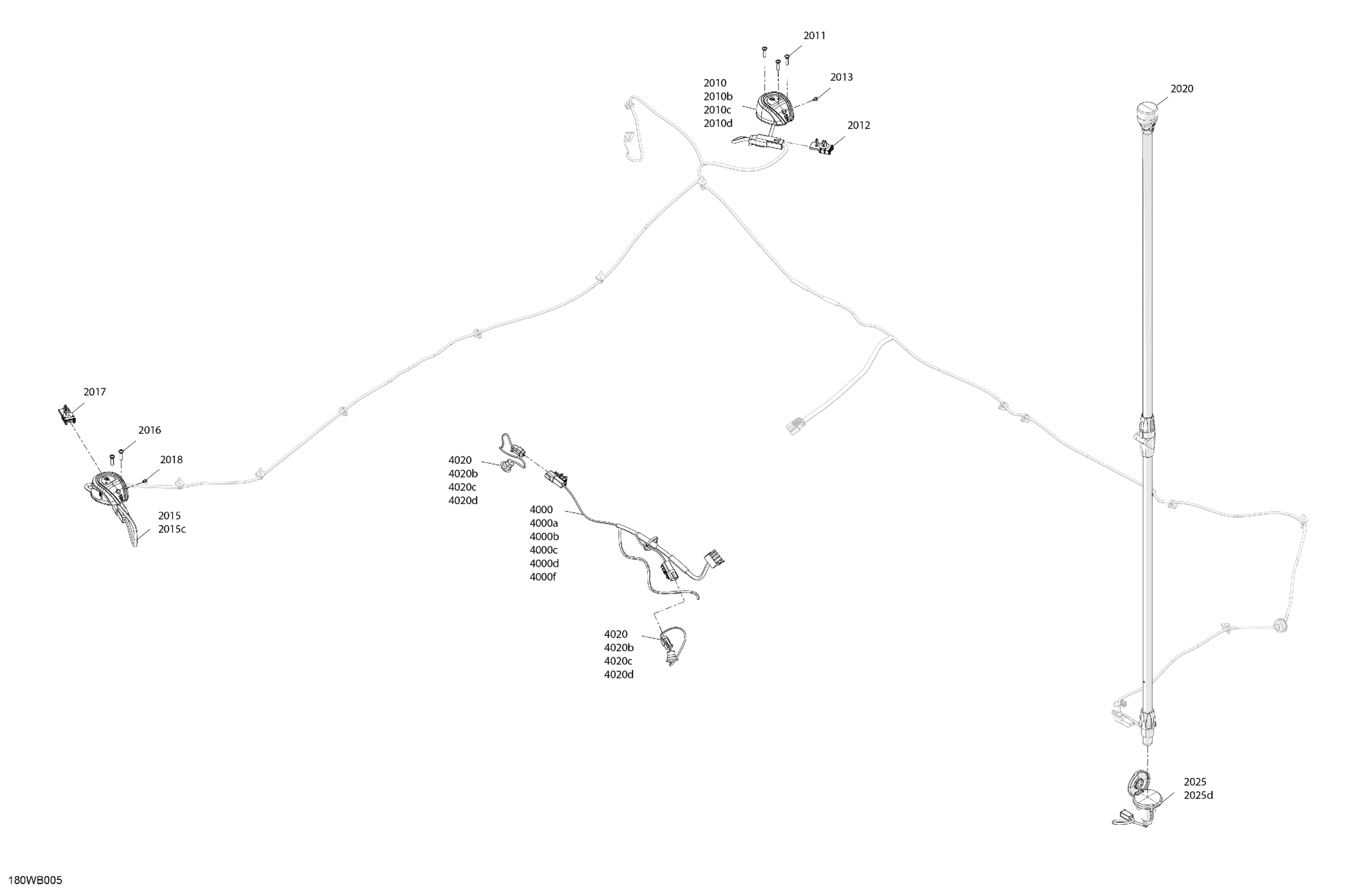

Sea-doo CRUISE 18 - 100 - 43ND - Blue - CAT 2A, 2022 ELECTRICALS - Lighting Diagram

Description

Price

2010

Green, Side Navigation Light Ass'y | Includes 2010 to 2010d

278004019

Unavailable

2010b

Amphenol Female Connector 2 Cavities

515178579

$10.14

2010c

Female Terminal

710005438

$4.00

2010d

Amphenol Lock Connector

515178580

$3.68

2011

Flange Torx Screw K40 X 16

250000287

$1.74

2012

Deutsch Connector Support

710006744

$3.23

2013

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

2015

Red Side Navigatin Light Ass'y | Includes 2015 to 2015d

278004020

Unavailable

2015c

Terminal

710005748

$2.72

2016

Flange Torx Screw K40 X 16

250000287

$1.74

2017

Deutsch Connector Support

710006744

$3.23

2018

Screw Plastite Torx K30 X 8 | Not Shown

250001243

$1.26

2020

White, All Round Navigation Light

278003778

$235.35

2025

Navigation Table Base Ass'y | Includes 2025 to 2025f

278004021

Unavailable

2025d

Terminal

710005748

$2.72

4000

Accessory Lighting Wiring Harness

278003640

Unavailable

4000a

Housing

515178023

$12.98

4000b

Sealing Cap

278002860

$1.42

4000c

Male Terminal

515178013

$2.55

4000d

Terminal

710005748

$2.72

4000f

Terminal

710005748

$2.72

4020

Light Console Ass'y | Includes 4020 to 4020d

278004025

Unavailable

4020b

Amphenol Female Connector 2 Cavities

515178579

$10.14

4020c

Female Terminal

710005439

$4.28

4020d

Amphenol Lock Connector

515178580

$3.68
