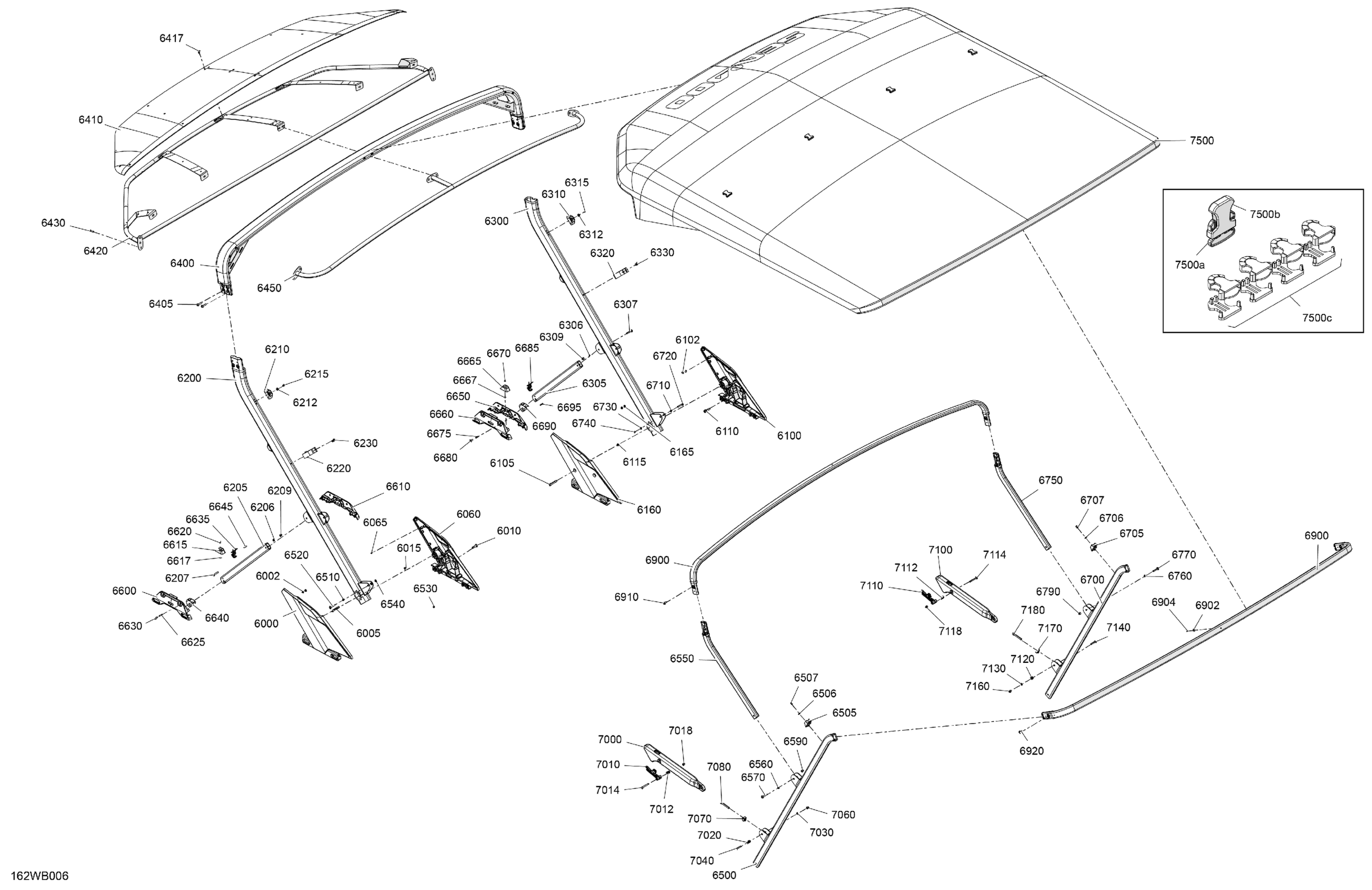

Sea-doo CRUISE 18 - 100 - 43ND - Blue - CAT 2A, 2022 CANVAS - Double Bimini Top Diagram

#

Description
Price

6000

LH Outer Bimini Anchorage

281300518

Unavailable

6002

Black Dart 5 mm

293730053

$3.73

6005

Socket Head Screw M8 X 45, S. GRIP

205584560

$2.81

6010

Socket Head Screw M8 X 30, Scotch Grip

205583060

$2.89

6015

Stainless, Flat Washer 8 mm

234081600

$0.46

6060

LH Inner Bimini Anchorage

281300520

Unavailable

6065

Black Dart 5 mm

293730053

$3.73

6100

RH Outer Bimini Anchorage

281300522

Unavailable

6102

Black Dart 5 mm

293730053

$3.73

6105

Socket Head Screw M8 X 45, S. GRIP

205584560

$2.81

6110

Socket Head Screw M8 X 30, Scotch Grip

205583060

$2.89

6115

Stainless, Flat Washer 8 mm

234081600

$0.46

6160

RH Inner Bimini Anchorage

281300524

Unavailable

6165

Black Dart 5 mm

293730053

$3.73

6200

Profiled Tube

281300735

$150.12

6205

Profiled Tube

281300390

Unavailable

6206

Bushing

293900086

$1.79

6207

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.19

6209

Hexagonal Jam Nut M6

232161600

$9.19

6210

Rubber Stopper

281300607

$3.38

6212

Stainless Flat Washer M6

234061600

$0.25

6215

Pop Rivet 3/16"

293150008

$0.40

6220

Retaining Strap

281300590

Unavailable

6230

Pop Rivet 3/16"

293150123

$3.43

6300

Profiled Tube

281300735

$150.12

6305

Profiled Tube

281300390

Unavailable

6306

Bushing

293900086

$1.79

6307

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.19

6309

Hexagonal Jam Nut M6

232161600

$9.19

6310

Rubber Stopper

281300607

$3.38

6312

Stainless Flat Washer M6

234061600

$0.25

6315

Pop Rivet 3/16"

293150008

$0.40

6320

Retaining Strap

281300590

Unavailable

6330

Pop Rivet 3/16"

293150123

$3.43

6400

Front Harness Service Kit

295101118

Unavailable

6405

Cone Torx Truss Screw HD.M6 X 30

250001146

$3.19

6410

Roof Reinforcement

281300705

$44.17

6417

Black, Dart

414644300

$0.78

6420

Soft Roof Visor

281300736

$138.42

6430

Torx Truss Screw M6 X 16

250000348

$1.74

6450

Rear Soft Roof Visor

281300456

Unavailable

6500

Profiled Tube

281300385

Unavailable

6505

Rubber Stopper

281300607

$3.38

6506

Stainless Flat Washer M6

234061600

$0.25

6507

Pop Rivet 3/16"

293150008

$0.40

6510

Bushing

293900086

$1.79

6520

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.19

6530

Stainless Flat Washer M6

234061600

$0.25

6540

Elastic Stop Nut M6, Brass

232561200

$3.51

6550

Profiled Tube

281300534

Unavailable

6560

Bushing

293900086

$1.79

6570

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.19

6590

Hexagonal Jam Nut M6

232161600

$9.19

6600

Outer Anchorage Support

281300422

Unavailable

6610

Inner Anchorage Support

281300429

Unavailable

6615

Rubber Stopper

281300607

$3.38

6617

Stainless Flat Washer M6

234061600

$0.25

6620

Pop Rivet 3/16"

293150008

$0.40

6625

Rod Latch

281300566

$10.63

6630

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

6635

Lever Latch

281300567

Unavailable

6640

Latch Trim

281300573

Unavailable

6645

Spring Pin 3/16 X 3/4

250400100

$1.81

6650

Outer Anchorage Support

281300422

Unavailable

6660

Inner Anchorage Support

281300429

Unavailable

6665

Rubber Stopper

281300607

$3.38

6667

Stainless Flat Washer M6

234061600

$0.25

6670

Pop Rivet 3/16"

293150008

$0.40

6675

Rod Latch

281300566

$10.63

6680

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

6685

Lever Latch

281300567

Unavailable

6690

Latch Trim

281300573

Unavailable

6695

Spring Pin 3/16 X 3/4

250400100

$1.81

6700

Profiled Tube

281300385

Unavailable

6705

Rubber Stopper

281300607

$3.38

6706

Stainless Flat Washer M6

234061600

$0.25

6707

Pop Rivet 3/16"

293150008

$0.40

6710

Bushing

293900086

$1.79

6720

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.19

6730

Stainless Flat Washer M6

234061600

$0.25

6740

Elastic Stop Nut M6, Brass

232561200

$3.51

6750

Profiled Tube

281300534

Unavailable

6760

Bushing

293900086

$1.79

6770

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.19

6790

Hexagonal Jam Nut M6

232161600

$9.19

6900

Rear Hoop

281300395

Unavailable

6902

Fastener Snap

293730102

Unavailable

6904

Pop Rivet 1/8

293150002

$0.88

6910

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

6920

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

7000

Lock Lever

281300552

Unavailable

7010

LH Tensioner

281300575

Unavailable

7012

Cut Bushing

281300554

Unavailable

7014

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

7018

Hexagonal Jam Nut M6

232161600

$9.19

7020

Cut Bushing

281300554

Unavailable

7030

Bushing

293900086

$1.79

7040

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.19

7060

Hexagonal Jam Nut M6

232161600

$9.19

7070

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

7080

Socket Head Screw M8 X 55

250001226

$3.95

7100

Lock Lever

281300552

Unavailable

7110

RH Tensioner

281300553

Unavailable

7112

Cut Bushing

281300554

Unavailable

7114

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

7118

Hexagonal Jam Nut M6

232161600

$9.19

7120

Cut Bushing

281300554

Unavailable

7130

Bushing

293900086

$1.79

7140

Cone Torx Truss Screw HD.M6 X 35

250001217

$3.19

7160

Hexagonal Jam Nut M6

232161600

$9.19

7170

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

7180

Socket Head Screw M8 X 55

250001226

$3.95

7500

Bimini Soft Top | Includes 7500 to 7500c

281300691

Unavailable

7500a

Male Buckle

296000462

Unavailable

7500b

Female Buckle

296000463

Unavailable

7500c

Buckle Kit

295101472

Unavailable
