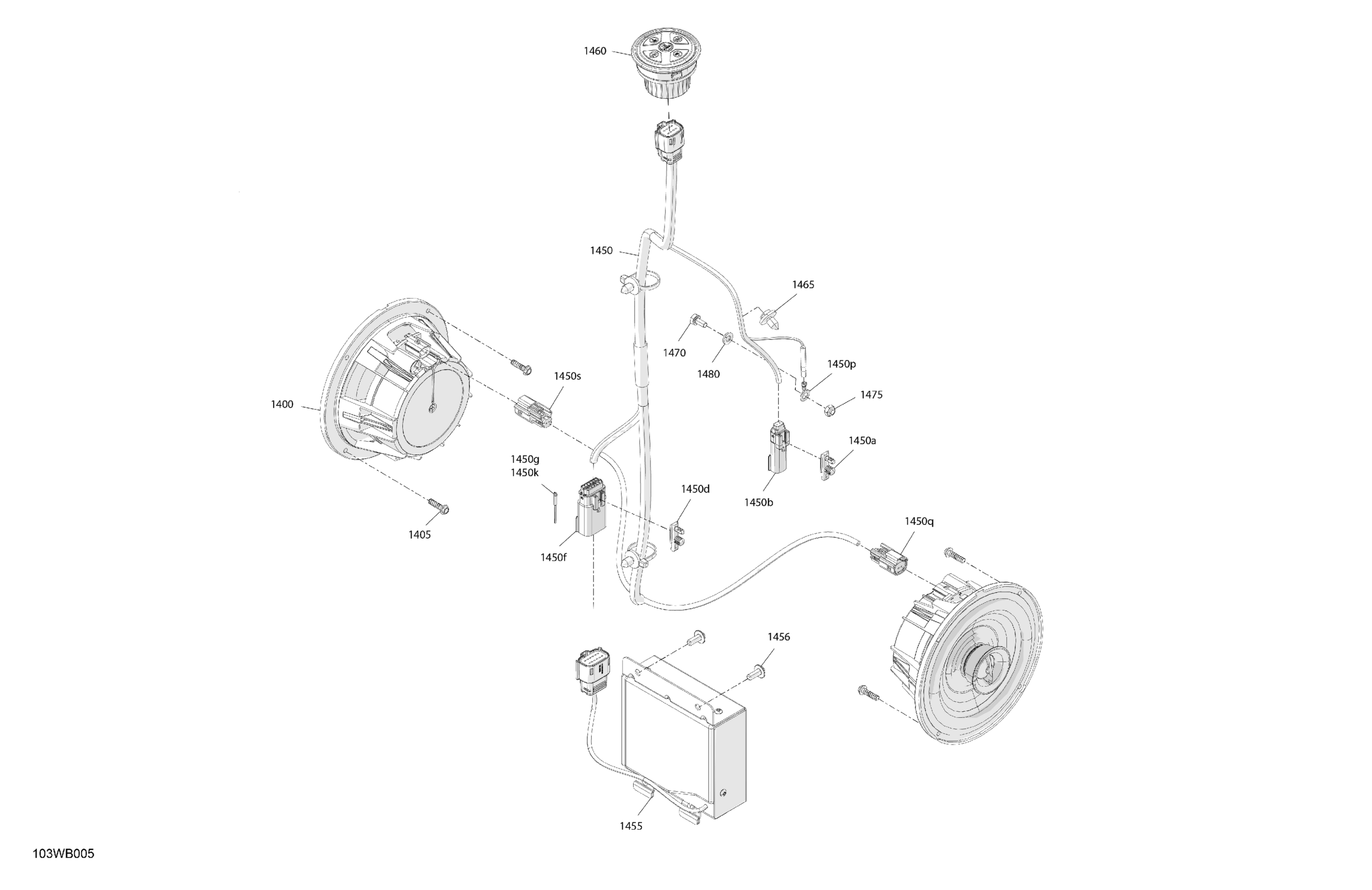

Sea-doo CRUISE 18 - 100 - 43ND - Blue - CAT 2A, 2022 AUDIO - Audio System Diagram

Description

Price

1400

Loudspeaker

278003873

$142.51

1405

Hex. Flange Screw K50 X 20

241152060

$1.57

1450

Speaker Wiring Harness | Includes 1450 to 1450t

278003679

$75.34

1450a

Connector Support

515179692

$1.63

1450b

2 Circuits Male Housing

515178020

$23.10

1450c

Male Terminal

515178013

$2.55

1450d

Connector Support

515179692

$1.63

1450f

Block 12

515178578

$11.18

1450g

Sealing Cap

278002860

$1.42

1450h

Male Terminal

515178013

$2.55

1450k

Sealing Cap

278002860

$1.42

1450m

Female Terminal | Not Shown

278002453

$4.51

1450n

Female Terminal | Not Shown

278002642

$2.98

1450p

Open Barrel

278000992

$1.79

1450q

2 Circuits Female Housing

278002853

$16.39

1450r

Female Terminal | Not Shown

278002453

$4.51

1450s

2 Circuits Female Housing

278002853

$16.39

1450t

Female Terminal | Not Shown

278002453

$4.51

1455

Audio Amplifier

278004313

$308.72

1456

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.00

1460

Audio Control

278003465

$308.07

1465

Mount Dart

710008294

$0.99

1470

Hex. Cap Screw M6 X 12

207161260

$1.21

1475

Elastic Stop Nut M6, Brass

232561200

$3.51

1480

Stainless Flat Washer M6

234061600

$0.25
