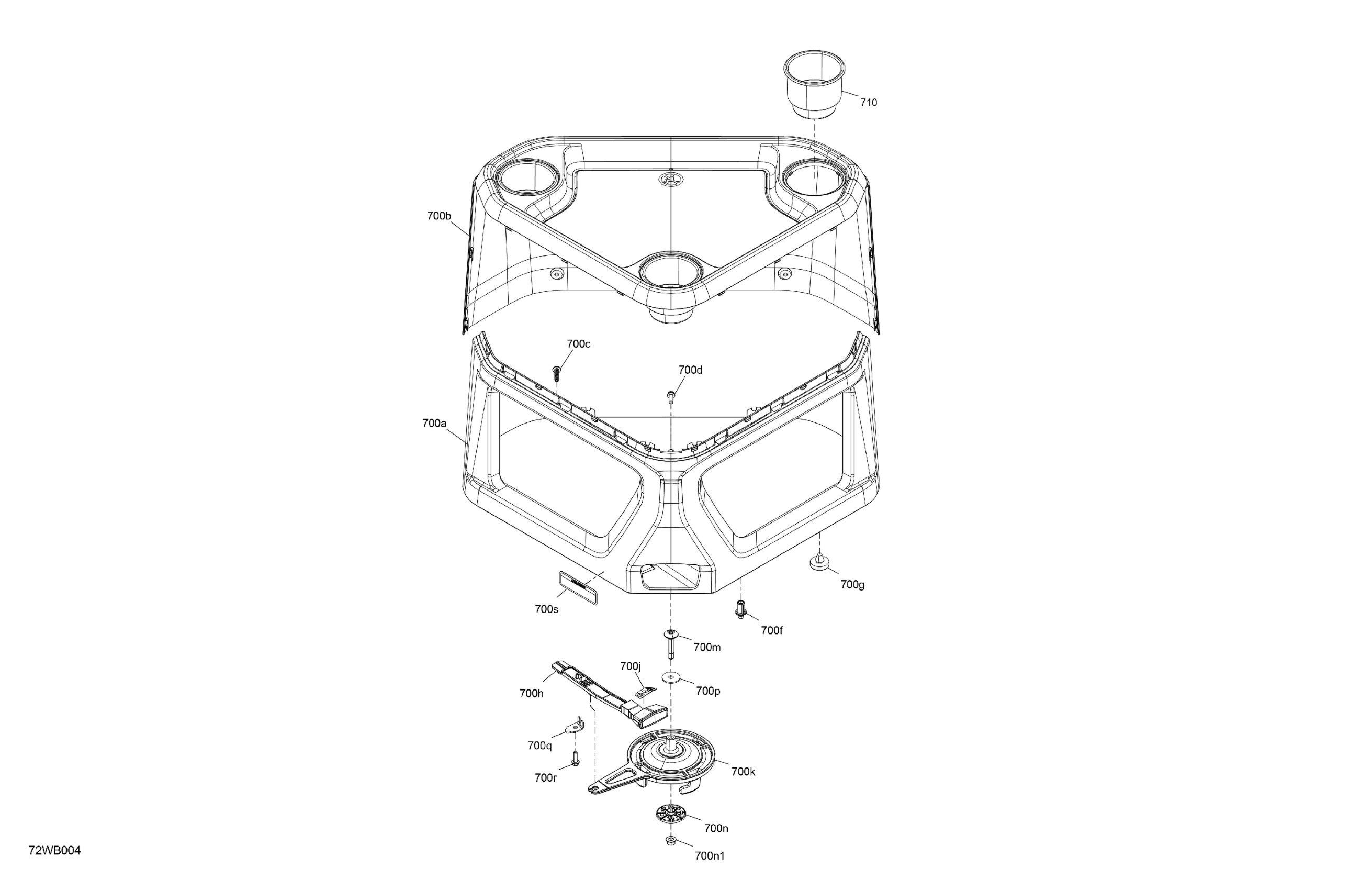

Sea-doo CRUISE 18 - 100 - 43ND - Blue - CAT 2A, 2022 FURNITURE - Corner Table Diagram

Description

Price

700a

Corner Table Base

269003315

$405.19

700b

Top Corner Table

269003533

$405.19

700c

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

700d

Hex. Flange Screw M6.81 x 20

243162060

$3.30

700f

Locator Rod

269003492

$4.71

700g

Rubber Stopper

269003502

$6.18

700h

Lever Latch Service Kit

295101126

Unavailable

700j

Lever Decal

219905993

Unavailable

700k

Seat Anchorage

269003311

$14.27

700m

Torx Head M8 X 50 S.GRIP

250001154

$8.80

700n

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

700n1

Hex. Flange Nut M8

233181600

$0.86

700p

Flat Washer 8 mm

250200130

$2.61

700q

Guide

269004160

$9.66

700r

Hex. Flange Screw M6.81 x 20

243162060

$3.30

700s

Seat Anchorage Warning Label

219905883

Unavailable

710

Cup Holder

269003645

$16.39
