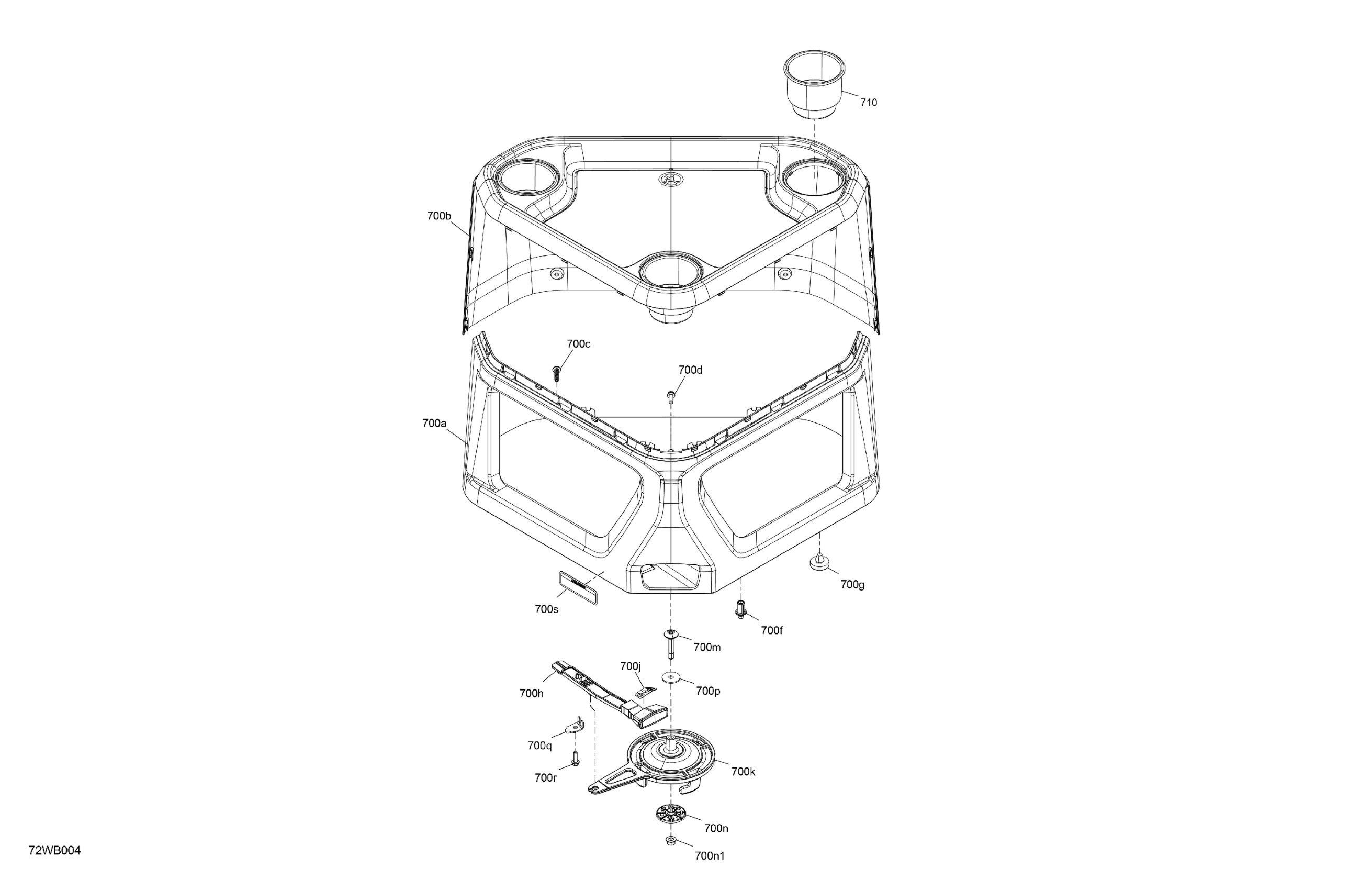

Sea-doo CRUISE 18 - 100 - 43ND - Blue - CAT 2A, 2022 FURNITURE - Corner Table Diagram

Description

Price

700a

Corner Table Base

269003315

$419.99

700b

Top Corner Table

269003533

$419.99

700c

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

700d

Hex. Flange Screw M6.81 x 20

243162060

$3.72

700f

Locator Rod

269003492

$6.09

700g

Rubber Stopper

269003502

$6.89

700h

Lever Latch Service Kit

295101126

$24.99

700j

Lever Decal

219905993

Unavailable

700k

Seat Anchorage

269003311

$19.99

700m

Torx Head M8 X 50 S.GRIP

250001154

$12.11

700n

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

700n1

Hex. Flange Nut M8

233181600

$1.05

700p

Flat Washer 8 mm

250200130

$3.17

700q

Guide

269004160

$10.99

700r

Hex. Flange Screw M6.81 x 20

243162060

$3.72

700s

Seat Anchorage Warning Label

219905883

Unavailable

710

Cup Holder

269003645

$18.49
