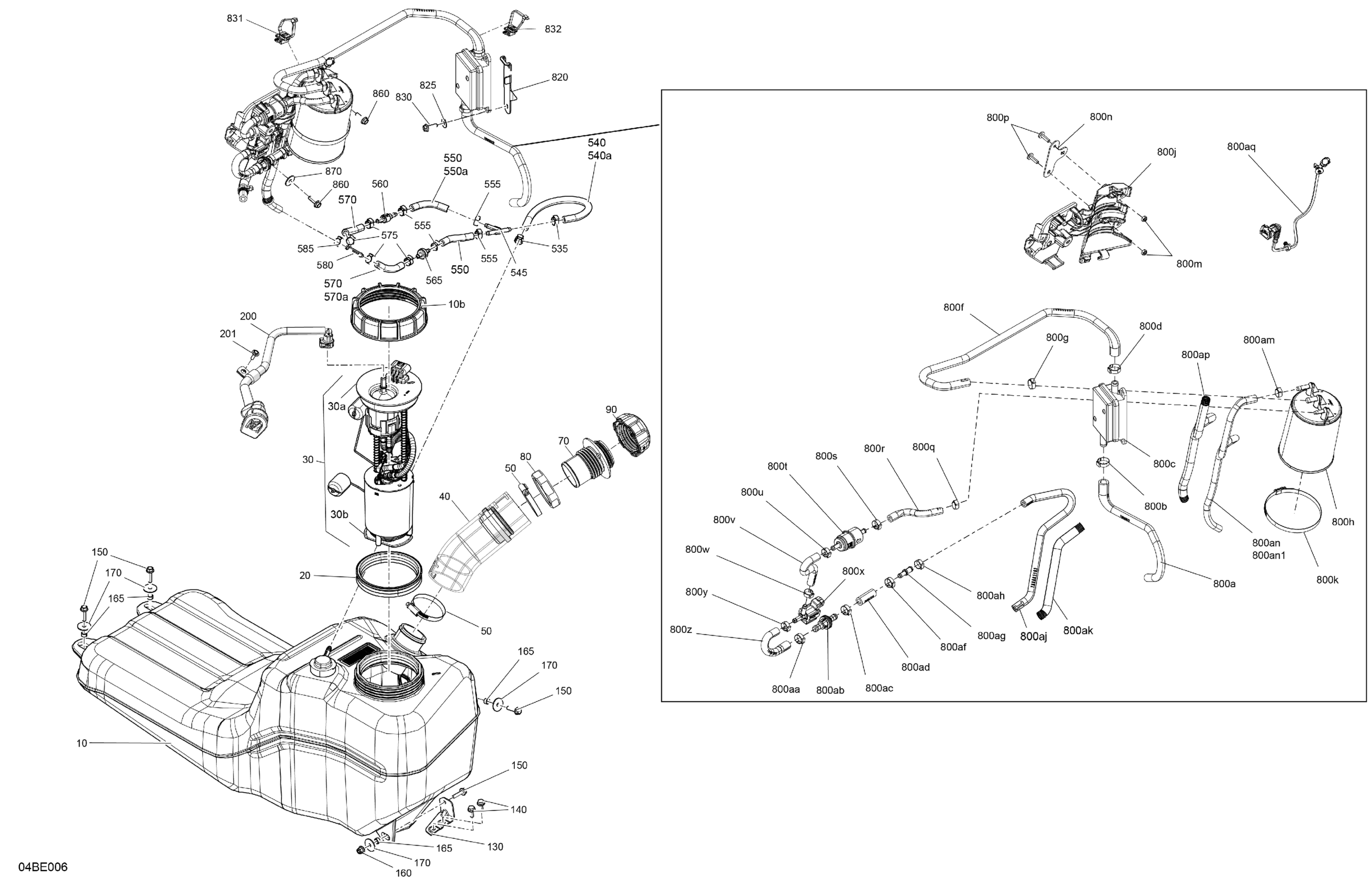

Can-Am Commander Max - 700 - XT - 6KSM - Timeless Black Metallic - 60" Width CALI, 2025 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001434

$379.07

10b

Special Nut M130

250100062

$20.12

20

Pump Gasket

293250514

$17.88

30

Fuel Pump | Includes 30 to 30b

709001056

$353.87

30a

Fuel Filter

270600113

$31.31

30b

Fuel Sender

715900424

$130.57

40

Hose Fuel Tank Ass'y

709001206

$79.82

50

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Fuel Filler Neck Nut

293600206

$11.51

90

Fuel Cap

709000868

$29.07

130

Fuel Tank Support

709001453

$5.21

140

Hex. Flange Screw M6 X 16

207661644

$0.70

150

Hex. Flange Screw M6 X 25

207662554

$1.43

160

Hex. Flange Elastic Nut M6

233261466

$1.91

165

Spacer

293900135

$1.04

170

Washer M6

250200029

$1.78

200

Formed Hose

709001359

$38.78

201

Screw PT Type K-50 X 16

250000959

$2.00

535

Oetiker Clamp

293650042

$1.61

540

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

540a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

545

Y-Fitting

293710059

$9.40

550

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

550a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

555

Oetiker Clamp

293650042

$1.61

560

Check Valve

513033469

$29.07

565

Check Valve

275500398

$9.84

570

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

570a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

575

Oetiker Clamp

293650042

$1.61

580

Y-Fitting

293710059

$9.40

585

Oetiker Clamp

293650042

$1.61

800a

Formed Hose

709000879

$15.64

800b

Oetiker Clamp

293650186

$3.82

800c

Air Filter

709000524

$41.01

800d

Oetiker Clamp

293650186

$3.82

800f

Formed Hose

709000957

$15.64

800g

Crimp Clamp

293650053

$2.78

800h

Charcoal Canister This part replaces 709001294.

709001673

$79.07

800j

Charcoal Canister Support

709001498

$4.76

800k

Tridon Clamp

293650054

$8.63

800m

Hex. Elastic Stop Nut M6

232561600

$1.06

800n

Charcoal Canister Support

709001467

Unavailable

800p

Torx Screw M6 X 20

250000712

$2.00

800q

Oetiker Clamp

293650042

$1.61

800r

Charcoal Canister Hose

709001496

$16.39

800s

Crimp Clamp, 15.3-706R

293650047

$3.03

800t

Fuel Filter

513034047

$35.99

800u

Crimp Clamp, 15.3-706R

293650047

$3.03

800v

Charcoal Canister Hose

709001497

$16.39

800w

Crimp Clamp, 15.3-706R

293650047

$3.03

800x

Purge Valve

709001449

$64.90

800y

Crimp Clamp, 15.3-706R

293650047

$3.03

800z

Formed Charcoal Canister Hose

709001564

$15.64

800aa

Crimp Clamp

293650053

$2.78

800ab

Check Valve

275500941

$23.10

800ac

Crimp Clamp

293650053

$2.78

800ad

Hose

709001638

$14.33

800af

Crimp Clamp

293650053

$2.78

800ag

Flow Reducer

709000933

$3.79

800ah

Crimp Clamp, 15.3-706R

293650047

$3.03

800aj

Formed Hose

709001635

$39.52

800ak

Tubing 16 Mm 1000Mm Long

219704408

$7.15

800am

Oetiker Clamp

293650046

$2.67

800an

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800an1

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800ap

Tubing 16 Mm 1000Mm Long

219704408

$7.15

800aq

Wiring Harness

710009875

$24.60

820

Filter Support

709000935

$3.18

825

Stainless Steel Flat Washer

234062670

$2.00

830

Hex. Flange Screw M6 X 20

207662054

$0.96

831

Tie Wrap

293750108

$7.25

832

Tie Wrap

293750108

$7.25

860

Hex. Flange Screw M6 X 20

207662054

$0.96

870

Flat Washer M6.6 X 22

250200162

$2.19
