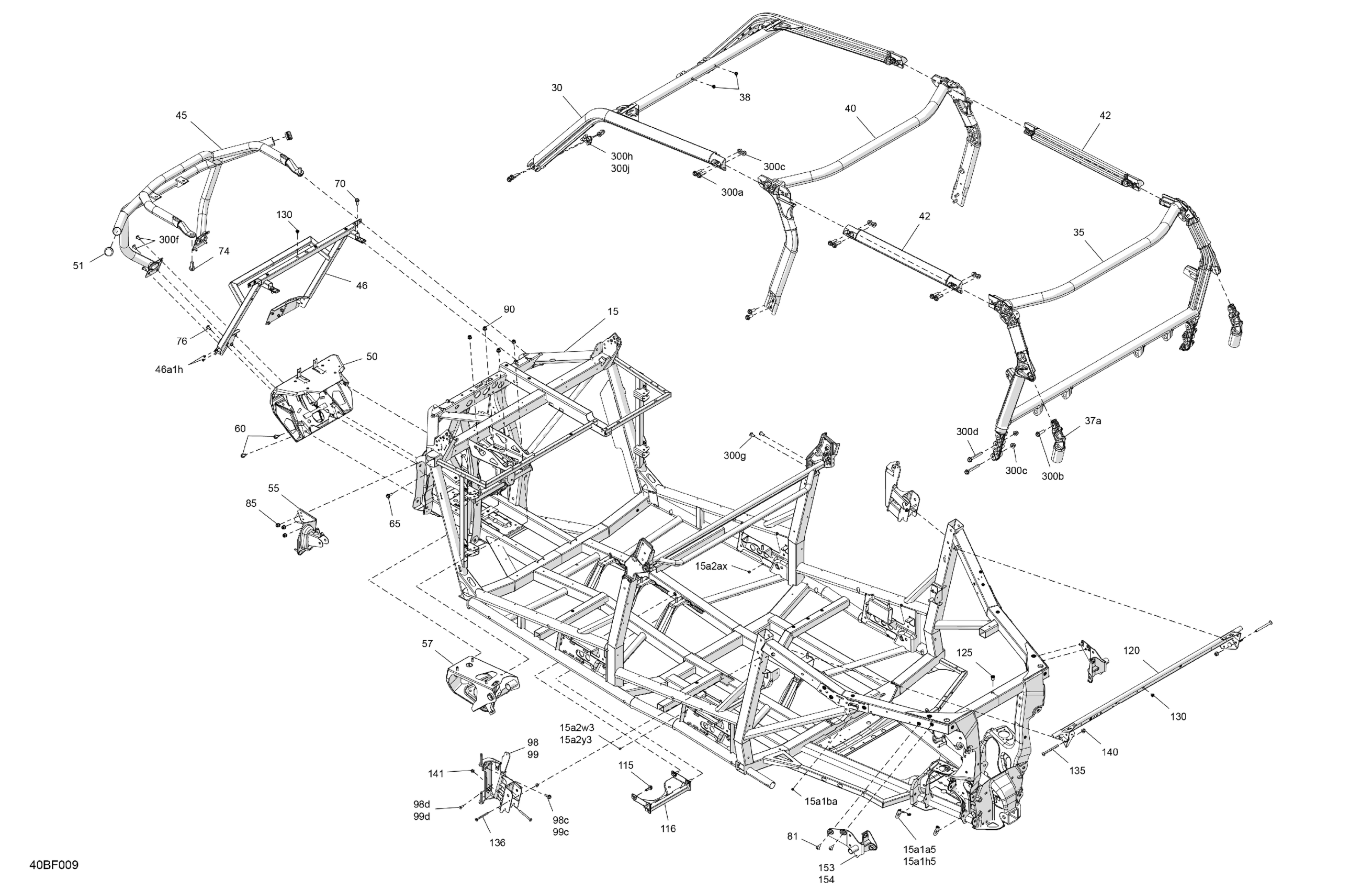

Can-Am Commander MAX - 700 EFI - XT - 6KTL - Fiery Red Metallic - 60" Width - CALI, 2026 Frame - System Diagram

#

Description
Price

15

Black, Frame Kit Max | Includes 15 to 15a2y3

715009398

$3,359.99

15a1a5

Shim

705209479

$2.96

15a1h5

Shim

705209479

$2.96

15a1ba

Pop Rivet 3/16 X ,425

293150293

$0.30

15a2w3

Pop Rivet 3/16 X ,425

293150293

$0.30

15a2y3

Pop Rivet 3/16 X ,425

293150293

$0.30

15a2ax

Pop Rivet 3/16 X ,425

293150293

$0.30

30

Deep Black, Front Cage | Includes 30 to 30a

705211118

Unavailable

35

Deep Black, Rear Cage

705211121

Unavailable

37a

Deep Black, Rear Cage Extension

705212921

$69.37

38

Insert Half Hex Body M6 x 1.0

250100199

$2.91

40

Mid Cage Max

703501203

$519.99

42

Deep Black, Cage Extension

705209848

$41.99

45

Deep Black, Front Bumper

705209105

$451.46

46

Front Body Support | Includes 46 to 46a1h

705208893

$196.99

46a1h

Pop Rivet 3/16 X ,425

293150293

$0.30

50

Deep Black, Front Bumper

705209043

$453.70

51

Cap

705202455

$4.27

55

Brake Support

705206217

$46.24

57

DPS Support

705206294

$64.15

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

74

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

76

Torx Truss Screw M8 X 16

250000746

$3.19

81

Torx Truss M/S M8 X 20

250000953

$2.00

85

Hex. Elastic Flange Nut M8

233281416

$1.43

90

Hex. Elastic Flange Nut M8

233281416

$1.43

98

LH Male Door Hinge Ass'y | Includes 98 to 98d

705211564

$422.36

98c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

98d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.88

99

RH Male Door Hinge Ass'y | Includes 99 to 99d

705211565

$422.36

99c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

99d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.88

115

Bearing Support

705211563

$44.00

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

120

Central Tube

705209434

$142.51

125

Insert Half Hex Body M8 x 1.25

293450307

$1.97

130

Insert Half Hex Body M6 x 1.0

250100199

$2.91

135

Torx Truss M8 X 90

250000806

$7.06

136

Torx Screw M6 X 70

250000954

$1.79

140

Hex. Flange Nut M8

233081416

$1.87

141

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

153

LH Rear Open Carrier Anchorage

705210342

$92.51

154

RH Rear Open Carrier Anchorage

705210343

$92.51

300a

Hex. Flange Screw M10 X 35

250000855

$1.67

300b

Hex. Flange Screw M10 X 30 Scotch G.

207503056

$2.40

300c

Flange Elastic Nut M10

233201466

$3.01

300d

Hex. Flange Screw M10 X 70

207607056

$3.88

300f

Torx Truss Screw M8 X 16

250000746

$3.19

300g

Hex. Flange Screw M10 X 25

207502546

$2.00

300h

LH Front Anchorage

705209913

$34.30

300j

RH Front Anchorage

705209914

$34.30
