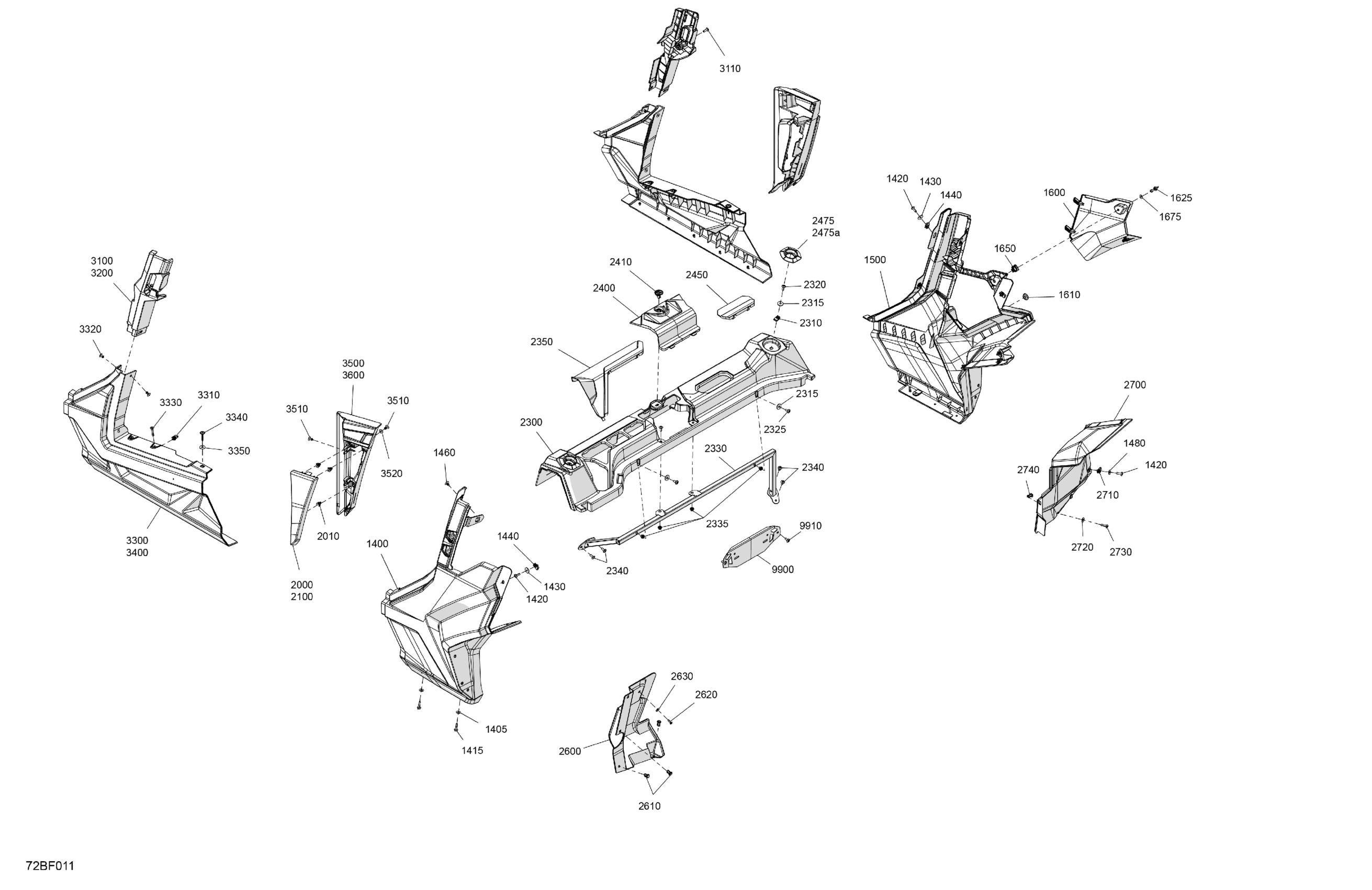

Can-Am Commander MAX - 700 EFI - XT - 6KTK - Timeless Black Metallic - 60" Width - CALI, 2026 Body - Rear Section Diagram

Description

Price

1400

LH Rear Fender

705015053

$184.30

1405

Washer

503192494

$3.01

1415

Hex. Flange Screw M6 X 25

207662554

$1.43

1420

Torx Screw M6 X 20

250000722

$1.54

1430

Flat Washer M6.6 X 22

250200162

$2.19

1440

Panel Nut M6 X 1.0

250100198

$1.99

1460

Black, Dart

414644300

$0.90

1480

Stainless Steel Flat Washer

234062670

$2.00

1500

RH Rear Fender

705015055

$184.30

1600

Air Filter Acces Door

705015057

$67.88

1610

Grommet

705003264

$3.94

1625

Quarter Turn

708400278

$4.15

1650

Clip

708400285

$3.90

1675

Washer

708400286

$3.90

2000

Timeless Black, LH Rear Panel Trim

705019677

$123.10

2010

Clip

517306478

$1.03

2100

Timeless Black, RH Rear Panel Trim

705019678

$123.10

2300

Rear Upper Cab Panel

705015150

Unavailable

2310

Panel Nut M6 X 1.0

250100198

$1.99

2315

Flat Washer M6.6 X 22

250200162

$2.19

2320

Torx Screw M6 X 20

250000722

$1.54

2325

Torx Screw M6 X 20

250000722

$1.54

2330

Cab Panel Support

705015686

$108.93

2335

Insert Half Hex Body M6 x 1.0

250100199

$2.91

2340

Torx Truss Screw M6 X 16

250000721

$1.60

2350

CVT Air Inlet Cover

705011339

$15.64

2400

Liquid Acces Cover

705015149

$65.64

2410

Cover Latch Quarter Turn

708400065

$2.79

2450

Air Intake Cover

705011340

$12.73

2475

Rear Cage Trim Kit | Includes 2475 to 2475a

705016344

$26.09

2475a

Rear Cage Trim

705015862

$4.15

2600

LH Rear Wheel Arch Protector

705015886

$38.78

2610

Tuflok Plastic Rivet

293150230

$1.39

2620

Torx Screw K50 X 16

250000720

$1.60

2630

Washer M5

250200025

$0.70

2700

RH Rear Wheel Arch Protector

705016135

$38.78

2710

Panel Nut M6 X 1.0

250100198

$1.99

2720

Stainless Steel Flat Washer

234062670

$2.00

2730

Torx Truss Screw M6 X 25

250000807

$2.00

2740

Tuflok Plastic Rivet

293150230

$1.39

3100

LH Median Side Panel

705011430

$98.48

3110

Torx Screw M6 X 20

250000722

$1.54

3200

RH Median Side Panel

705011431

$98.48

3300

LH Rear Rocker Panel

705013190

$81.31

3310

Panel Nut M6 X 1.0

250100198

$1.99

3320

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

3330

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.00

3340

Torx Truss Screw Head PT.K50 X 40

250000840

$1.79

3350

Flat Washer M6.6 X 22

250200162

$2.19

3400

RH Rear Rocker Panel

705013191

$81.31

3500

LH Rear Fixed Panel

705013140

$44.75

3510

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

3520

Washer M5

250200025

$0.70

3600

RH Rear Fixed Panel

705013141

$44.75

9900

License Plate Support

705018137

$15.64

9910

Torx Truss Screw M6 X 16

250000721

$1.60
