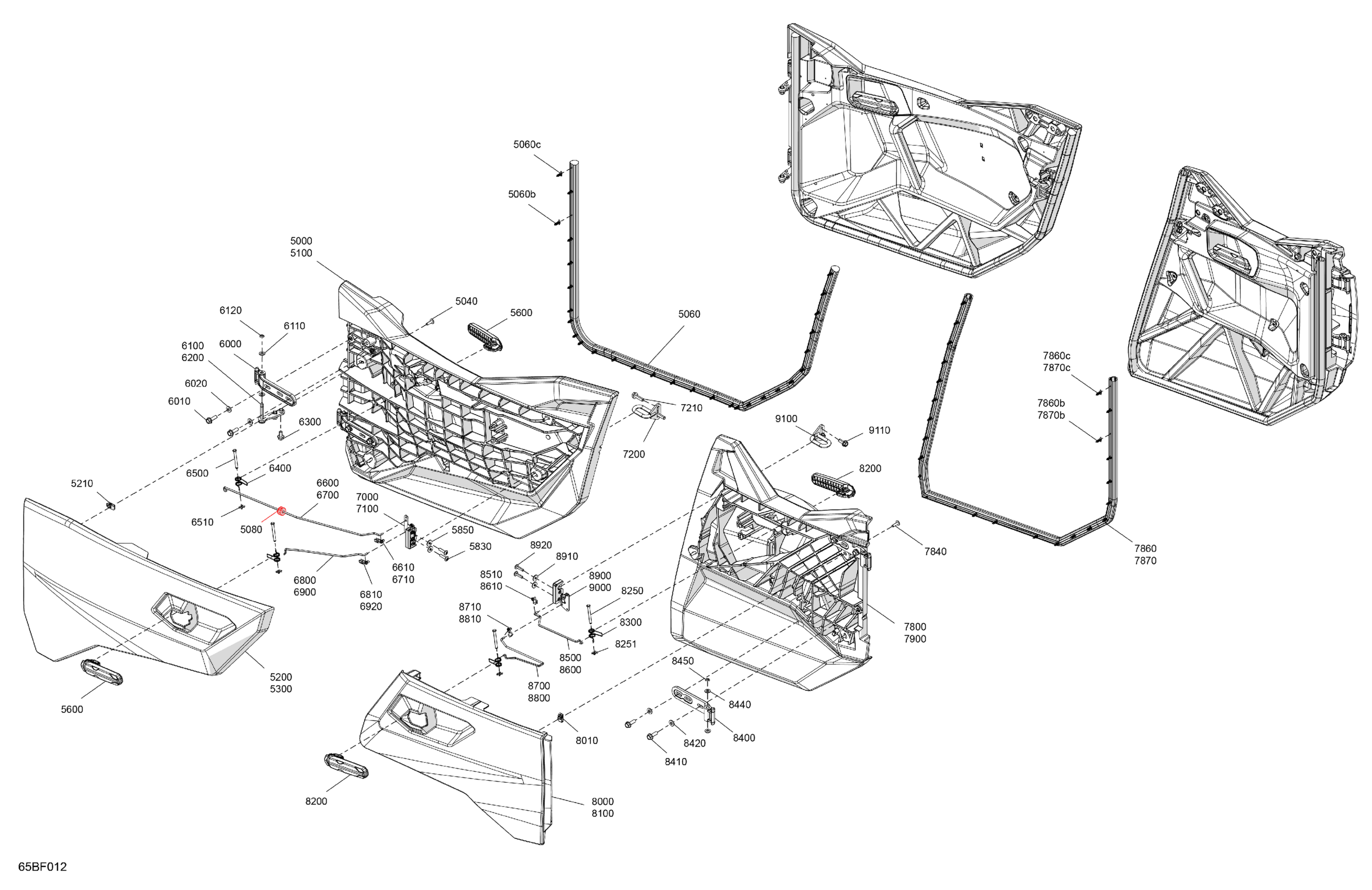

Can-Am Commander MAX - 700 EFI - DPS - 6HTF - Compass Green - 60" Width, 2026 Enclosure Cab - Doors Diagram

#

Description
Price

5000

LH Front Door Ass'y

715009731

$214.99

5040

Torx Screw M6 X 20

250000722

$1.68

5060

LH Front Door Gasket Ass'y | Includes 5060 to 5060c

293250501

$40.99

5060b

Natural Color, Dart

293730081

$2.68

5060c

Red, Dart

293730082

$2.68

5080

Grommet

293720104

$5.29

5100

RH Front Door Trim Ass'y

715009732

$409.99

5200

Compass Green, LH Front Door Panel

705018823

$189.99

5210

Panel Nut M6 X 1.0

250100198

$2.11

5300

Compass Green, RH Front Door Panel

705018824

$189.99

5600

Door Handle

705017152

$15.49

5830

Torx Truss Screw M6 X 25

250000807

$2.11

5850

Stainless Steel Flat Washer

234062670

$2.11

6000

Hinge

705013228

$26.99

6010

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

6020

Washer

503192494

$3.17

6100

Lower Hinge Ajustement

705011629

$15.49

6110

Flat Washer 8 mm, Nylon

234081100

$1.39

6120

Circlip | RS STD

705601030

$4.39

6200

Upper Hinge Ajustement

705012506

$15.49

6300

Hex. Flange Screw DIN.6921 S.Grip

250001033

$1.16

6400

Handle Spring

705013062

$14.99

6500

Handle Axle

705207440

$14.49

6510

External Retaining Ring

705601875

$4.09

6600

LH Upper Locking Rod

705207146

$10.49

6610

RH Tie Rod Clip

708300202

$2.89

6700

RH Upper Locking Rod

705207147

$10.49

6710

LH Tie Rod Clip

708300182

$2.89

6800

LH Lower Locking Rod

705207150

$3.89

6810

RH Tie Rod Clip

708300202

$2.89

6900

RH Lower Locking Rod

705207151

$3.89

6920

LH Tie Rod Clip

708300182

$2.89

7000

LH Latch

705013095

$43.99

7100

RH Latch

705013096

$43.99

7200

LH Door Striker

705211581

$26.99

7210

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

7800

LH Rear Door Ass'y

715009733

$219.99

7840

Torx Screw M6 X 20

250000722

$1.68

7860

LH Rear Door Gasket Ass'y | Includes 7860 to 7860c

293250505

$81.99

7860b

Natural Color, Dart

293730081

$2.68

7860c

Red, Dart

293730082

$2.68

7870

RH Rear Door Gasket Ass'y | Includes 7870 to 7870c

293250506

$81.99

7870b

Natural Color, Dart

293730081

$2.68

7870c

Red, Dart

293730082

$2.68

7900

RH Rear Door Trim Ass'y

715009734

$409.99

8000

Compass Green, LH Rear Door Panel

705018825

$209.99

8010

Panel Nut M6 X 1.0

250100198

$2.11

8100

Compass Green, RH Rear Door Panel

705018826

$209.99

8200

Door Handle

705017152

$15.49

8250

Handle Axle

705207440

$14.49

8251

External Retaining Ring

705601875

$4.09

8300

Handle Spring

705013062

$14.99

8400

Hinge

705013228

$26.99

8410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

8420

Washer

503192494

$3.17

8440

Flat Washer 8 mm, Nylon

234081100

$1.39

8450

Circlip | RS STD

705601030

$4.39

8500

LH Rear Door Upper Locking Rod

705207152

$22.49

8510

RH Tie Rod Clip

708300202

$2.89

8600

RH Rear Door Upper Locking Rod

705207153

$22.49

8610

RH Tie Rod Clip

708300202

$2.89

8700

LH Rear Door Lower Locking Rod

705207154

$22.49

8710

RH Tie Rod Clip

708300202

$2.89

8800

RH Rear Door Lower Locking Rod

705207155

$22.49

8810

RH Tie Rod Clip

708300202

$2.89

8900

LH Latch

705013758

$59.99

8910

Stainless Steel Flat Washer

234062670

$2.11

8920

Torx Truss Screw M6 X 25

250000807

$2.11

9000

RH Latch

705013759

$59.99

9100

LH Door Striker

705211581

$26.99

9110

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69
