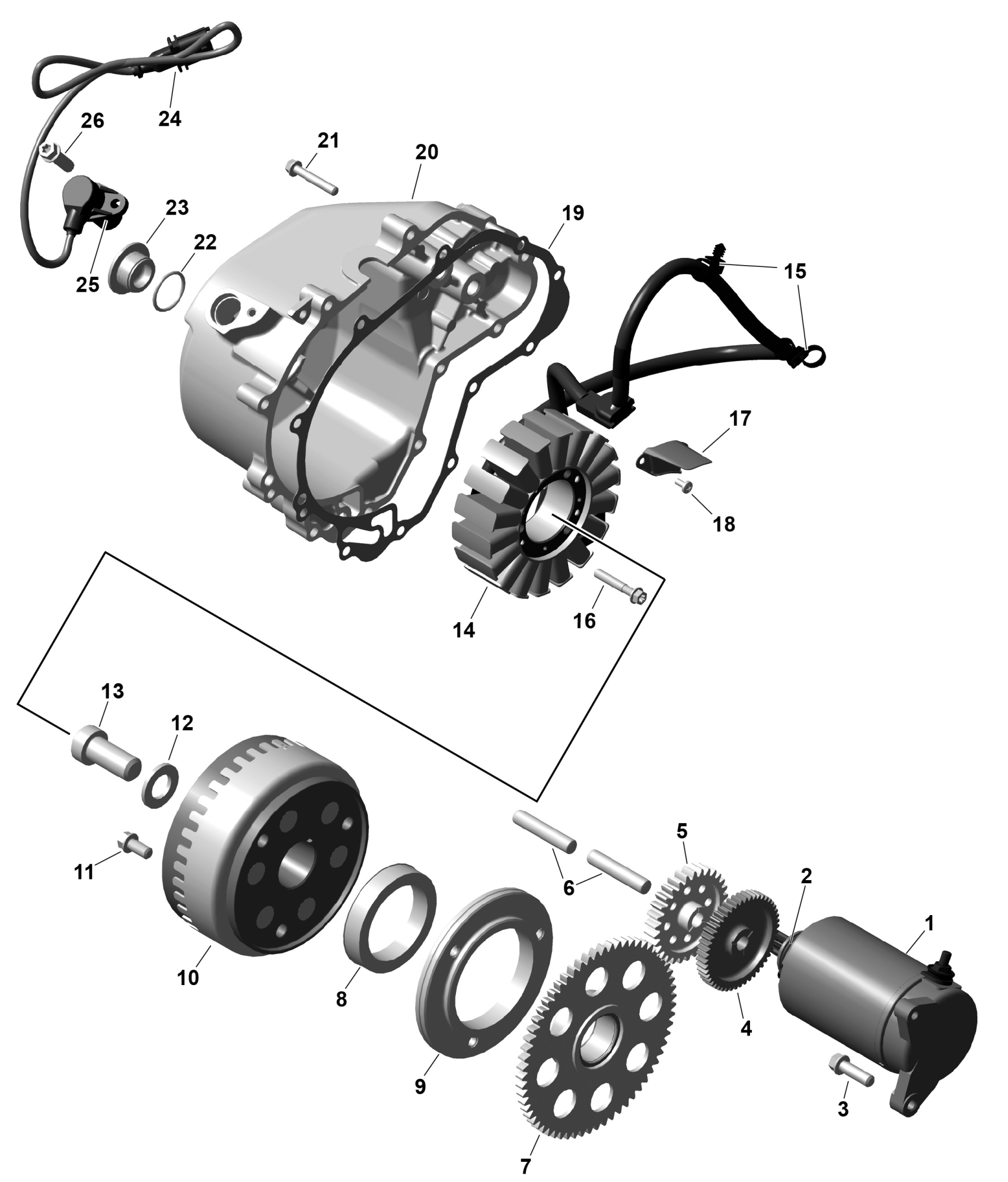

Can-Am Commander MAX - 1000R EFI - XTP - 6CTC - Mineral Gray Satin - 64" Width, 2026 ROTAX - Magneto and Electric Starter Diagram

Electric starter Ass'y

420684566

$265.99

O-Ring

420250140

$8.57

Torx Flange Screw M8 X 25

420440372

$4.12

Starter Double Gear 11/49 T

420634741

$199.99

Starter Intermediate Gear, 30 Teeth

420634605

$81.49

Location Pin 10 M6x50

420229302

$3.17

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$194.99

Sprag Clutch

420659113

$259.99

Sparg Clutch Housing

420659263

$154.99

Flywheel With Trigger Wheel 650W | With DPS, European Community, T3

420685704

$582.99

Torx Flange Screw M8 X 16

420440854

$4.44

Shim

420627270

$4.12

Socket Head Screw M16 X 35

420241549

$8.57

Stator Ass'y | Includes no. 14-15

420685923

$319.49

Tie Rap 212mm

420951346

$1.47

Torx Flange Screw M6 X 30

420440647

$2.00

Interior Cable Support Ass'y

420251889

$14.30

Phillips Screw M4 X 8

420240196

$2.32

Gasket

420651203

$35.99

Ignition Cover

420212225

$190.49

Torx Flange Screw M6 X 35

420440274

$1.01

O-Ring

420430781

$0.87

Plug Screw M24X 1.5

420241633

$7.41

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

O-Ring

420431580

$14.83

Torx Flange Screw M6 X 16

420440162

$3.17
