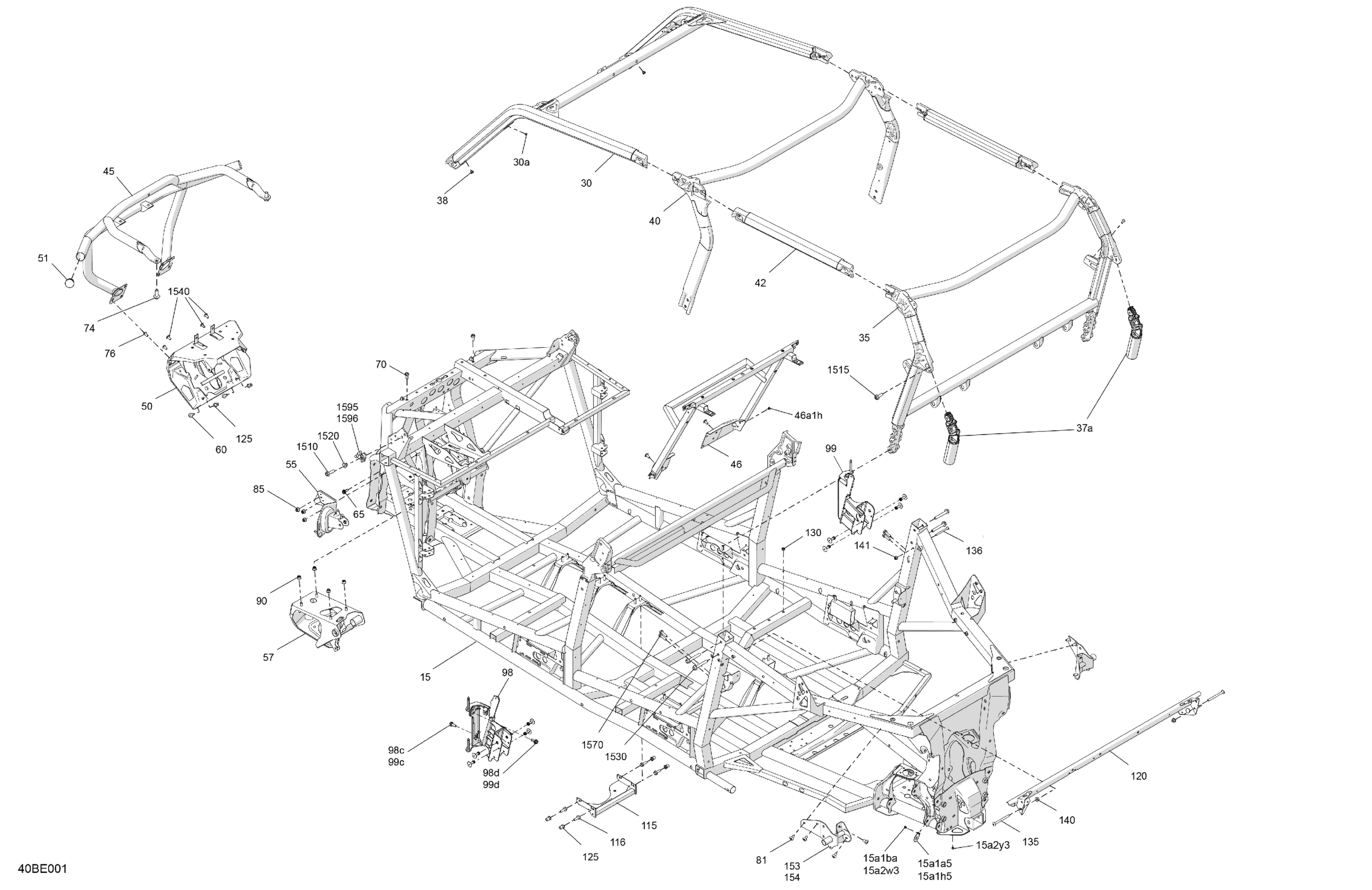

Can-Am Commander Max - 1000R EFI - XTP - 6CSB - Mineral Gray Satin - 64" Width, 2025 Frame - System Diagram

#

Description
Price

15

Black, Frame Kit Max | Includes 15 to 15a2y3

715009398

$3,359.99

15a1a5

Shim

705209479

$3.05

15a1h5

Shim

705209479

$3.05

15a1ba

Pop Rivet 3/16 X ,425

293150293

$0.26

15a2w3

Pop Rivet 3/16 X ,425

293150293

$0.26

15a2y3

Pop Rivet 3/16 X ,425

293150293

$0.26

30

Deep Black, Front Cage | Includes 30 to 30a

705211118

Unavailable

30a

Pop Rivet 3/16 X ,425

293150293

$0.26

35

Deep Black, Rear Cage

705211121

Unavailable

37a

Deep Black, Rear Cage Extension

705211494

$71.51

38

Insert Half Hex Body M6 x 1.0

250100199

$2.54

40

Mid Cage Max

703501203

$519.99

42

Deep Black, Cage Extension

705209848

$41.99

45

Orange Crush, Front Bumper

705212286

$469.97

46

Front Body Support | Includes 46 to 46a1h

705208893

$203.05

46a1h

Pop Rivet 3/16 X ,425

293150293

$0.26

50

Deep Black, Front Bumper

705209043

$474.58

51

Cap

705202455

$4.62

55

Brake Support

705206217

$50.74

57

DPS Support

705206294

$66.12

60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

65

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

70

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

74

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

76

Torx Truss Screw M8 X 16

250000746

$2.78

81

Torx Truss M/S M8 X 20

250000953

$1.74

85

Hex. Elastic Flange Nut M8

233281416

$1.25

90

Hex. Elastic Flange Nut M8

233281416

$1.25

98

LH Male Door Hinge Ass'y | Includes 98 to 98d

705211564

$444.58

98c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

98d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

99

RH Male Door Hinge Ass'y | Includes 99 to 99d

705211565

$444.58

99c

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

99d

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

115

Bearing Support

705211563

$45.35

116

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

120

Central Tube

705209434

$146.89

125

Insert Half Hex Body M8 x 1.25

293450307

$2.03

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Torx Truss M8 X 90

250000806

$6.15

136

Torx Screw M6 X 70

250000954

$1.56

140

Hex. Flange Nut

233081436

$1.63

141

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

153

LH Rear Open Carrier Anchorage

705210342

$95.35

154

RH Rear Open Carrier Anchorage

705210343

$95.35

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1515

Hex. Flange Screw M10 X 30 Scotch G.

207503056

$2.09

1520

Flange Elastic Nut M10

233201466

$2.63

1530

Hex. Flange Screw M10 X 70

207607056

$3.38

1540

Torx Truss Screw M8 X 16

250000746

$2.78

1570

Hex. Flange Screw M10 X 25

207502546

$1.74

1595

LH Front Anchorage

705209913

$35.35

1596

RH Front Anchorage

705209914

$35.35
