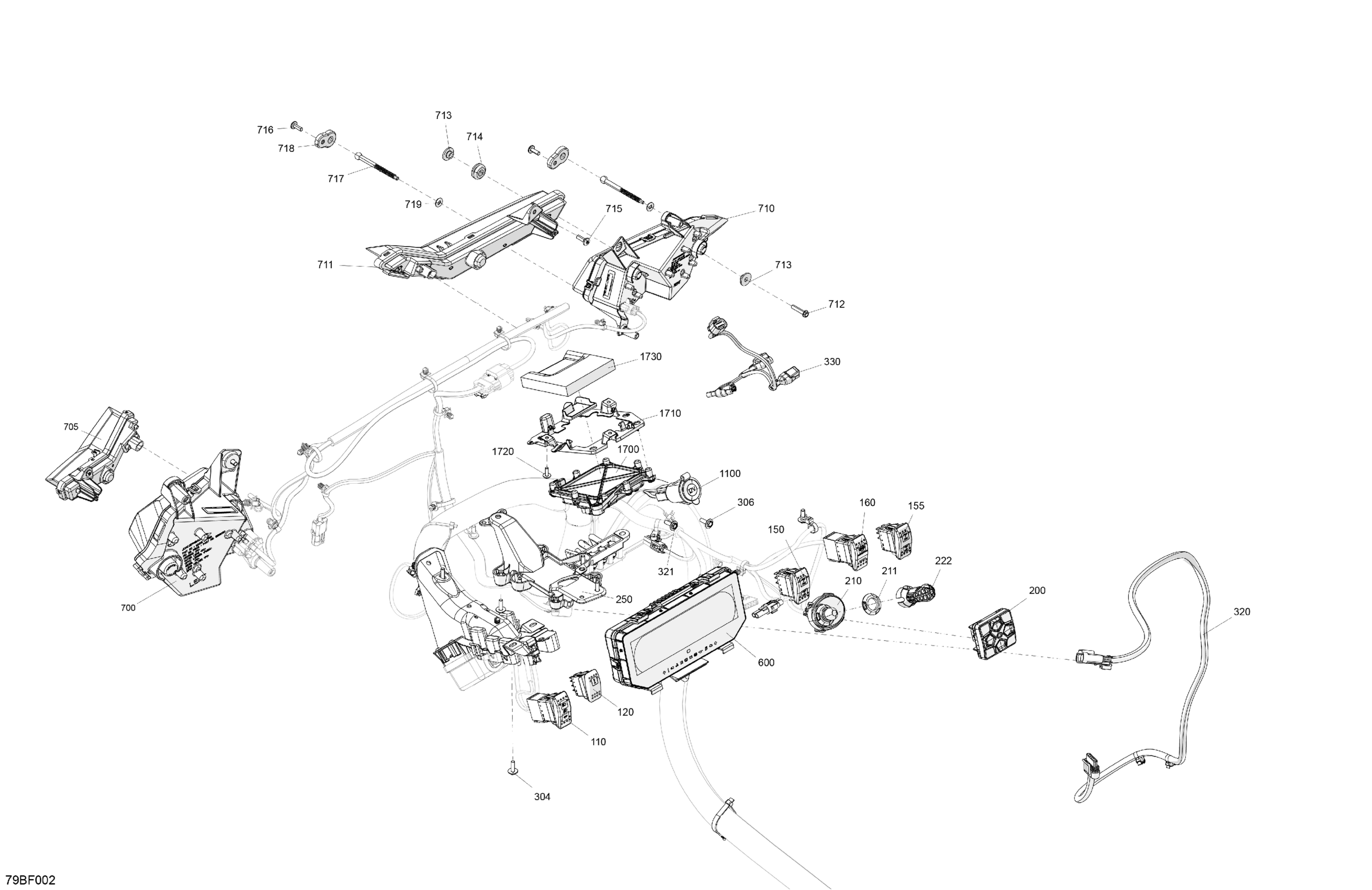

Can-Am Commander MAX - 1000R EFI - XMR - 6CTD - Dark Wildland Camo - 64" Width, 2026 Electric - Front Section Diagram

Description

Price

110

Light Switch

710004492

$47.49

120

Switch Winch

710002052

$28.49

150

Differential Switch

710006040

$31.99

155

Differential Lock Switch

710005470

$46.49

160

Differential Mode Switch

710006559

$31.99

200

Multifonction Switch

710006650

$87.99

210

Terminal DESS One Wire

515179305

$74.99

211

Specialized Nut

278004274

$3.28

214

Start-Stop Button | Not Shown

710005213

$60.49

222

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

250

Housing Support

710005672

$10.49

304

Screw PT Type K-50 X 16

250000959

$2.11

306

Screw PT Type K-50 X 16

250000959

$2.11

320

Trottle Pedal Harness

710005929

$239.99

321

Screw PT Type K-50 X 16

250000959

$2.11

330

Front Differential Wiring Harness

710006807

$49.99

600

MID Multifunction Gauge

710008295

$379.99

700

LH Front Auxiliary LED Light

710008811

$459.99

705

LH Auxiliary LED Headlight

710006374

$194.99

710

RH Front Auxiliary LED Light

710008812

$449.99

711

RH Auxiliary LED Headlight

710006375

$194.99

712

Torx Screw M5 X 20

250000724

$1.69

713

Shoulder Bushing

710004749

$2.69

714

Overmolded Grommet

293720130

$4.69

715

Screw PT Type K-50 X 16

250000959

$2.11

716

Hex. Flange Screw M5x10

207551056

$1.99

717

Ajustment Screw

710005837

$6.35

718

Ball Socket

293900157

$9.59

719

O-Ring

293300192

$4.92

1100

12V Power Outlet

710005374

$33.99

1700

Differential Module

710008842

$479.99

1710

FDM Support

710006104

$7.90

1720

Screw PT Type K-50 X 16

250000959

$2.11

1730

Protector Foam

710006580

$16.99
