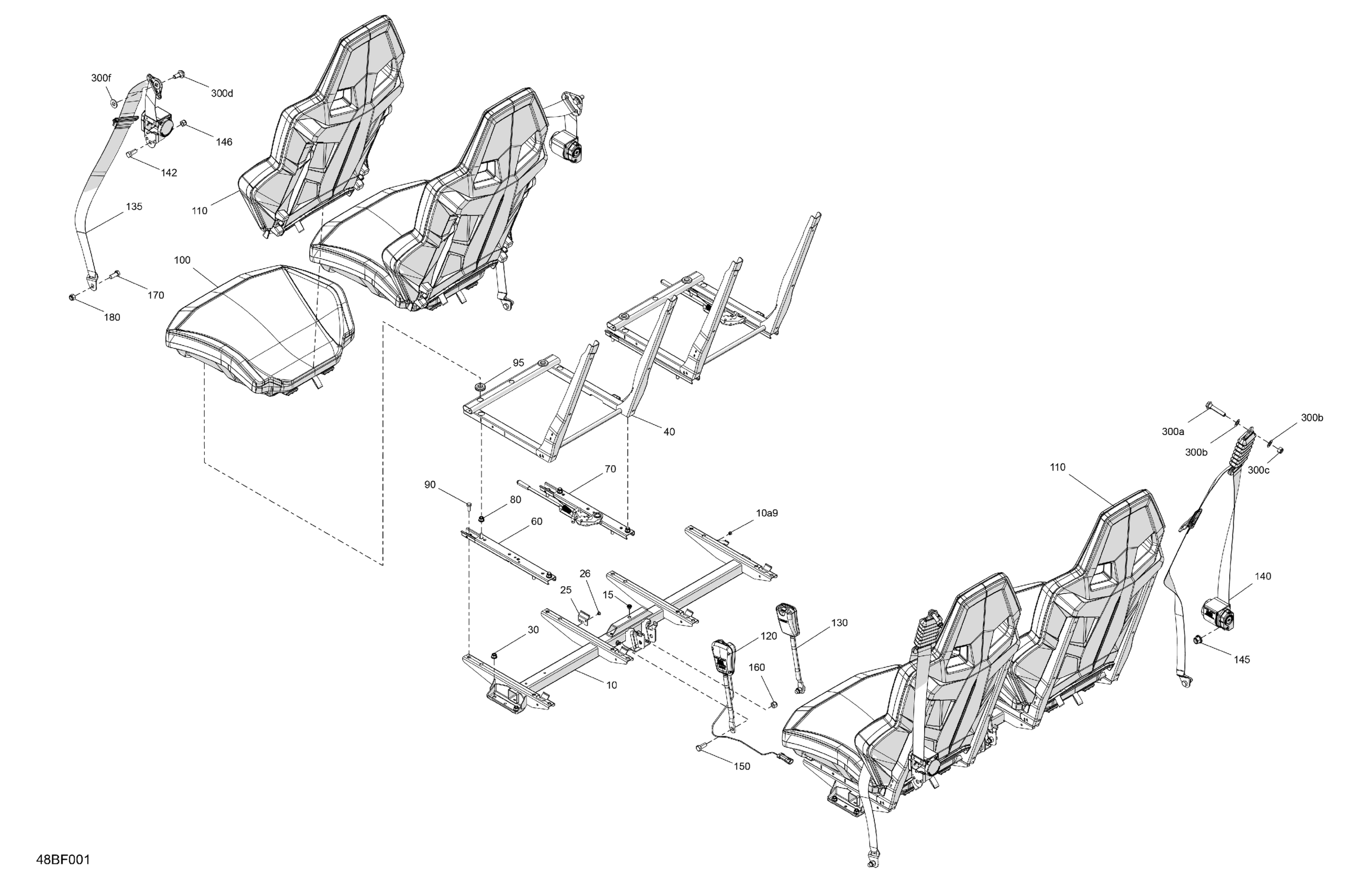

Can-Am Commander MAX - 1000R EFI - XMR - 6CTD - Dark Wildland Camo - 64" Width, 2026 Body - Seat Diagram

Description

Price

Seat Member | Includes 10 to 10a9

708003472

$379.99

10a9

Pop Rivet 3/16 X ,425

293150293

$0.35

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Seat Stopper

708003672

$2.59

Pop Rivet 3/16 X ,425

293150293

$0.35

Hex. Flange Elastic Nut M8

233281414

$1.47

Seat Frame

708002423

$329.99

LH Seat Rail

708003314

$52.99

RH Slide

708003316

$34.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Screw M8 X 20

207182044

$0.74

Grommet

517303756

$4.09

100

Cushion Ass'y

708003426

$249.99

110

LH Seat Base Kit

715005817

$339.99

110

RH Seat Base Kit

715005819

$339.99

120

Driver Buckle

708002331

$70.99

130

Passenger Buckle

708002329

$67.99

135

Safety Belt

708002835

$243.49

140

Safety Belt

708003378

$238.49

142

Hex. Cap Screw 7/16'' X 1''

250001316

$1.90

145

Elastic Flange Nut M12

233221416

$2.85

146

Lock Nut Nylon 7/16

250100183

$2.00

150

Hex. Cap Screw 7/16'' X 1''

250001316

$1.90

160

Lock Nut Nylon 7/16

250100183

$2.00

170

Hex. Cap Screw 7/16'' X 1''

250001316

$1.90

180

Lock Nut Nylon 7/16

250100183

$2.00

300a

Safet Belt Screw

708002443

$19.99

300b

Position Washer

708000891

$1.29

300c

Lock Nut Nylon 7/16

250100183

$2.00

300d

Safety Belt screw

708002504

$5.29

300f

Flat Washer M12

250200102

$2.11
