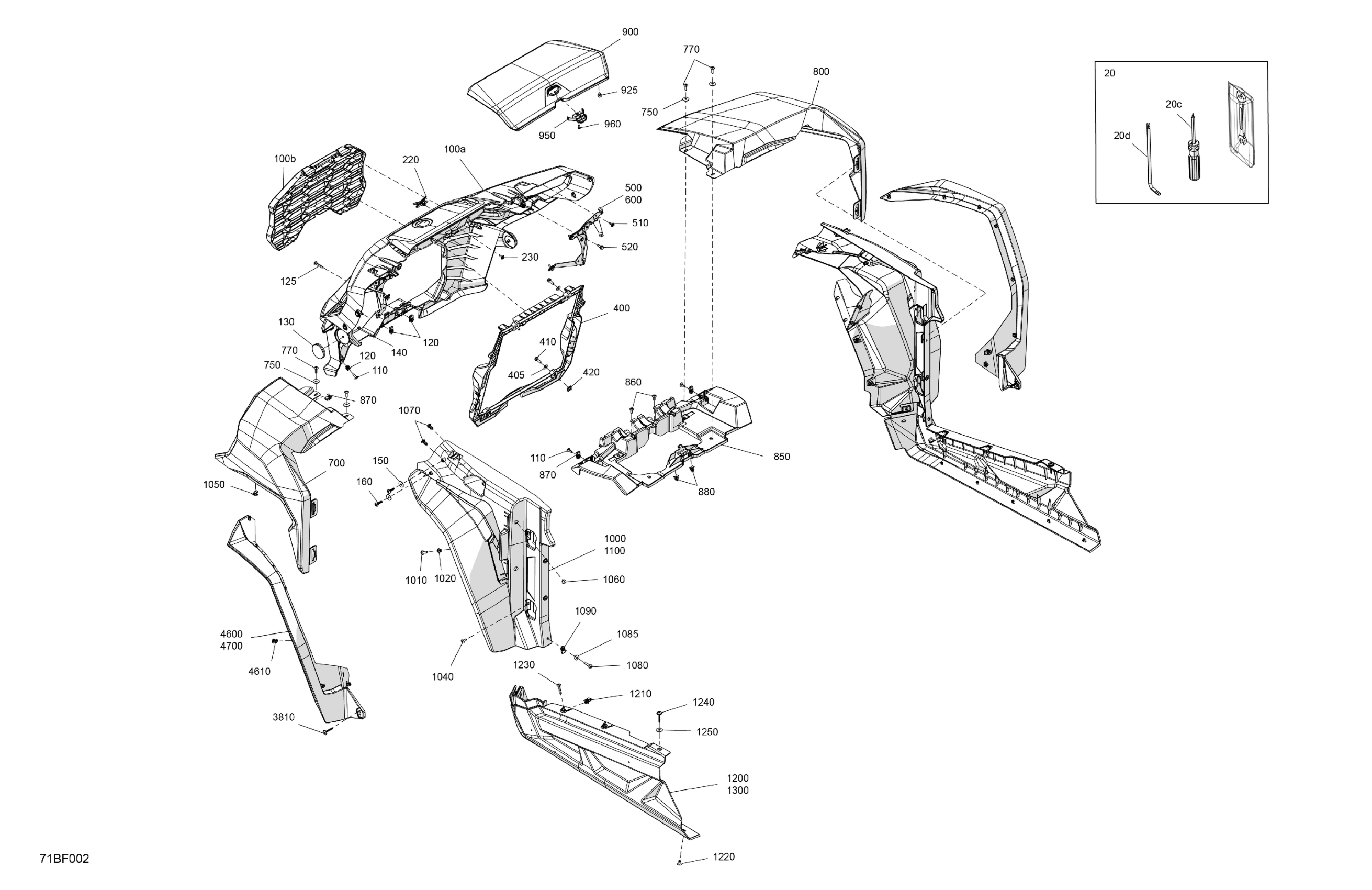

Can-Am Commander MAX - 1000R EFI - XMR - 6CTD - Dark Wildland Camo - 64" Width, 2026 Body - Front Section Diagram

#

Description
Price

20

Tool Kit | Includes 90 to 90f

704700182

$22.99

20c

Screw Driver

529000021

$3.99

20d

Torx Key T30

708200340

$9.22

100a

Front Fascia

705015069

$213.05

100b

Grille

705015071

$200.74

110

Torx Truss Screw M6 X 16

250000721

$1.39

120

Panel Nut M6 X 1.0

250100198

$1.73

125

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

130

Amber Reflector

705017809

$12.32

140

Elastic Flange Nut M5

233251494

$1.74

150

Flat Washer M6.6 X 22

250200162

$1.91

160

Hex. Screw Pt K60 X 25

250000980

$1.74

220

Emblem X

705017646

$10.98

230

Screw M4 X 16

250000725

$2.87

400

Front Radiator Deflector

705015160

$50.74

405

Flat Washer 6 mm

234062410

$0.64

410

Hex. Flange Screw M6 X 20

207662044

$1.66

420

Panel Nut M6 X 1.0

250001173

$1.51

500

LH Headlight Support

705015072

$203.05

510

Screw PT Type K-50 X 16

250000959

$1.74

520

Hex. Flange Screw M6 X 16

207661644

$0.61

600

RH Headlight Support

705015073

$203.05

700

Dark Wildland Camo, LH Front Fender

705019736

$285.35

750

Flat Washer M6.6 X 22

250200162

$1.91

770

Torx Screw M6 X 20

250000722

$1.34

800

Dark Wildland Camo, RH Front Fender

705019737

$285.35

850

Front Multi Purpose Support

705015163

$40.74

860

Torx Truss Screw M6 X 16

250000721

$1.39

870

Panel Nut M6 X 1.0

250100198

$1.73

880

Clip

517306478

$1.37

900

Hood

705016440

$96.12

925

Rubber Bumper

293830005

$5.33

950

Glove Box Latch

264000133

$15.57

960

Screw K40 X 10

250001119

$1.64

1000

LH Front Mud Guard

705015060

$55.35

1010

Torx Screw M6 X 20

250000712

$1.74

1020

Hex. Flange Elastic Nut M6

233261494

$1.26

1040

Torx Truss Screw M6 X 16

250000721

$1.39

1050

Clip

517306478

$1.37

1060

Black, Dart 10 mm

293730060

$4.42

1070

Tuflok Plastic Rivet

293150230

$1.21

1080

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

1085

Stainless Steel Flat Washer

234062670

$1.74

1090

Panel Nut M6 X 1.0

250100198

$1.73

1100

RH Front Mud Guard

705015061

$55.35

1200

LH Front Rocker Panel

705019026

$78.43

1210

Panel Nut M6 X 1.0

250100198

$1.73

1220

Black, Ornit Rivet 3/16 X ,925 This part replaces 293150307.

293150307

$2.06

1230

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

1240

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

1250

Flat Washer M6.6 X 22

250200162

$1.91

1300

RH Front Rocker Panel

705019027

$78.43

3810

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

4600

LH Front Extended Mud Guard

705015080

$55.35

4610

Tuflok Plastic Rivet

293150230

$1.21

4700

RH Front Extended Mud Guard

705015081

$55.35
