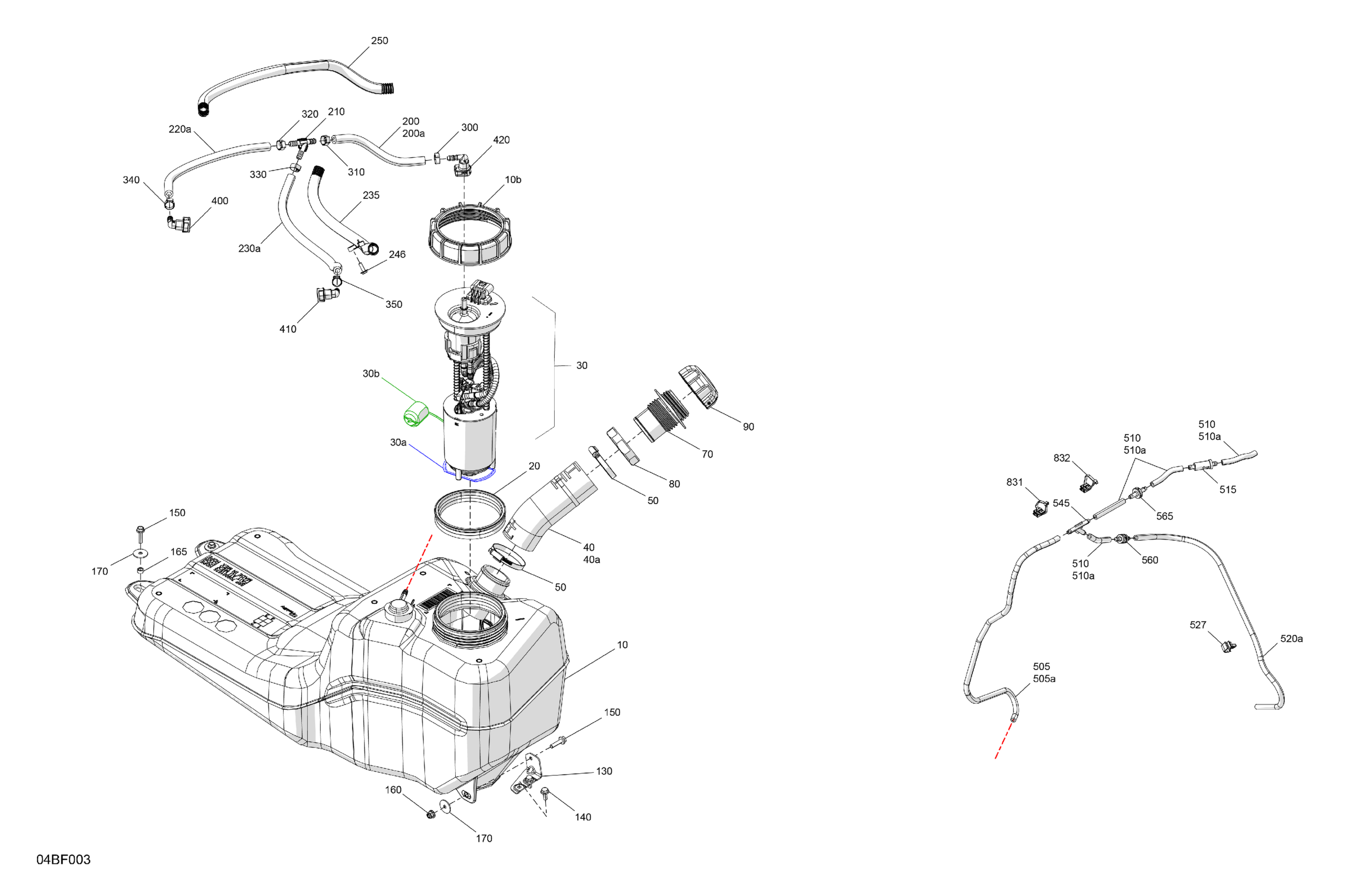

Can-Am Commander MAX - 1000R EFI - XMR - 6CTD - Dark Wildland Camo - 64" Width, 2026 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 10 to 10b

709001674

$379.07

10b

Special Nut M130

250100062

$20.12

20

Pump Gasket

293250514

$17.88

30

Fuel Pump | Includes 30 to 30b

709001056

$353.87

30a

Fuel Filter

270600113

$31.31

30b

Fuel Sender

715900424

$130.57

40

Filler Neck Hose Ass'y | Includes 40 to 40a

709001703

$79.82

40a

Filler Neck Hose

709001700

$70.87

50

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Fuel Filler Neck Nut

293600206

$11.51

90

Fuel Cap

709000868

$29.07

130

Fuel Tank Support

709001453

$5.21

140

Hex. Flange Screw M6 X 16

207661644

$0.70

150

Hex. Flange Screw M6 X 25

207662554

$1.43

160

Hex. Flange Elastic Nut M6

233261466

$1.91

165

Spacer

293900135

$1.04

170

Washer M6

250200029

$1.78

200

Hose 7,94 MM ID

219704621

$81.31

200a

Not Available As Spare Parts

XXX

Unavailable

210

Y Fitting

709001329

$9.85

220a

Hose 7,94 MM ID

219704621

$81.31

230a

Hose 7,94 MM ID

219704621

$81.31

235

Tubing 16 Mm 1000Mm Long

219704408

$7.15

246

Screw PT Type K-50 X 16

250000959

$2.00

250

Tubing 16 Mm 1000Mm Long

219704408

$7.15

300

Crimp Clamp, 15.3-706R

293650047

$3.03

310

Crimp Clamp, 15.3-706R

293650047

$3.03

320

Crimp Clamp, 15.3-706R

293650047

$3.03

330

Crimp Clamp, 15.3-706R

293650047

$3.03

340

Crimp Clamp, 15.3-706R

293650047

$3.03

350

Crimp Clamp, 15.3-706R

293650047

$3.03

400

Quick Disconnect

275500921

$14.48

410

Quick Disconnect

275500921

$14.48

420

Quick Disconnect

275500921

$14.48

505

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

505a

Not Available As Spare Parts

XXX

Unavailable

510

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

510a

Not Available As Spare Parts

XXX

Unavailable

515

Filter

709001120

$7.48

520a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

527

Tie Rap Mount (screwable)

515176795

$4.96

545

Y-Fitting

293710059

$9.40

560

Check Valve

513034263

$29.07

565

Check Valve This part replaces 275500087.

275501246

Unavailable

831

Tie Wrap

293750108

$7.25

832

Tie Wrap

293750108

$7.25
