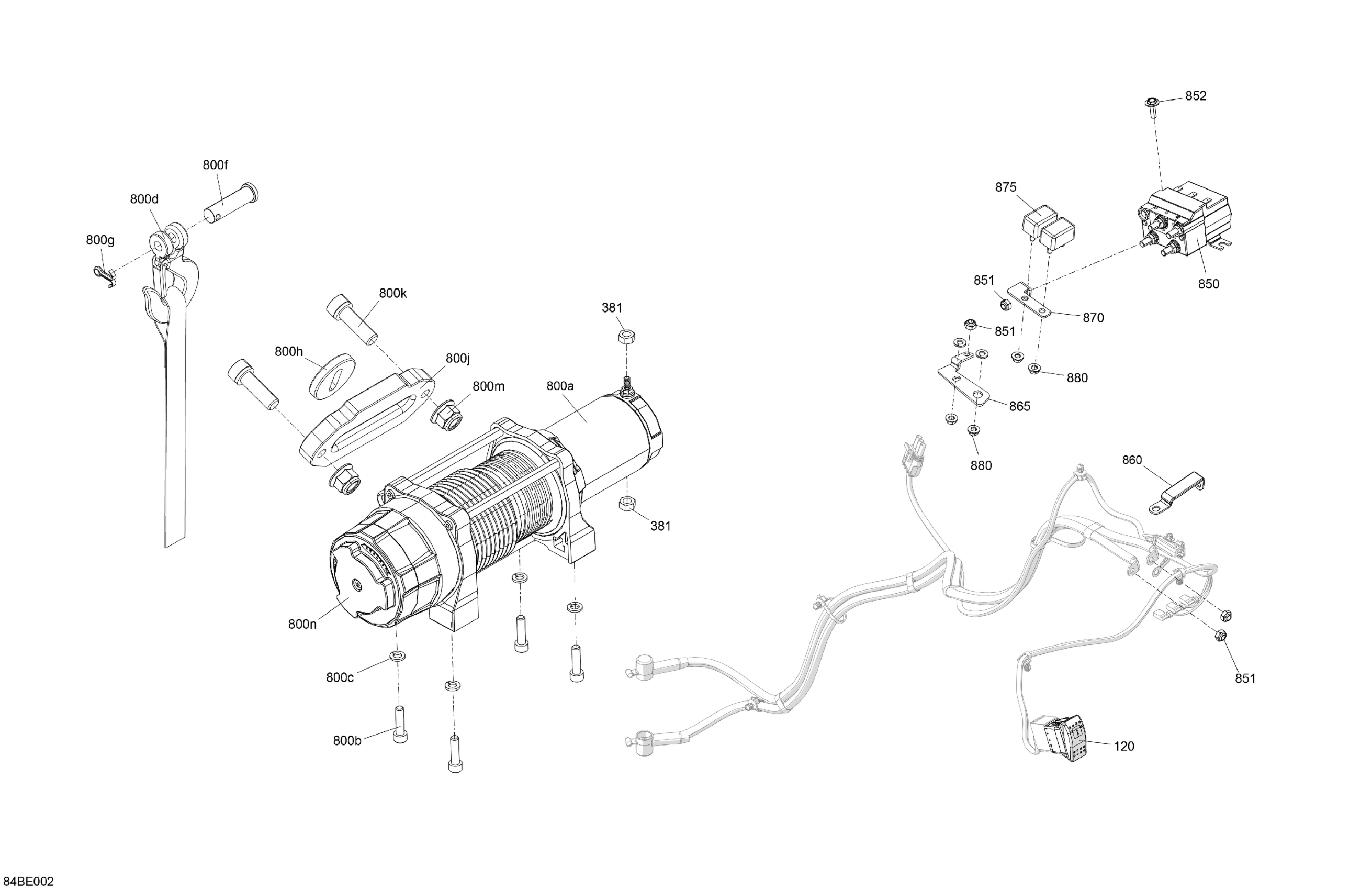

Can-Am Commander Max - 1000R EFI - XMR - 6CSD - Wildland Camo - 64" Width, 2025 Electric - Winch Diagram

Description

Price

120

Switch Winch

710002052

$28.92

381

Elastic Stop Nut M6, Brass

232561200

$3.51

800a

Elastic Stop Nut M6

232561434

$1.55

800b

Socket Head Screw M8 X 30

205083044

$0.92

800c

Lock Washer 8 mm

234181401

$0.89

800d

Winch Hook Kit

705014949

$27.66

800f

Winch Hook Kit

705014949

$27.66

800g

Winch Hook Kit

705014949

$27.66

800h

Stopper

710007028

$10.18

800j

Winch Rope Guide Kit

715006426

$59.97

800k

Socket Screw M10 x 30 | XT

205003044

$2.61

800m

Hex. Flange Elastic Nut M10

233201414

$1.26

800n

Electric Winch

710006990

$738.43

850

Solenoid

710006991

$59.97

851

Elastic Stop Nut M6, Brass

232561200

$3.51

852

Screw PT Type K-50 X 16

250000959

$1.74

860

Power Bar

710004772

$11.98

865

Power Bar

710004872

$11.98

870

Power Bar

710004873

$11.98

875

Circuit Breaker 50 Amp

710007039

$18.43

880

Flange Elastic Nut M5

233251434

$1.66
